Rear Fuse And Relay Box Wiring Diagram - PE54.15-P-2103-97FBG
Model 205 as of model year 2019 Control unit K40/5, sheet 2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| A6/1 | Stationary heater radio remote control receiver | 15L |
| Code 221 | Fully electric driver seat adjustment without memory without electric head restraint adjustment | 28J |
| Code 221 | Fully electric driver seat adjustment without memory without electric head restraint adjustment | 31J |
| Code 222 | Electrically adjustable right front seat | 31J |
| Code 222 | Electrically adjustable right front seat | 29J |
| Code 242 | All-electric front passenger seat with memory (right) | 29J |
| Code 242 | All-electric front passenger seat with memory (right) | 31J |
| Code 275 | Memory package | 31J |
| Code 275 | Memory package | 29J |
| Code 403 | AIRSCARF system | 35J |
| Code 409 | Multicontour seat package | 27J |
| Code 409 | Multicontour seat package | 26J |
| Code 467 | Electronic locking differential | 20J |
| Code 550 | Trailer hitch | 41J |
| Code 872 | Seat heater in rear passenger compartment | 34J |
| Code 965 | Taxi/rental car - Pre-installation | 22J |
| Code 965 | Taxi/rental car - Pre-installation | 50J |
| Code 970 | Police emergency vehicles | 23J |
| Code 970 | Police emergency vehicles | 48J |
| Code 974 | Fire department lead emergency vehicle preinstallation | 23J |
| Code 974 | Fire department lead emergency vehicle preinstallation | 48J |
| Code 975 | Emergency physician vehicle preinstallation | 23J |
| Code 975 | Emergency physician vehicle preinstallation | 48J |
| Code B24 | Radio remote control for stationary heater | 15J |
| Code B63 | AMG eSound | 13J |
| Code M177 | SPARK-IGNITION ENGINE M177 | 11J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 16J |
| Code P65 | Seating comfort package | 32J |
| Code P65 | Seating comfort package | 29J |
| Code Z97 | Electronic interface | 52J |
| Code Z97 | Electronic interface | 49A |
| F32/4 | Vehicle interior prefuse box | 3L |
| F32/4f7 | Fuse 7 | 1K |

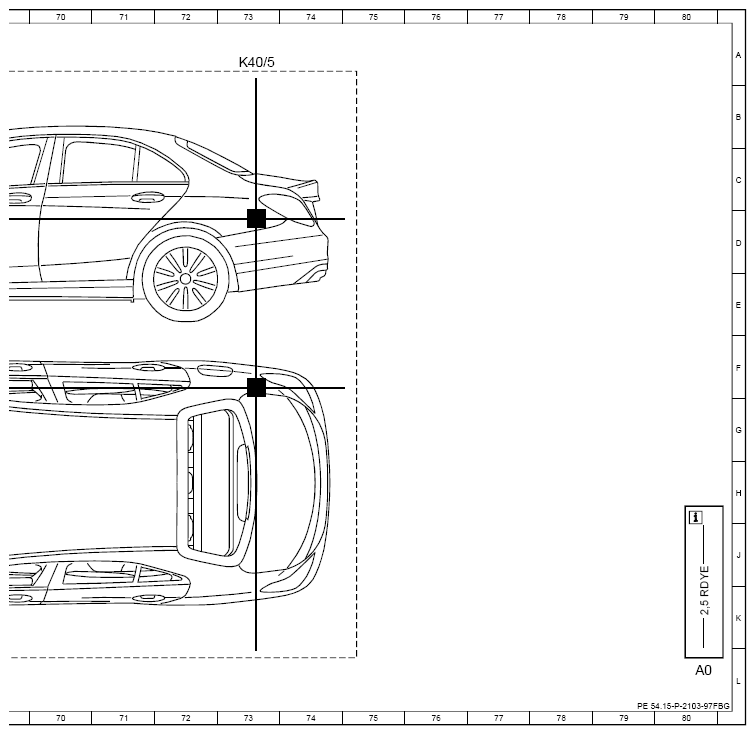

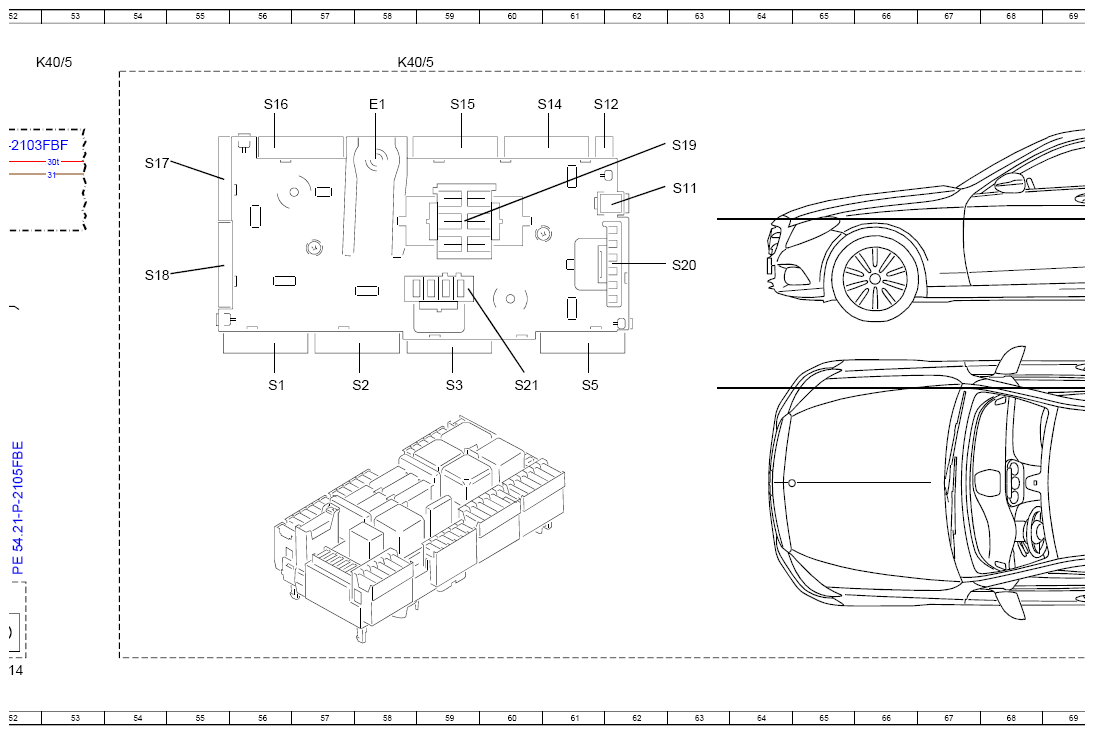

| K40/5 | Rear fuse and relay module | 4A |
| K40/5 | Rear fuse and relay module | 11A |
| K40/5 | Rear fuse and relay module | 21A |
| K40/5 | Rear fuse and relay module | 27A |
| K40/5 | Rear fuse and relay module | 36A |
| K40/5 | Rear fuse and relay module | 44A |
| K40/5 | Rear fuse and relay module | 53A |
| K40/5 | Rear fuse and relay module | 58A |
| K40/5 | Rear fuse and relay module | 73A |

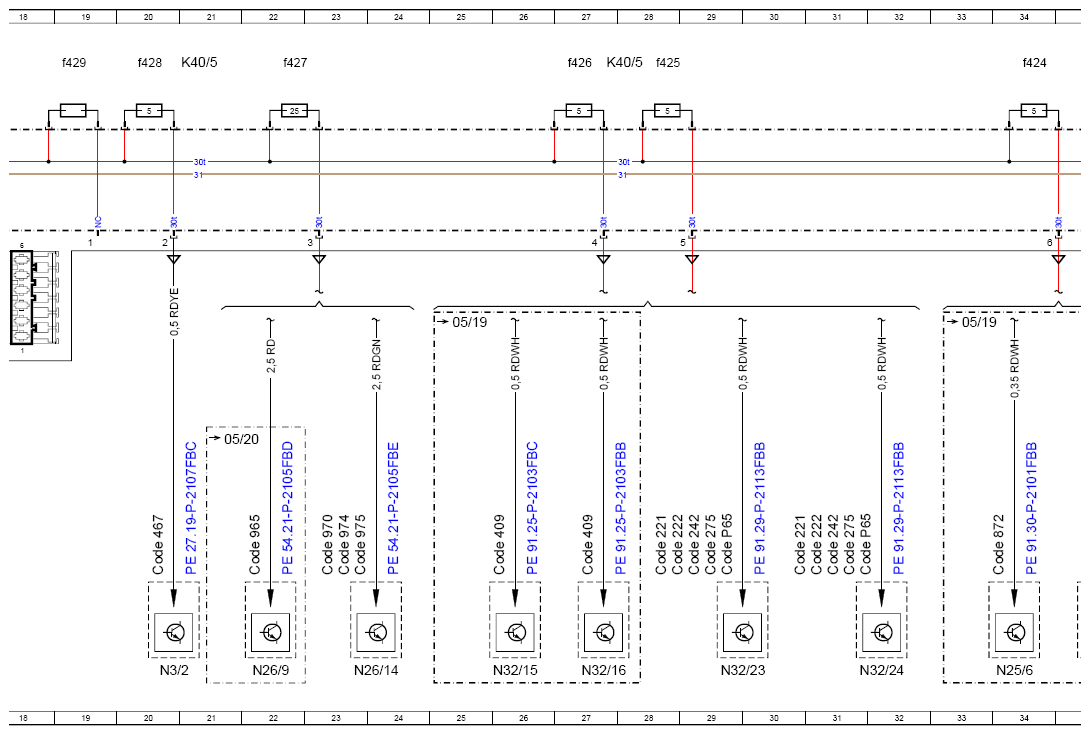

| K40/5f424 | Fuse 424 | 34A |
| K40/5f425 | Fuse 425 | 28A |
| K40/5f426 | Fuse 426 | 27A |
| K40/5f427 | Fuse 427 | 22A |
| K40/5f428 | Fuse 428 | 20A |
| K40/5f429 | Fuse 429 | 19A |

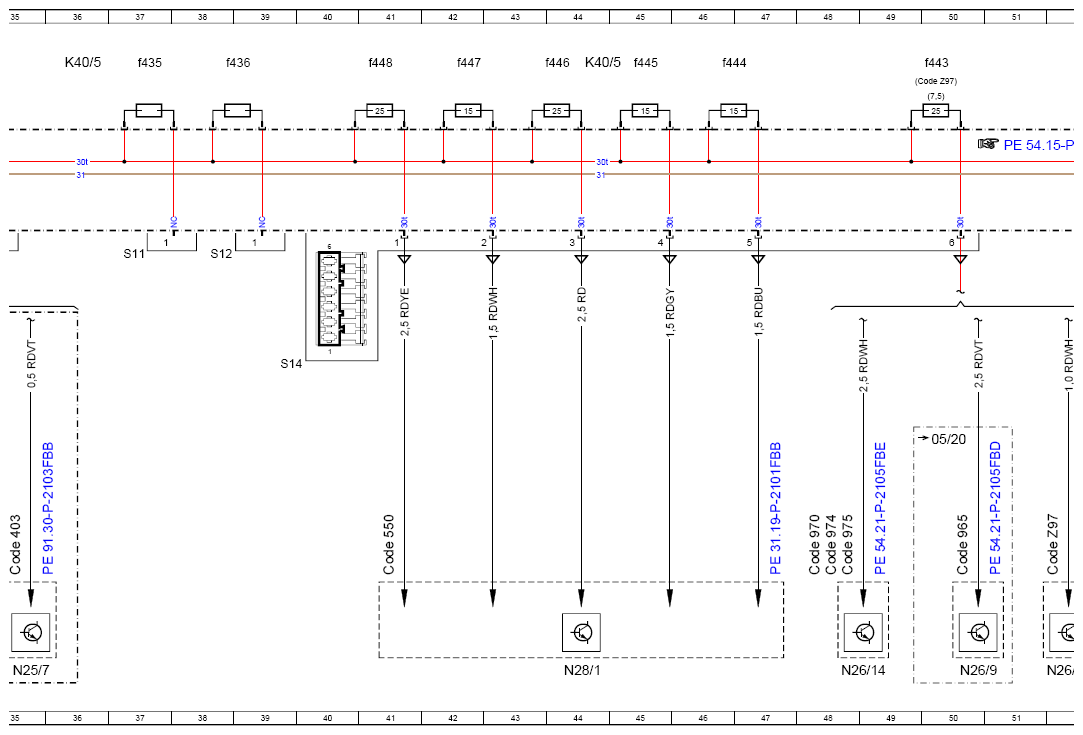

| K40/5f435 | Fuse 435 | 37A |
| K40/5f436 | Fuse 436 | 38A |
| K40/5f443 | Fuse 443 | 50A |
| K40/5f444 | Fuse 444 | 46A |
| K40/5f445 | Fuse 445 | 45A |
| K40/5f446 | Fuse 446 | 44A |
| K40/5f447 | Fuse 447 | 42A |
| K40/5f448 | Fuse 448 | 41A |

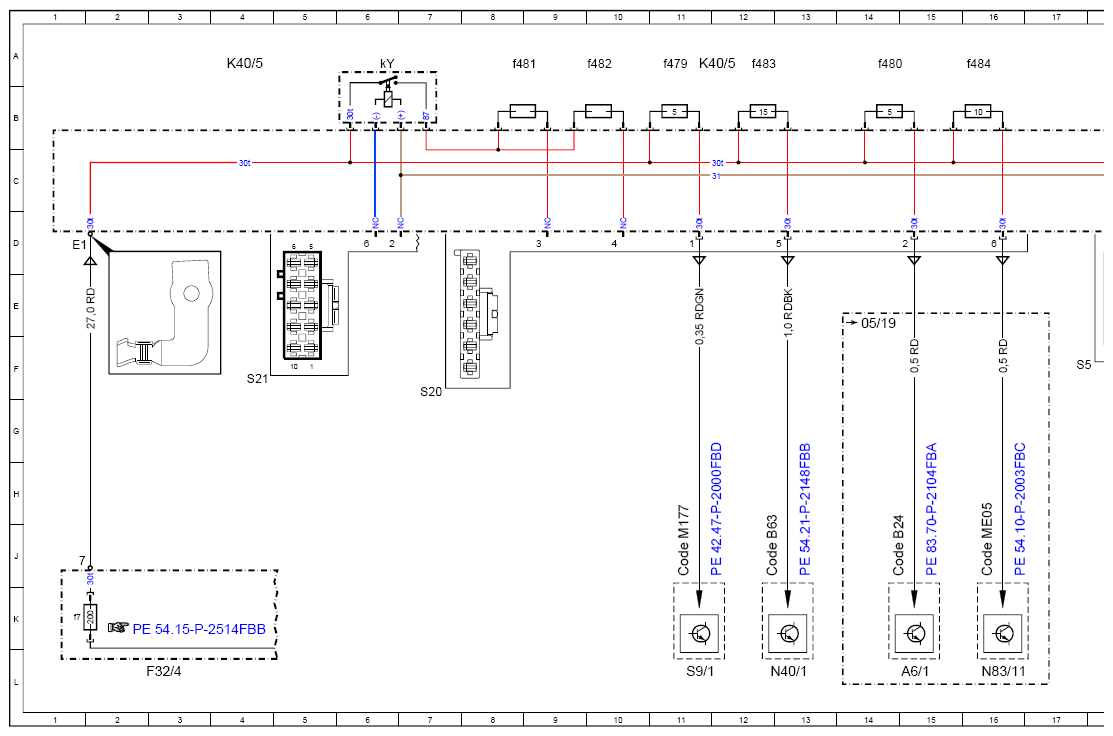

| K40/5f479 | Fuse 479 | 11A |
| K40/5f480 | Fuse 480 | 14A |
| K40/5f481 | Fuse 481 | 8A |
| K40/5f482 | Fuse 482 | 10A |
| K40/5f483 | Fuse 483 | 12A |
| K40/5f484 | Fuse 484 | 16A |
| K40/5kY | Backup relay | 6A |
| N25/6 | Rear seat heaters control unit | 34L |
| N25/7 | AIRSCARF control unit | 35L |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 23L |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 52L |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 48L |
| N26/9 | Special-purpose vehicle multifunction control unit | 22L |
| N26/9 | Special-purpose vehicle multifunction control unit | 50L |
| N28/1 | Trailer recognition control unit | 44L |
| N3/2 | Electronic differential control unit | 20L |
| N32/15 | Left front multicontour seat control unit | 26L |
| N32/16 | Right front multicontour seat control unit | 27L |
| N32/23 | Driver's seat lumbar support electropneumatic controller unit | 29L |
| N32/24 | Front passenger seat lumbar support electropneumatic controller unit | 32L |
| N40/1 | Engine sound control unit | 13L |
| N83/11 | Alternating current charger for high-voltage battery | 16L |
| S9/1 | Stop lamp switch | 11L |
