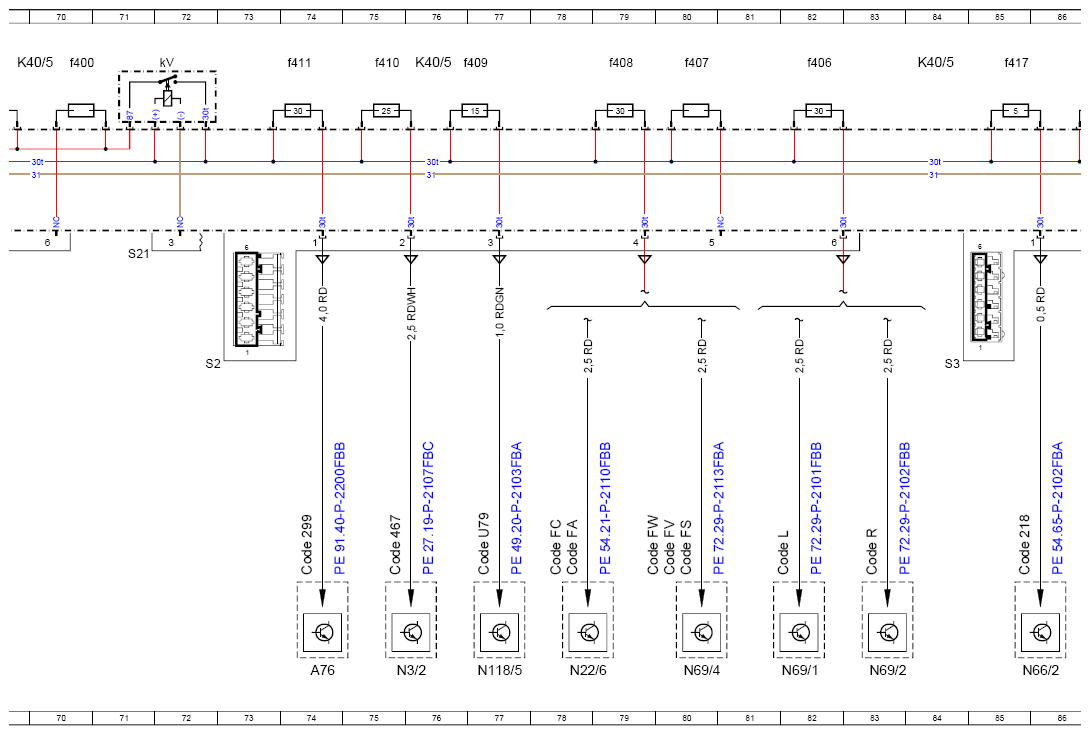

Rear Fuse And Relay Box Wiring Diagram - PE54.15-P-2103-97FBF
Model 205 as of model year 2019 Control unit K40/5, sheet 1
| Code: | Designation: | Position: |
|---|---|---|

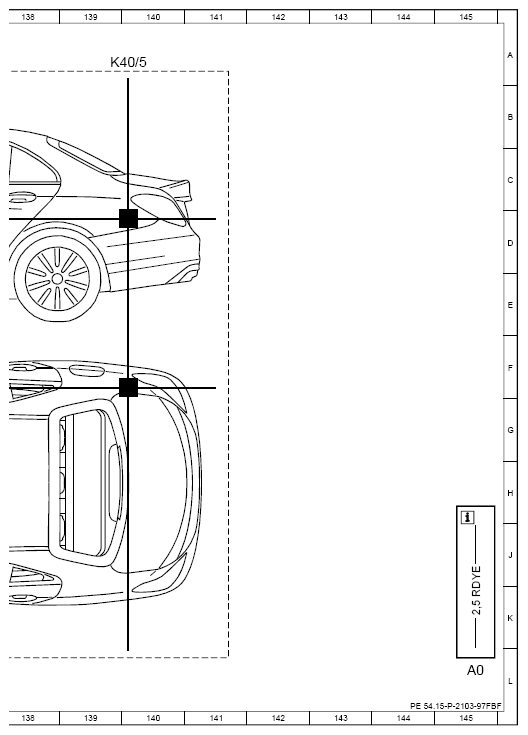

| A0 | Use of wiring diagrams | 145L |
| A50/1 | Mirror taximeter | 103L |
| A6/1 | Stationary heater radio remote control receiver | 38L |
| A76 | Left front reversible emergency tensioning retractor | 74L |
| A76/1 | Right front reversible emergency tensioning retractor | 95L |
| C3 | Rear window interference suppression capacitor | 12L |
| Code 218 | Backup camera | 85J |
| Code 233 | AUTONOMOUS INTELLIGENT CRUISE CONTROL PLUS | 108J |
| Code 299 | PRE-SAFE® | 74J |
| Code 299 | PRE-SAFE® | 95J |
| Code 301 | Smoker's package | 47J |
| Code 403 | AIRSCARF system | 99J |
| Code 403 | AIRSCARF system | 117J |
| Code 409 | Multicontour seat package | 114J |
| Code 409 | Multicontour seat package | 113J |
| Code 460 | Canada version | 48J |
| Code 467 | Electronic locking differential | 75J |
| Code 475 | Tire pressure monitor | 87J |
| Code 494 | USA version | 48J |
| Code 810 | Sound system | 29J |
| Code 853 | Midline sound system | 28J |
| Code 865 | TV tuner | 90J |
| Code 866 | Rear entertainment preinstallation | 51J |
| Code 871 | Sensor system for trunk lid opening/closing | 111J |
| Code 872 | Seat heater in rear passenger compartment | 100J |
| Code 872 | Seat heater in rear passenger compartment | 116J |
| Code 881 | Remote trunk closing | 26H |
| Code 890 | EASY-PACK liftgate | 24H |
| Code 897 | Wireless mobile phone charging | 48J |
| Code 899 | Wireless phone charging at front and antenna | 49J |
| Code 965 | Taxi/rental car - Pre-installation | 103J |
| Code 965 | Taxi/rental car - Pre-installation | 101A |
| Code 970 | Police emergency vehicles | 104J |
| Code 970 | Police emergency vehicles | 101A |
| Code 974 | Fire department lead emergency vehicle preinstallation | 104J |
| Code 974 | Fire department lead emergency vehicle preinstallation | 101B |
| Code 975 | Emergency physician vehicle preinstallation | 105J |
| Code 975 | Emergency physician vehicle preinstallation | 101B |
| Code B01 | 48V technology | 91J |
| Code B24 | Radio remote control for stationary heater | 38J |
| Code B63 | AMG eSound | 39J |
| Code FA | CABRIOLET | 23J |
| Code FA | CABRIOLET | 15E |
| Code FA | CABRIOLET | 78J |
| Code FA | CABRIOLET | 101J |
| Code FA | CABRIOLET | 99J |
| Code FC | COUPE | 11F |
| Code FC | COUPE | 23J |
| Code FC | COUPE | 26J |
| Code FC | COUPE | 78J |
| Code FC | COUPE | 101J |
| Code FS | STATION WAGON | 24J |
| Code FS | STATION WAGON | 11F |
| Code FS | STATION WAGON | 80J |
| Code FV | LONG SEDAN | 26J |
| Code FV | LONG SEDAN | 11F |
| Code FV | LONG SEDAN | 80J |
| Code FV | LONG SEDAN | 100J |
| Code FW | SEDAN | 26J |
| Code FW | SEDAN | 11E |
| Code FW | SEDAN | 80J |
| Code L | LEFT-HAND DRIVE | 82J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 40J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 93J |
| Code P21 | AIR-BALANCE package | 88J |
| Code P65 | Seating comfort package | 62J |
| Code P65 | Seating comfort package | 65J |
| Code P65 | Seating comfort package | 61J |
| Code P65 | Seating comfort package | 64J |
| Code R | RIGHT-HAND DRIVE | 83J |
| Code U63 | Driving school package | 53J |
| Code U63 | Driving school package | 51A |
| Code U67 | 230 V socket in interior compartment | 66J |
| Code U67 | 230 V socket in interior compartment | 106J |
| Code U68 | Active engine sound generator | 110J |
| Code U79 | BLUETEC (SCR) diesel exhaust treatment Generation 3 | 30J |
| Code U79 | BLUETEC (SCR) diesel exhaust treatment Generation 3 | 77J |
| F32/4 | Vehicle interior prefuse box | 3L |
| F32/4f7 | Fuse 7 | 1K |
| G1/3 | 48 V on-board electrical system battery | 91L |

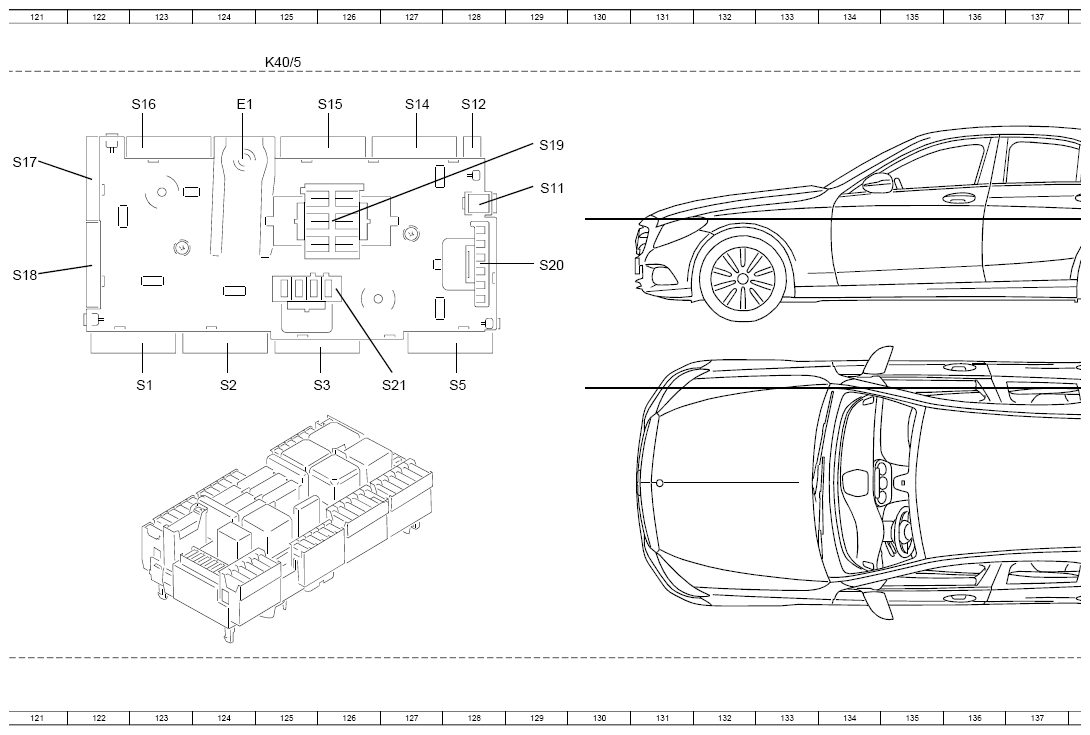

| K40/5 | Rear fuse and relay module | 4A |
| K40/5 | Rear fuse and relay module | 12A |
| K40/5 | Rear fuse and relay module | 20A |
| K40/5 | Rear fuse and relay module | 27A |
| K40/5 | Rear fuse and relay module | 35A |
| K40/5 | Rear fuse and relay module | 44A |
| K40/5 | Rear fuse and relay module | 54A |
| K40/5 | Rear fuse and relay module | 60A |
| K40/5 | Rear fuse and relay module | 69A |
| K40/5 | Rear fuse and relay module | 76A |
| K40/5 | Rear fuse and relay module | 84A |
| K40/5 | Rear fuse and relay module | 93A |
| K40/5 | Rear fuse and relay module | 100A |
| K40/5 | Rear fuse and relay module | 107A |
| K40/5 | Rear fuse and relay module | 117A |
| K40/5 | Rear fuse and relay module | 125A |
| K40/5 | Rear fuse and relay module | 139A |
| K40/5f400 | Fuse 400 | 70A |
| K40/5f401 | Fuse 401 | 69A |
| K40/5f402 | Fuse 402 | 68A |

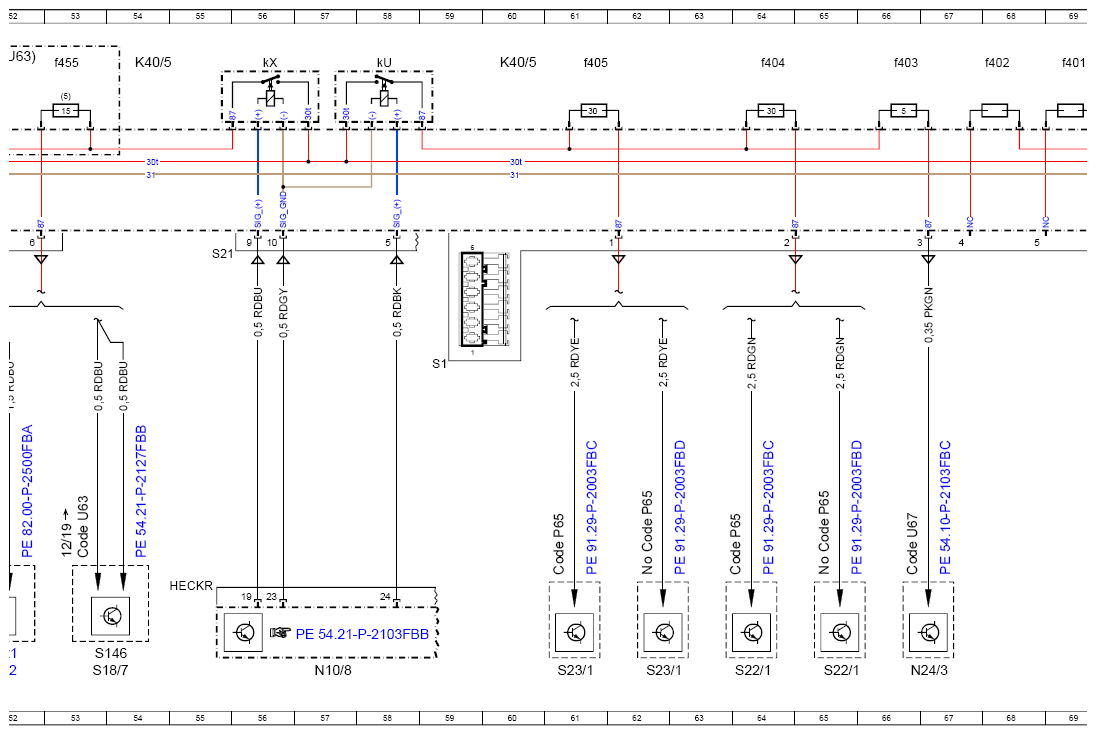

| K40/5f403 | Fuse 403 | 66A |
| K40/5f404 | Fuse 404 | 64A |
| K40/5f405 | Fuse 405 | 61A |
| K40/5f406 | Fuse 406 | 82A |
| K40/5f407 | Fuse 407 | 80A |
| K40/5f408 | Fuse 408 | 79A |
| K40/5f409 | Fuse 409 | 77A |
| K40/5f410 | Fuse 410 | 75A |
| K40/5f411 | Fuse 411 | 74A |

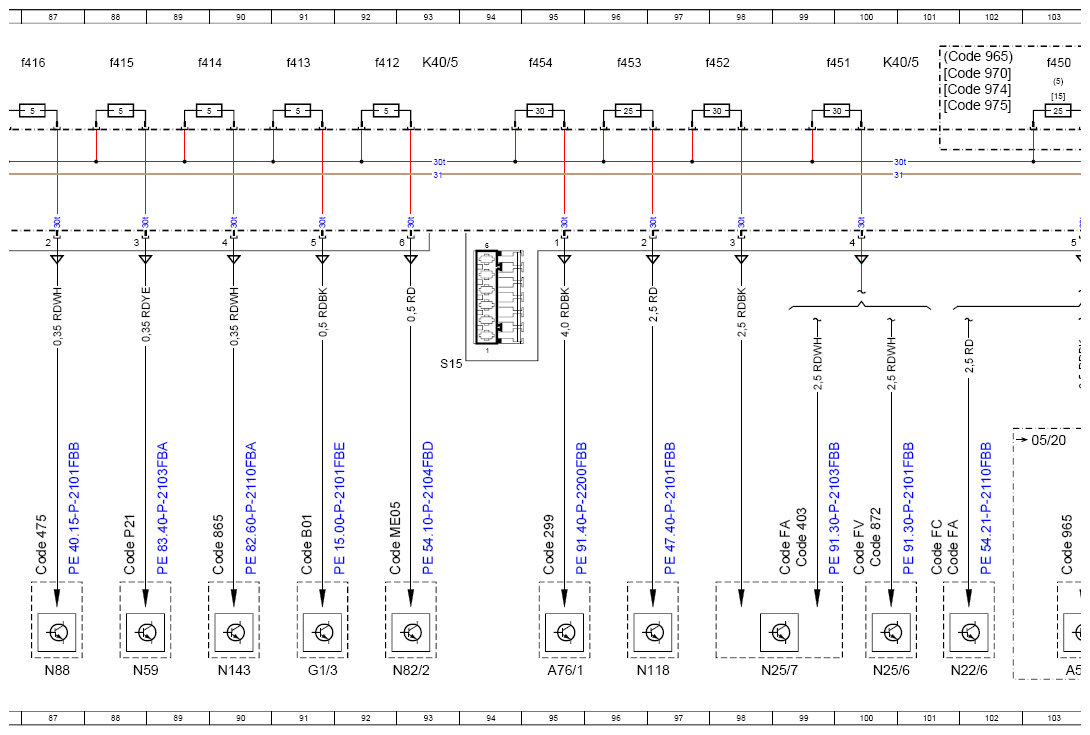

| K40/5f412 | Fuse 412 | 92A |
| K40/5f413 | Fuse 413 | 91A |
| K40/5f414 | Fuse 414 | 89A |
| K40/5f415 | Fuse 415 | 88A |
| K40/5f416 | Fuse 416 | 87A |
| K40/5f417 | Fuse 417 | 85A |

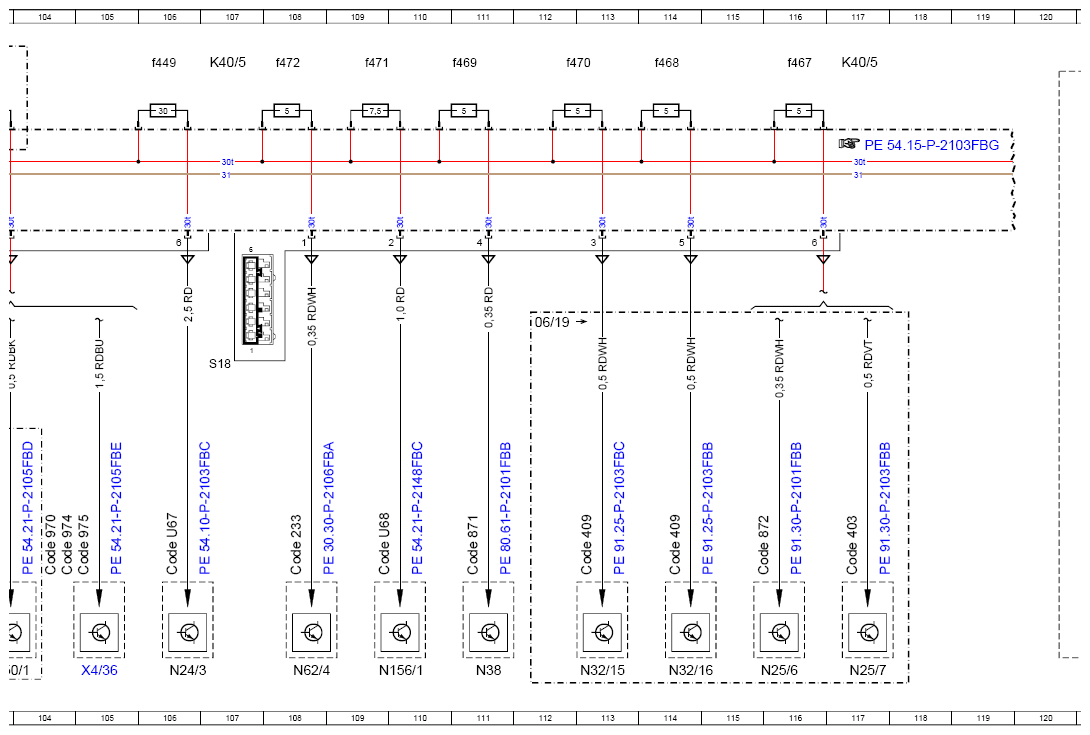

| K40/5f449 | Fuse 449 | 106A |
| K40/5f450 | Fuse 450 | 103A |
| K40/5f451 | Fuse 451 | 99A |
| K40/5f452 | Fuse 452 | 98A |
| K40/5f453 | Fuse 453 | 96A |
| K40/5f454 | Fuse 454 | 95A |
| K40/5f455 | Fuse 455 | 53A |
| K40/5f456 | Fuse 456 | 50A |

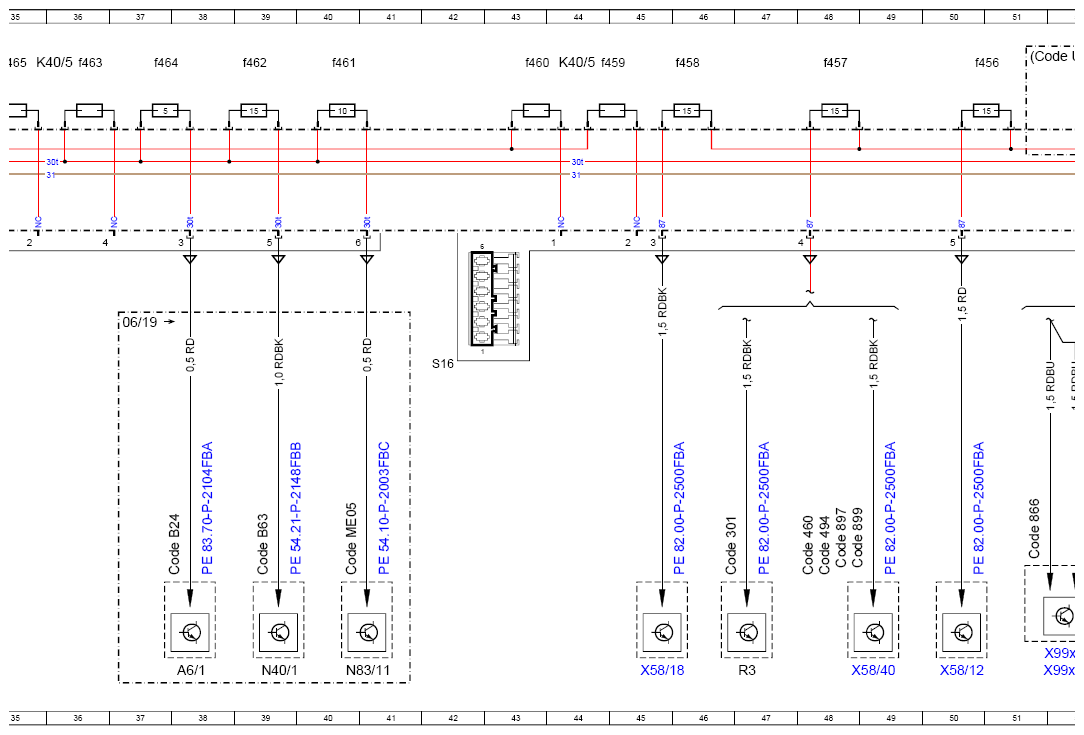

| K40/5f457 | Fuse 457 | 48A |
| K40/5f458 | Fuse 458 | 46A |
| K40/5f459 | Fuse 459 | 44A |
| K40/5f460 | Fuse 460 | 43A |
| K40/5f461 | Fuse 461 | 40A |
| K40/5f462 | Fuse 462 | 39A |
| K40/5f463 | Fuse 463 | 36A |
| K40/5f464 | Fuse 464 | 37A |
| K40/5f465 | Fuse 465 | 35A |
| K40/5f466 | Fuse 466 | 34A |
| K40/5f467 | Fuse 467 | 116A |
| K40/5f468 | Fuse 468 | 114A |
| K40/5f469 | Fuse 469 | 111A |
| K40/5f470 | Fuse 470 | 112A |
| K40/5f471 | Fuse 471 | 109A |
| K40/5f472 | Fuse 472 | 108A |

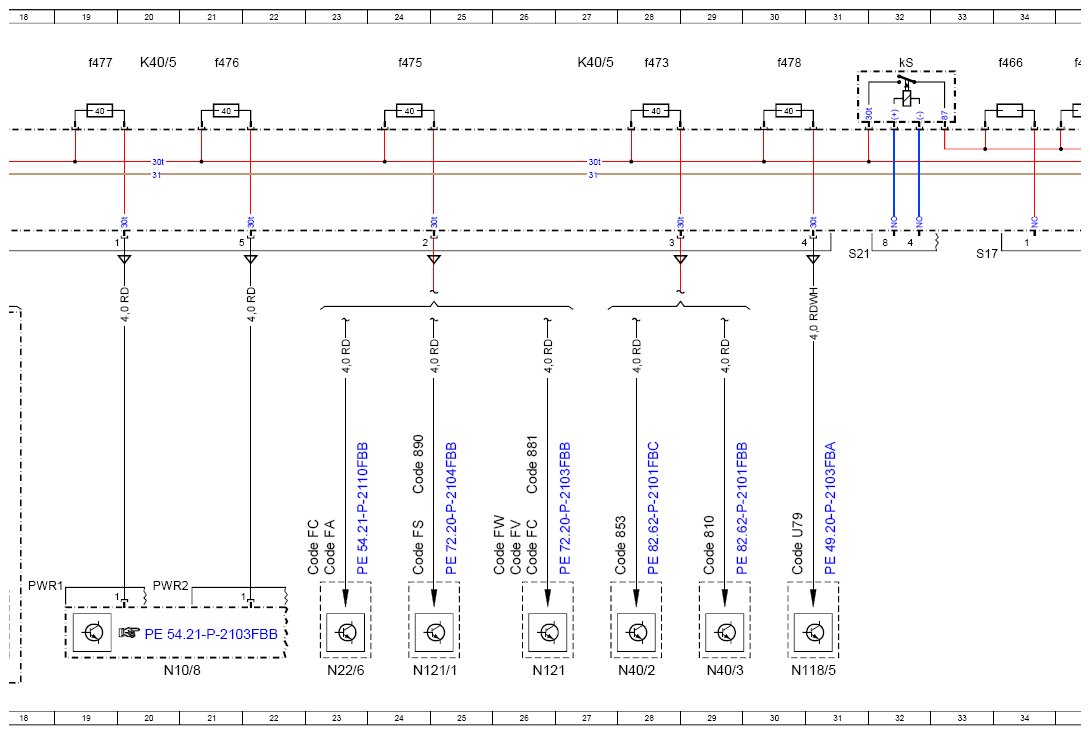

| K40/5f473 | Fuse 473 | 28A |
| K40/5f474 | Fuse 474 | 14A |
| K40/5f475 | Fuse 475 | 24A |
| K40/5f476 | Fuse 476 | 21A |
| K40/5f477 | Fuse 477 | 19A |
| K40/5f478 | Fuse 478 | 30A |
| K40/5kS | Vehicle interior terminal 15 relay | 32A |

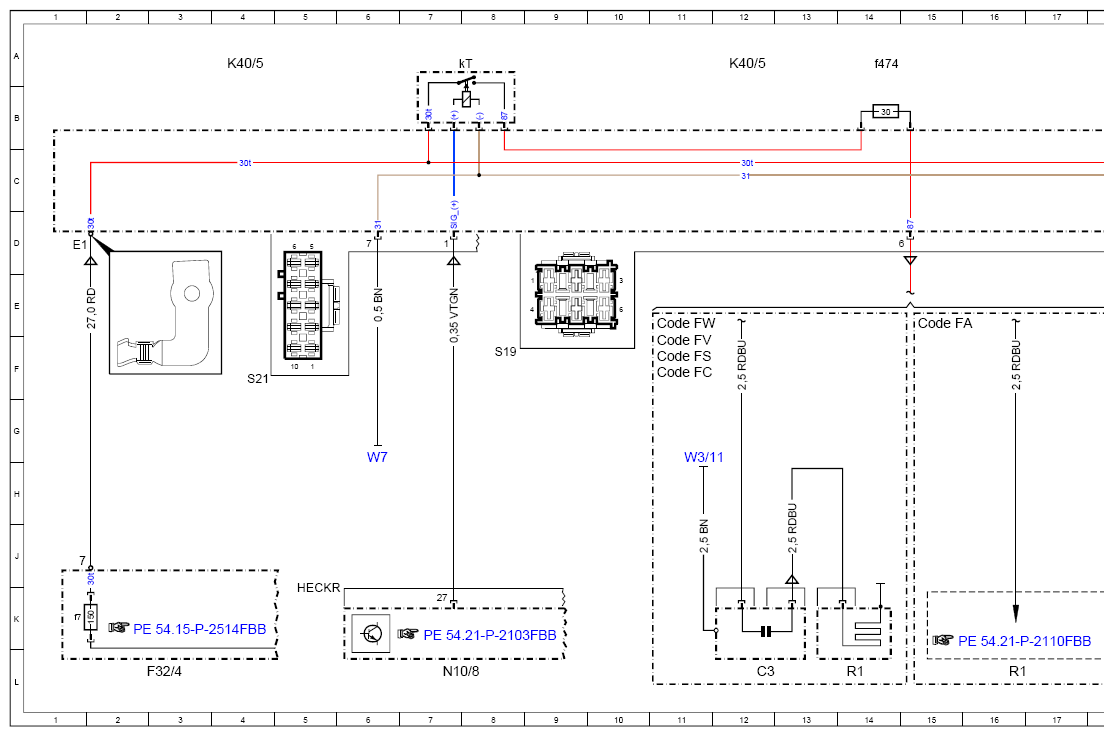

| K40/5kT | Heated rear window relay | 8A |
| K40/5kU | 2nd seat row cup holder and power outlet relay | 58A |
| K40/5kV | AdBlue® relay | 72A |
| K40/5kX | 1st seat row/trunk refrigerator box and power outlet relay | 56A |
| N10/8 | Rear SAM control unit | 7L |
| N10/8 | Rear SAM control unit | 20L |
| N10/8 | Rear SAM control unit | 57L |
| N118 | Fuel pump control unit | 96L |
| N118/5 | AdBlue® control unit | 30L |
| N118/5 | AdBlue® control unit | 77L |
| N121 | Trunk lid control, control unit | 26L |
| N121/1 | Tailgate control, control unit | 24L |
| N143 | TV tuner control unit | 90L |
| N156/1 | Active engine sound generator control unit | 110L |
| N22/6 | Rear control unit | 23L |
| N22/6 | Rear control unit | 78L |
| N22/6 | Rear control unit | 102L |
| N24/3 | DC/AC converter control unit | 67L |
| N24/3 | DC/AC converter control unit | 106L |
| N25/6 | Rear seat heaters control unit | 100L |
| N25/6 | Rear seat heaters control unit | 116L |
| N25/7 | AIRSCARF control unit | 98L |
| N25/7 | AIRSCARF control unit | 117L |
| N3/2 | Electronic differential control unit | 75L |
| N32/15 | Left front multicontour seat control unit | 113L |
| N32/16 | Right front multicontour seat control unit | 114L |
| N38 | Rear switching module | 111L |
| N40/1 | Engine sound control unit | 39L |
| N40/2 | Sound system midline amplifier control unit | 28L |
| N40/3 | Sound system amplifier control unit | 29L |
| N59 | Perfume atomizer generator | 88L |
| N62/4 | Mercedes-Benz Intelligent Drive control unit | 108L |
| N66/2 | Backup camera control unit | 86L |
| N69/1 | Left front door control unit | 82L |
| N69/2 | Right front door control unit | 83L |
| N69/4 | Right rear door control unit | 80L |
| N82/2 | Battery management system control unit | 93L |
| N83/11 | Alternating current charger for high-voltage battery | 40L |
| N88 | Tire pressure monitor control unit | 87L |
| R1 | Rear window heater | 14L |
| R1 | Rear window heater | 16L |
| R3 | Front cigarette lighter with ashtray illumination | 47L |
| S146 | Pedal operation monitor switch | 53L |
| S18/7 | Footwell illumination switch | 53L |
| S22/1 | Driver seat partially electric seat adjustment switch | 64L |
| S22/1 | Driver seat partially electric seat adjustment switch | 65L |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 62L |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 61L |
| W3/11 | Left rear wheel well ground point | 11H |
| We | Right wheelhouse trunk ground point | Oh |
| X4/36 | Vehicle socket electrical connector | 105L |
| X58/12 | Luggage compartment socket | 50L |
| X58/18 | Right rear center console 12V socket | 45L |
| X58/40 | 12V socket | 49L |
| X99x1 | Left tablet PC electrical connector | 52L |
| X99x2 | Right tablet PC electrical connector | 52L |
