Rear Fuse And Relay Box Wiring Diagram - PE54.15-P-2103-97FBE

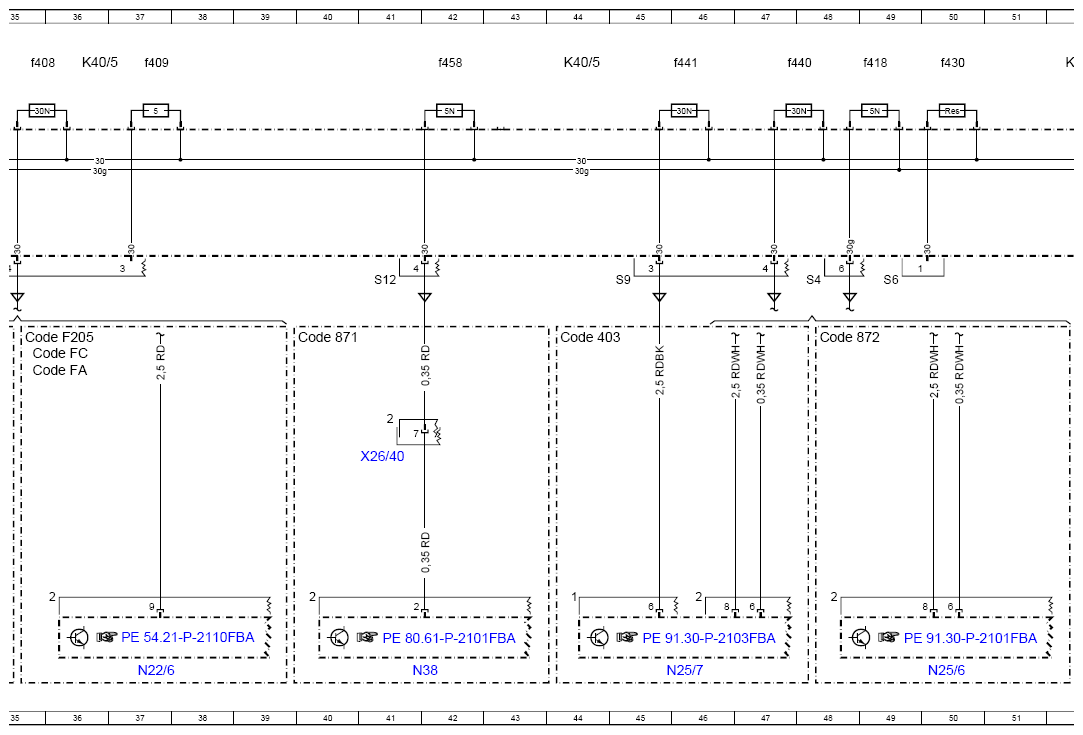

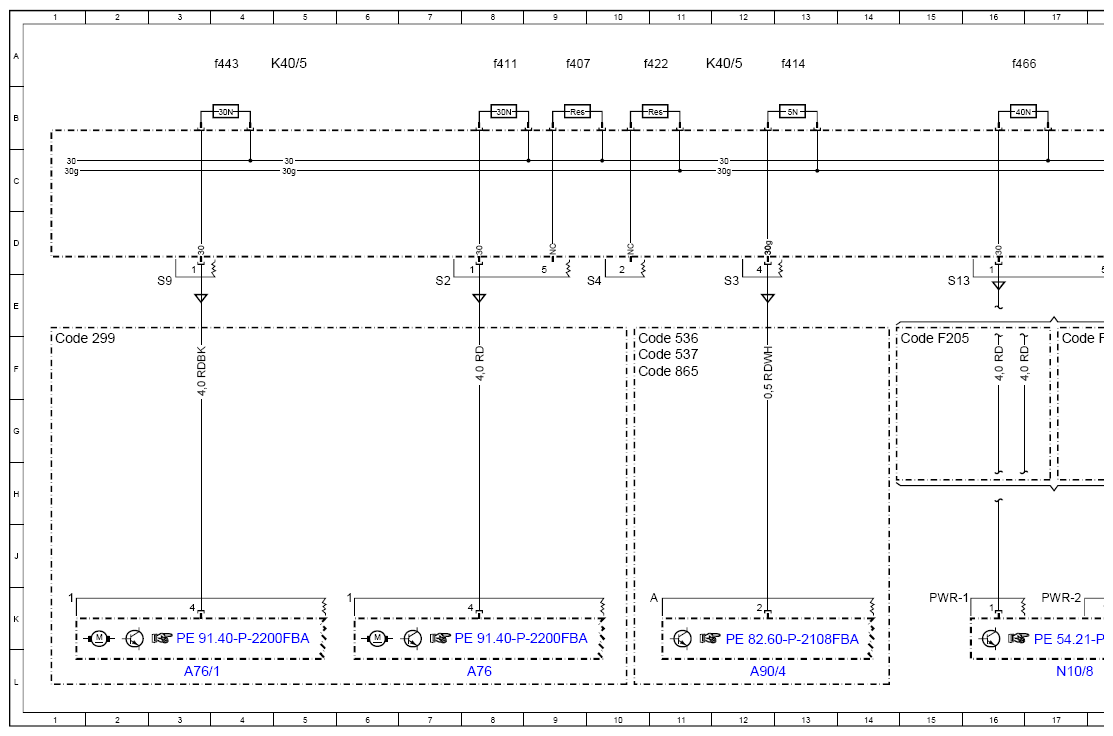

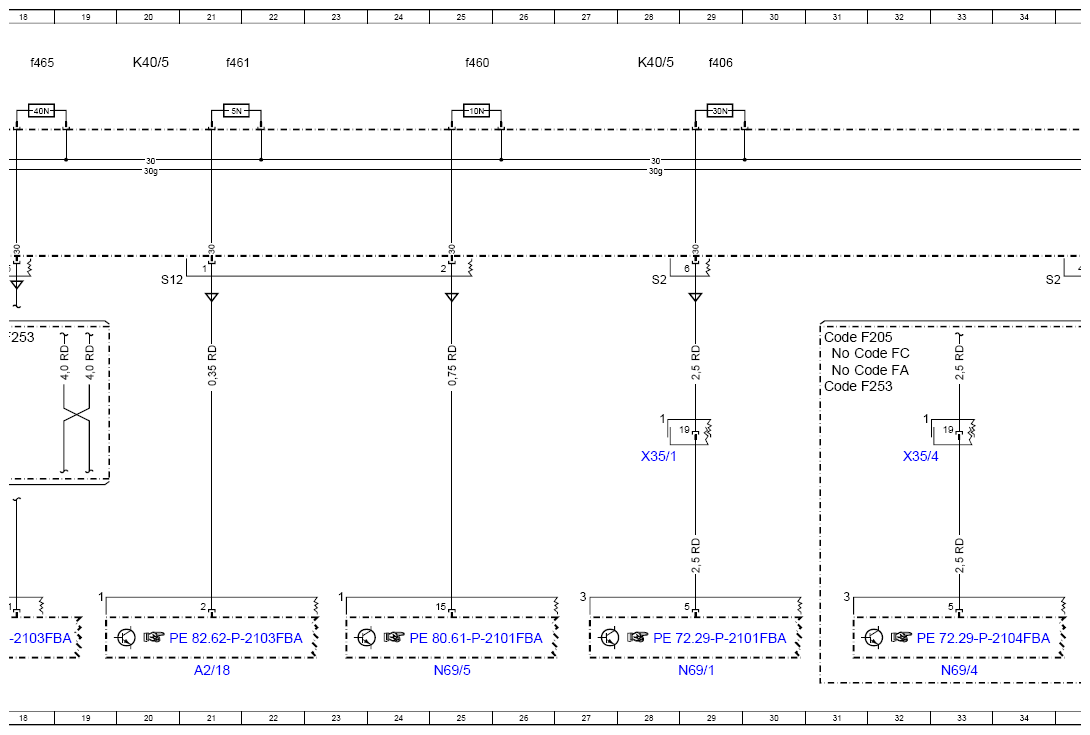

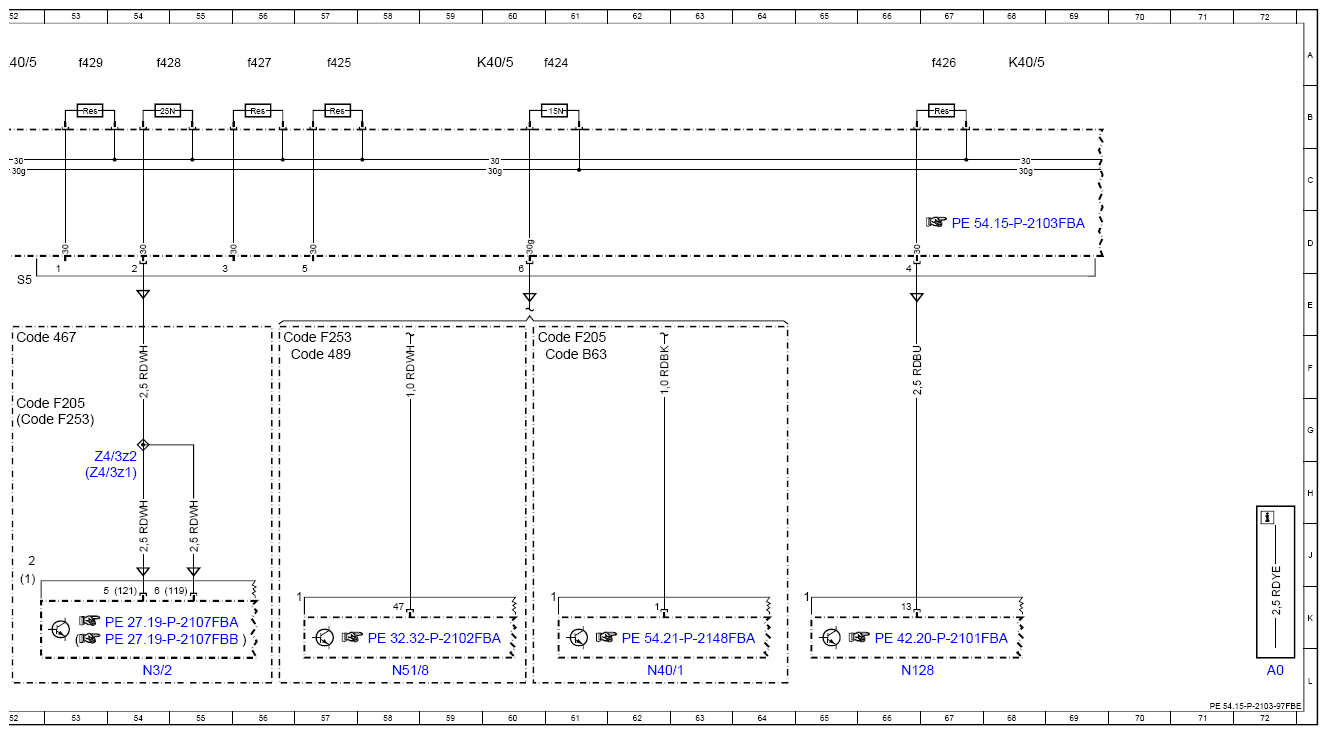

Model 205 up to model year 2019 Fuse and relay box K40/5, Sheet 5 Model 253 (except 253.99) up to model year 2020 Fuse and relay box K40/5, Sheet 5
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 72L |
| A2/18 | FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier | 21L |
| A76 | Left front reversible emergency tensioning retractor | 8L |
| A76/1 | Right front reversible emergency tensioning retractor | 3L |
| A90/4 | Tuner unit | 12L |
| Code 299 | PRE-SAFE® | 1F |
| Code 403 | AIRSCARF system | 44F |
| Code 467 | Electronic locking differential | 52F |
| Code 489 | AIR BODY CONTROL | 56F |
| Code 536 | SIRIUS satellite radio | 10F |
| Code 537 | Digital radio (DAB) | 10F |
| Code 865 | TV tuner | 10F |
| Code 871 | Sensor system for trunk lid opening/closing | 40F |
| Code 872 | Seat heater in rear passenger compartment | 48F |
| Code B63 | AMG eSound | 60F |
| Code F205 | MODEL SERIES 205 | 15F |
| Code F205 | MODEL SERIES 205 | 31F |
| Code F205 | MODEL SERIES 205 | 35F |
| Code F205 | MODEL SERIES 205 | 52G |
| Code F205 | MODEL SERIES 205 | 60F |
| Code F253 | MODEL SERIES 253 | 31F |
| Code F253 | MODEL SERIES 253 | 17F |
| Code F253 | MODEL SERIES 253 | 52G |
| Code F253 | MODEL SERIES 253 | 56F |
| Code FA | CABRIOLET | 35F |
| Code FA | CABRIOLET | 31F |
| Code FC | COUPE | 31F |
| Code FC | COUPE | 35F |
| K40/5 | Rear fuse and relay module | 36A |
| K40/5 | Rear fuse and relay module | 5A |
| K40/5 | Rear fuse and relay module | 12A |
| K40/5 | Rear fuse and relay module | 20A |
| K40/5 | Rear fuse and relay module | 28A |
| K40/5 | Rear fuse and relay module | 60A |
| K40/5 | Rear fuse and relay module | 44A |
| K40/5 | Rear fuse and relay module | 52A |
| K40/5 | Rear fuse and relay module | 68A |
| K40/5f406 | Fuse 406 | 29A |
| K40/5f407 | Fuse 407 | 9A |
| K40/5f408 | Fuse 408 | 35A |
| K40/5f409 | Fuse 409 | 37A |
| K40/5f411 | Fuse 411 | 8A |
| K40/5f414 | Fuse 414 | 13A |
| K40/5f418 | Fuse 418 | 49A |
| K40/5f422 | Fuse 422 | 11A |
| K40/5f424 | Fuse 424 | 61A |
| K40/5f425 | Fuse 425 | 57A |
| K40/5f426 | Fuse 426 | 67A |
| K40/5f427 | Fuse 427 | 56A |
| K40/5f428 | Fuse 428 | 54A |
| K40/5f429 | Fuse 429 | 53A |
| K40/5f430 | Fuse 430 | 50A |
| K40/5f440 | Fuse 440 | 47A |
| K40/5f441 | Fuse 441 | 46A |
| K40/5f443 | Fuse 443 | 4A |
| K40/5f458 | Fuse 458 | 42A |
| K40/5f460 | Fuse 460 | 25A |
| K40/5f461 | Fuse 461 | 21A |
| K40/5f465 | Fuse 465 | 18A |
| K40/5f466 | Fuse 466 | 16A |
| N10/8 | Rear SAM control unit | 17L |
| N128 | Electric parking brake control unit | 66L |
| N22/6 | Rear control unit | 37L |
| N25/6 | Rear seat heaters control unit | 50L |
| N25/7 | AIRSCARF control unit | 46L |
| N3/2 | Electronic differential control unit | 54L |
| N38 | Rear switching module | 41L |
| N40/1 | Engine sound control unit | 62L |
| N51/8 | AIR BODY CONTROL Plus control unit | 58L |
| N69/1 | Left front door control unit | 29L |
| N69/4 | Right rear door control unit | 33L |
| N69/5 | KEYLESS-GO control unit | 25L |
| X26/40 | Rear frame floor assembly/bumper electrical connector | 41H |
| X35/1 | Driver door electrical connector | 28H |
| X35/4 | Right rear door electrical connector | 32H |
| Z4/3z1 | Tml. 30 connector sleeve | 54H |
| Z4/3z2 | Tml. 30 connector sleeve | 54G |
