Retrofit Wiring Harness For Mercedes-Benz Dashcam At Rear With Existing Mercedes-Benz Dashcam At Front - AZ54.71-P-0003-01LW

Model 205.0/1

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on retrofitting electrical/optical lines		AH82.00-P-0000-01A

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1144-02A	Adhesive tape roll, non-woven Tesa tape, 50 meters, 50 mm wide	A 008 989 50 85 09

Courtesy of MERCEDES-BENZ USA

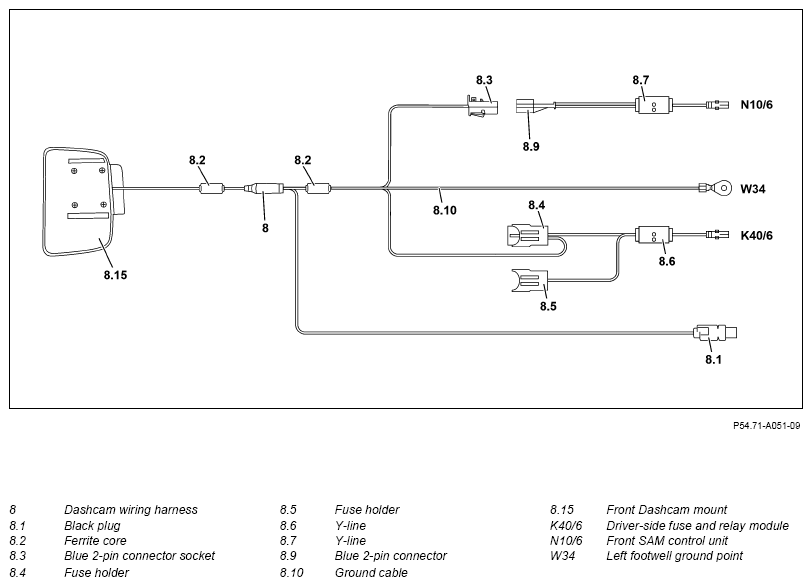

Connection scheme

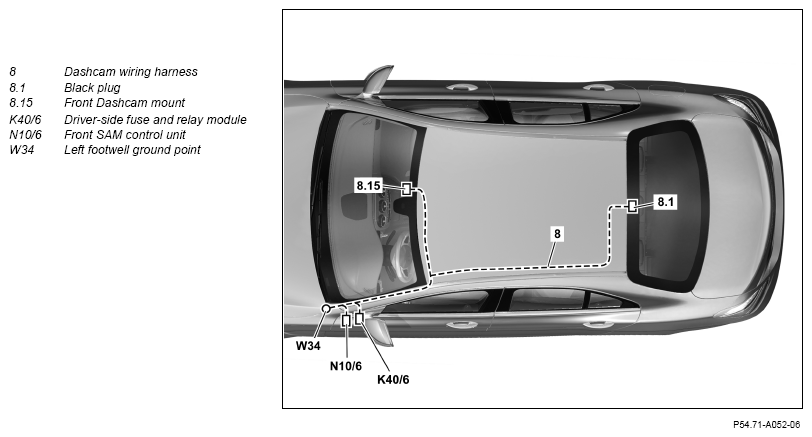

Routing diagram

Courtesy of MERCEDES-BENZ USA

Slide damping (39) to one side.
Expose line branch-off for Dashcam at rear.

Courtesy of MERCEDES-BENZ USA
Expose black plug (8.1) of Dashcam wiring harness (8).
To do this, remove fabric tape (41) and pocket (40) from Dashcam wiring harness (8).

Courtesy of MERCEDES-BENZ USA
Route line branch-off for rear Dashcam of Dashcam wiring harness (8) from driver's side fuse and relay module to upper A-pillar.
Route line branch-off for rear Dashcam behind crossmember for instrument panel.

Route line branch-off for rear Dashcam above window airbag (30).

Courtesy of MERCEDES-BENZ USA
Route branch-off line for rear Dashcam of Dashcam wiring harness (8) on roof lining towards rear up to center of roof lining.
Route branch-off line for rear Dashcam behind mounts for front and rear grab handles (arrows E).
Strap down excess lengths of Dashcam wiring harness (8) in area of A-pillar.
Then fasten Dashcam wiring harness (8) on roof lining using felt adhesive tape.

Courtesy of MERCEDES-BENZ USA

Shown on model 205.0 with removed roof lining
