Retrofit Rear Mercedes-Benz Dashcam With Existing Front Dashcam - AZ54.71-P-0003LW

Model 205.0/1/2

except code 540 (Electric roller blind for rear window)

except code E64 (ECALL RUSSIA (GLONASS))

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on retrofitting electrical/optical lines		AH82.00-P-0000-01A
	Remove
1	Release fuse and relay module on driver's side.
			AR54.15-P-0003LWX
2	Remove A-pillar trim on driver's side.
			AR68.30-P-4050LW
3	Remove top B-pillar trim on driver's side and place with attached seat belt to one side.
			AR68.30-P-4700LW
4	Remove front and rear grab handles on driver's side.
			AR68.30-P-4330NKB
5	Remove covers over mounting eyes for front and rear partitioning net on driver's side.	Model 205.2
		Long wedge	Fig 1
6	Remove left C-pillar trim and place to one side with the seat belt attached.
		Model 205.0/1	AR68.30-P-4490LW
7	Remove D-pillar trim on driver's side.
		Model 205.2	AR68.30-P-4495LW
8	Remove overhead control panel control unit.
			AR82.20-P-1000LF
	Install
9	Retrofit rear Dashcam mount.	When pressing on, ensure that the pressure is applied directly on the adhesive point. The maximum adhesive strength is only reached after approx. 72 h at 20 °C. All kinds of mechanical stress must be avoided during the first hour. Otherwise adhesion problems may occur.	AZ54.71-P-0003-00LWE
		Cleaner	*BR00.45-Z-1025-04A
	Remove
10	Remove cover of rain and light sensor.	Long wedge	Fig 1
11	Remove both sun visors.
			AR68.60-P-5480NKB
12	Detach front and rear edge guard on driver's side in area of roof lining.
13	Release front and rear roof lining on driver's side.
14	Remove upper liftgate trim.
		Model 205.2	AR72.20-P-6631LWS
	Install
15	Route Dashcam wiring harness.	Model 205.0/1	AZ54.71-P-0003-01LW
		Model 205.2	AZ54.71-P-0003-01LWS
		Silicon spray Silicon-Fluid, 0.4 l art. no. 0893 221 000	*BR00.45-Z-1133-06A
		Adhesive tape roll, non-woven Tesa tape, 50 meters, 50 mm wide	*BR00.45-Z-1144-02A

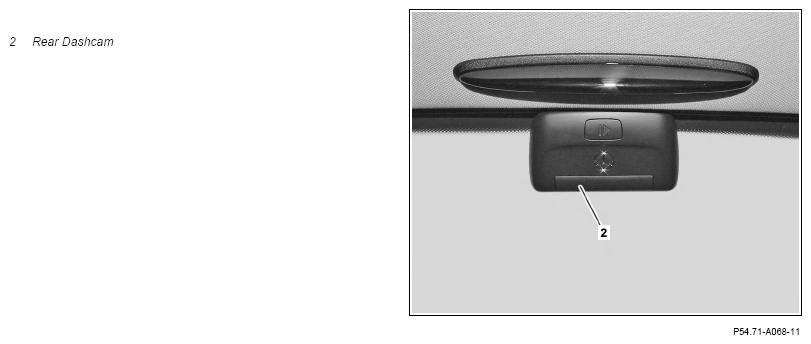

16	Engage rear Dashcam (2) against arrow on Eject button in the Dashcam mount.	Assembly of the rear Dashcam (2), at the earliest, one hour after bonding the Dashcam mount. Otherwise, the Dashcam mount may work its way loose.
17	Perform initial startup.		AZ54.71-P-0001-02LWE
	National settings for Mercedes-Benz dashcam		GF54.71-P-0010-02LWE
18	Install remaining parts.
	Update Vehicle Documentation (VeDoc)
19	Attach note "Mercedes-Benz rear Dashcam retrofitted as per " under field organization texts to DG 54, DG 67 and DG 68.		AZ54.71-P-0003LW
	Check
20	Perform function test.	See Owner's Manual.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
