Remove/Install Parktronic System (PTS) Sensors In Front Bumper - AR54.65-P-0001LW
Model 205
with code 235 (Active Parking Assist with PARKTRONIC)
Model 253
with code 235 (Active Parking Assist with PARKTRONIC)

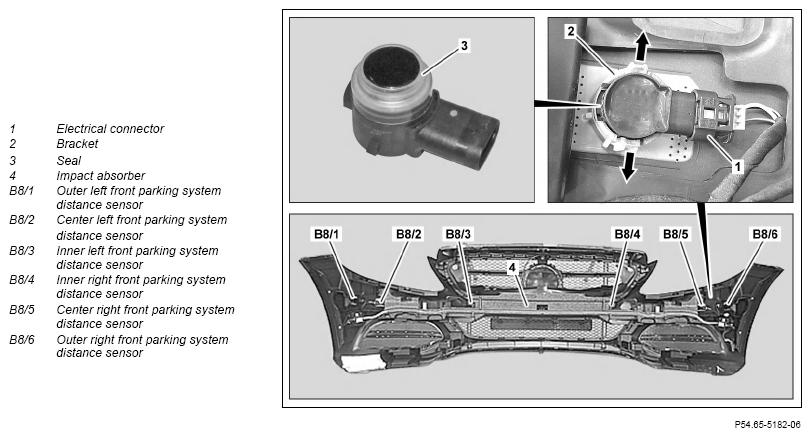

Fig 1: Parktronic System (PTS) Sensors In Front Bumper - Model 205 With Code 235; Shown Except Codes 772, 773 And P90
Shown on MODEL 205 except CODE 772 (AMG styling package - front spoiler, side skirts and rear apron) and except CODE 773 (AMG carbon exterior package) and except CODE P90 (AMG exterior)

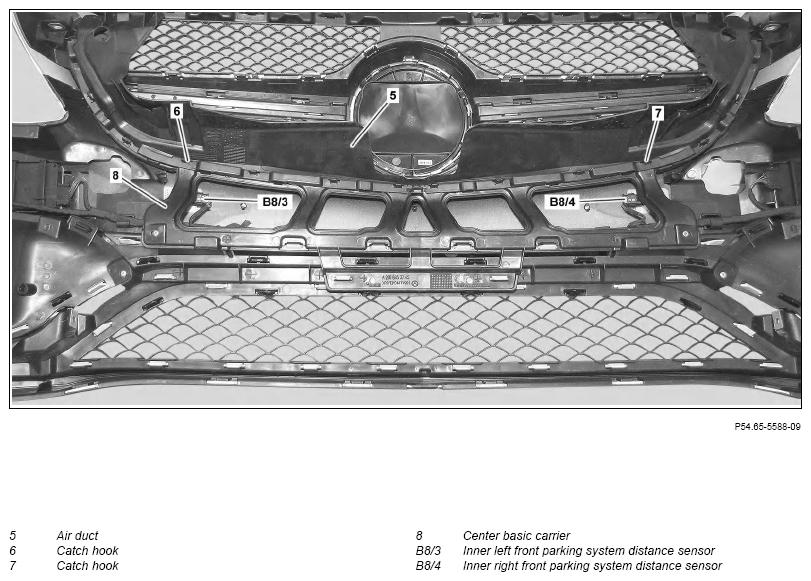

Model 205, 253 with code 772 (AMG optical package - Front spoiler, side skirts and rear apron) or model 205 with code 773 (AMG Carbon Exterior package) or with code P90 (AMG Exterior), shown on model 205.087 with code 773 (AMG Carbon Exterior package)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove front bumper | Model 205 with code 235 (Active Parking Assist with PARKTRONIC) Model 253 with code 235 (Active Parking Assist with PARKTRONIC) with code 772 (AMG styling package - front spoiler, side skirts and rear apron) |
AR88.20-P-2000LW |
| 2 | Release fender liner in fender in front area far enough until the corresponding distance sensors (B8/1, B8/2, B8/5 or B8/6) are accessible | Model 205, 253 with code 235 (Active Parking Assist with PARKTRONIC) except code 772 (AMG styling package - front spoiler, side skirts and rear apron) If distance sensors (B8/1, B8/2, B8/5 or B8/6) are removed/installed. |
AR88.10-P-1300LW |
| 3 | Remove front engine compartment paneling | Model 205 Model 253 with code 235 (Active Parking Assist with PARKTRONIC) except code 772 (AMG styling package - front spoiler, side skirts and rear apron) If distance sensors (B8/3 or B8/4) are removed/installed. |
AR61.20-P-1105LW |
| 4.1 | Remove impact absorber (4) | Model 205 with code 235 (Active Parking Assist with PARKTRONIC) except code U60 (Active Bonnet (Pedestrian protection)) If distance sensors (B8/2, B8/3, B8/4 or B8/5) are removed/installed. |
|
| General information on the impact absorber | AH88.20-P-1000-01A | ||
| 4.2 | Release impact absorber (4) and place to one side | Model 205 with code 235 (Active Parking Assist with PARKTRONIC) with code U60 (Active Bonnet (Pedestrian protection)) If distance sensors (B8/2, B8/3, B8/4 or B8/5) are removed/installed. |
|
| General information on the impact absorber | AH88.20-P-1000-01A | ||
| Notes on pedestrian protection sensor | AH91.60-P-0001-01A | ||
| 5 | Unclip air deflector (5) and remove | Model 205, 253 with code 235 (Active Parking Assist with PARKTRONIC) with code 772 (AMG styling package - front spoiler, side skirts and rear apron) Model 205 with code 235 (Active Parking Assist with PARKTRONIC) with code 773 (AMG exterior carbon trim package) Model 205 with code 235 (Active Parking Assist with PARKTRONIC) with code P90 (AMG exterior) |
|
| 6 | Unclip catch hook (6) or catch hook (7) and lift center basic carrier (8) until inner left front parking system distance sensor (B8/3) or inner right front parking system distance sensor (B8/4) is accessible | Model 205, 253 with code 235 (Active Parking Assist with PARKTRONIC) with code 772 (AMG styling package - front spoiler, side skirts and rear apron) Model 205 with code 235 (Active Parking Assist with PARKTRONIC) with code 773 (AMG exterior carbon trim package) Model 205 with code 235 (Active Parking Assist with PARKTRONIC) with code P90 (AMG exterior) If distance sensors (B8/3 or B8/4) are removed/installed. |
|
| 7 | Detach electrical connection (1) from corresponding distance sensor (B8/1, B8/2, B8/3, B8/4, B8/5, B8/6) | ||
| 8 | Release catch hook of corresponding bracket (2) in direction of arrow, and remove distance sensor (B8/1, B8/2, B8/3, B8/4, B8/5 or B8/6) from bracket (2) then check seal (3) | If there are problems ↓ Replace seal (3) |
|
| 9 | Install in the reverse order |
