Overview of energy management system components - GF54.10-P-9990KN
MODEL 117, 156, 176, 242, 246

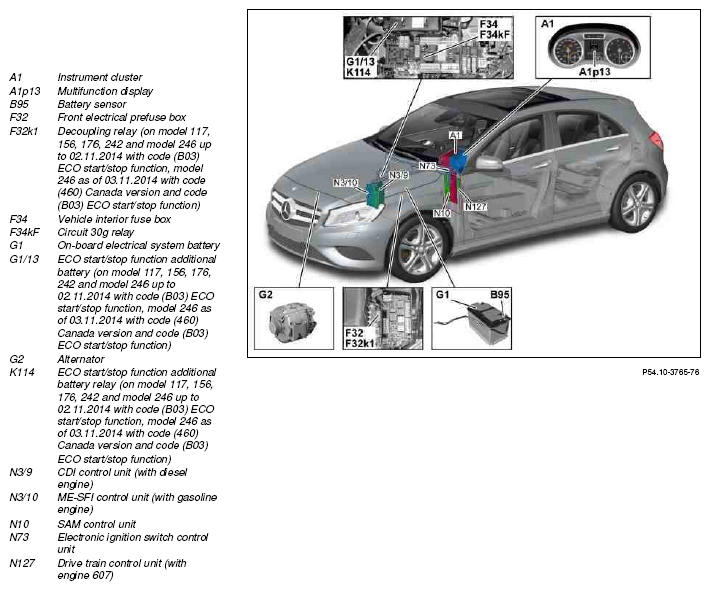

MODEL 117, 156, 176, 242 (except 242.890), MODEL 246; illustration shows model 176
The following function-relevant components are not shown:
- Additional battery (G1/7) (with transmission 724 in model 246 as of 03.11.2014 without code (460) Canada version)
- Starter front-end relay (K92) (on model 246 as of 03.11.2014 without code (460) Canada version)

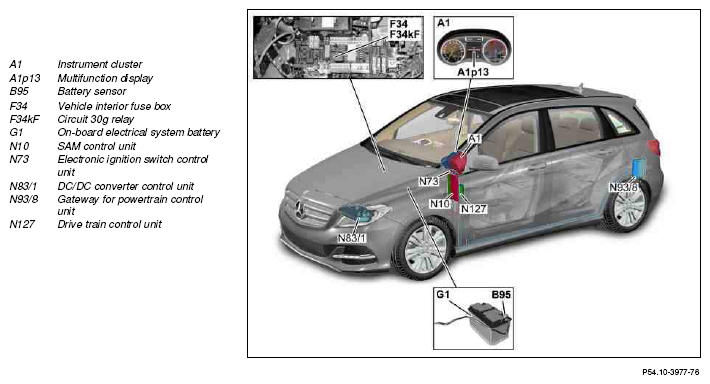

Model 242.890
| Component description for instrument cluster | A1 | GF54.30-P-6000KN | |
| Component description for CDI control unit | MODEL 117, 156, 176, 246 with ENGINE 651 N3/9 | GF07.16-P-6000OLB | |
| MODEL 117, 176, 246 with ENGINE 607 N3/9 | GF07.16-P-6000ORA | ||
| Component description for ME-SFI (ME) control unit | MODEL 117, 156, 176 with ENGINE 133.9 N3/10 | GF07.61-P-6000MTA | |
| MODEL 117, 156, 176, 246 with ENGINE 270.9 N3/10 | GF07.61-P-6000MT | ||
| MODEL 242 with ENGINE 270.9 with CODE 924 (Monovalent natural gas drive) N3/10 | GF07.61-P-6000MTC | ||
| SAM control unit, component description | N10 | GF54.21-P-4157KN | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001KN | |
| Component description for DC/DC converter control unit | MODEL 242.890 with ENGINE 780.990 N83/1 | GF54.10-P-3006KN | |
| Powertrain gateway control unit, component description | MODEL 242.890 with ENGINE 780.990 N93/8 | GF08.20-P-3007KN | |
| Drivetrain control unit, component description | MODEL 117, 176, 246 with ENGINE 607 N127 | GF54.21-P-2141ORA | |
| MODEL 242.890 with ENGINE 780.990 N127 | GF54.21-P-2141KN | ||
| Table of contents for function description of energy management | GF54.10-P-0990KN |
