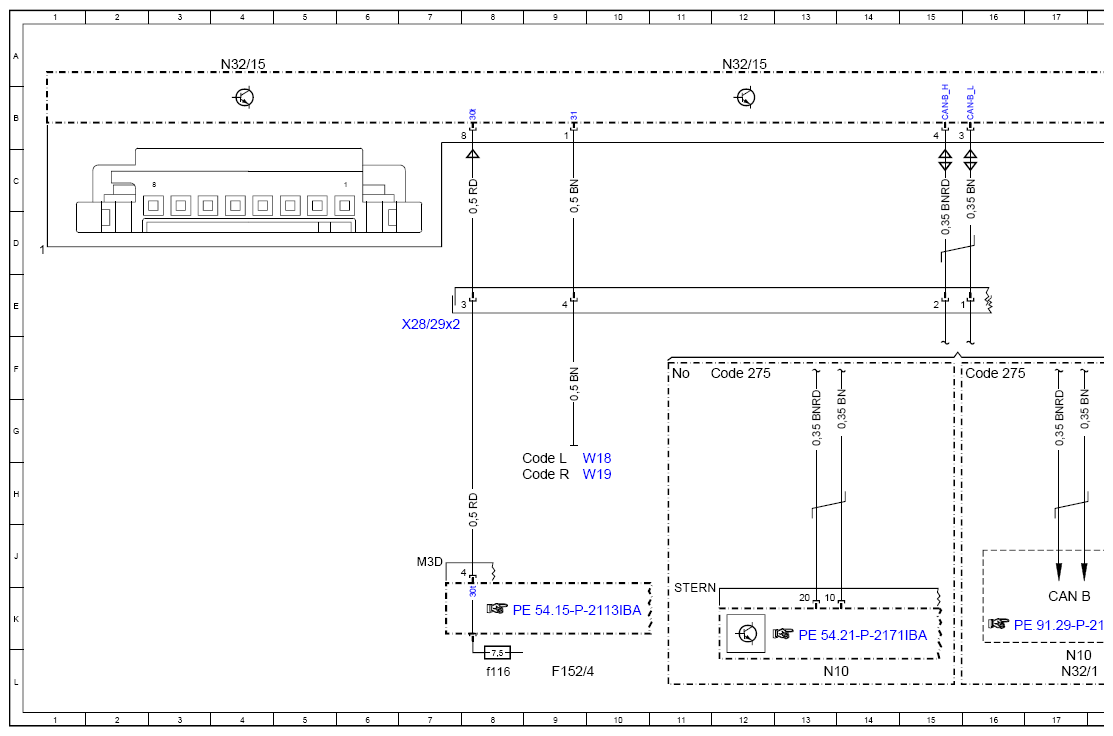

Wiring Diagram For Driver Multicontour Seat Control Unit - PE91.25-P-2104-97IBA
Model 177
with code 409 (Left and right front multicontour seat)
Control unit N32/15
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| CAN B | Interior CAN | 17K |
| Code 275 | Electrically adjustable driver seat with memory function | 16F |
| Code 275 | Electrically adjustable driver seat with memory function | 11F |
| Code L | LEFT-HAND DRIVE | 8H |
| Code L | LEFT-HAND DRIVE | 31J |
| Code R | RIGHT-HAND DRIVE | 8H |
| Code R | RIGHT-HAND DRIVE | 31G |
| F152/4 | Vehicle interior fuse and relay module | 9L |
| F152/4f116 | Fuse 116 | 8L |
| M25/4 | Driver seat lumbar support pneumatic pump | 20L |
| N10 | Central control module | 13L |
| N10 | Central control module | 17L |
| N32/1 | Driver seat control unit | 17L |

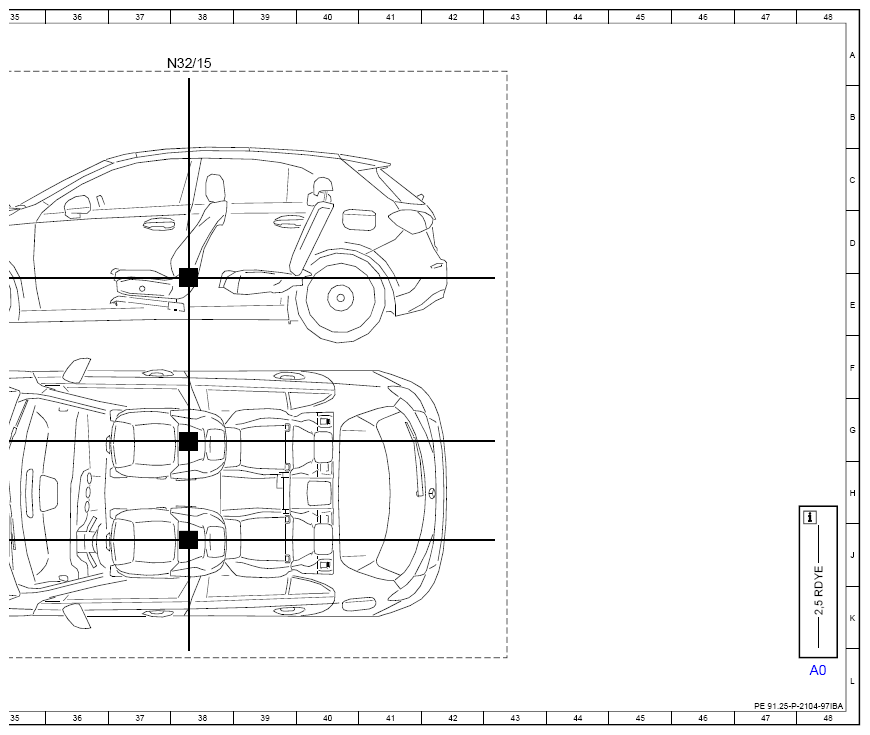

| N32/15 | Driver multicontour seat control unit | 4A |
| N32/15 | Driver multicontour seat control unit | 12A |
| N32/15 | Driver multicontour seat control unit | 19A |
| N32/15 | Driver multicontour seat control unit | 26A |
| N32/15 | Driver multicontour seat control unit | 38A |
| W18 | Left front seat crossmember ground point | 9H |
| W19 | Right front seat crossmember ground point | 9H |
| X28/29x2 | Frame floor assembly/driver seat electrical connector | 7E |
