Remove/Install Rear Seat Cushion - AR91.12-P-1021MFA
Model 118, 177, 243.7, 247
Shown on model 177.0 except code 293 (Side airbag in the rear on left and right)
Shown on model 247.6 with code 293 (Side airbag in the rear on left and right)
Shown on model 177.0 with code 293 (Side airbag in the rear on left and right)
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Move front seat to foremost position. | ||
| 2 | Disconnect ground line from battery. | Model 118, 177, 243.7, 247 with code 293 (Sidebag in rear left and right) |
AR54.10-P-0003MFA |

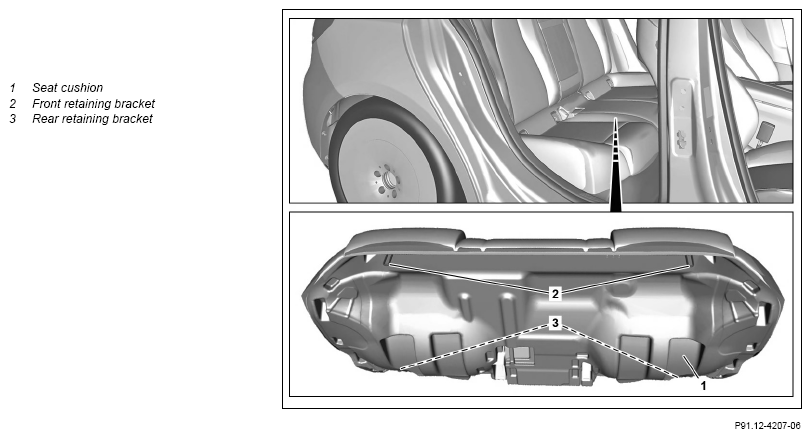

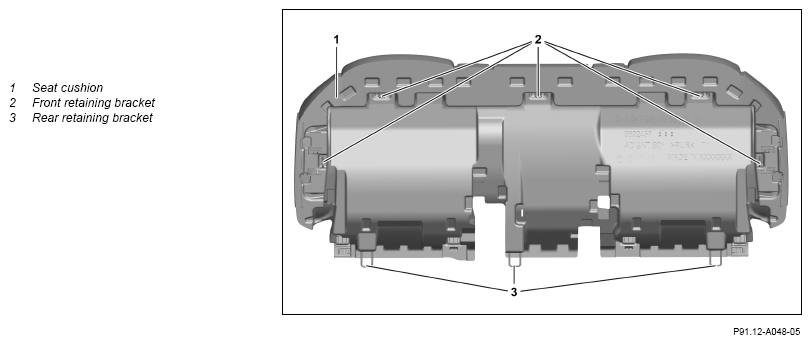

| 3 | Release front retaining brackets (2) with wedge upward out of pilot bushings and position seat cushion (1) upward at an angle. | Only pull lightly by hand on outer side bolsters Otherwise, the seat cushion (1) will be damaged. |
|
| Fig 1 | |||

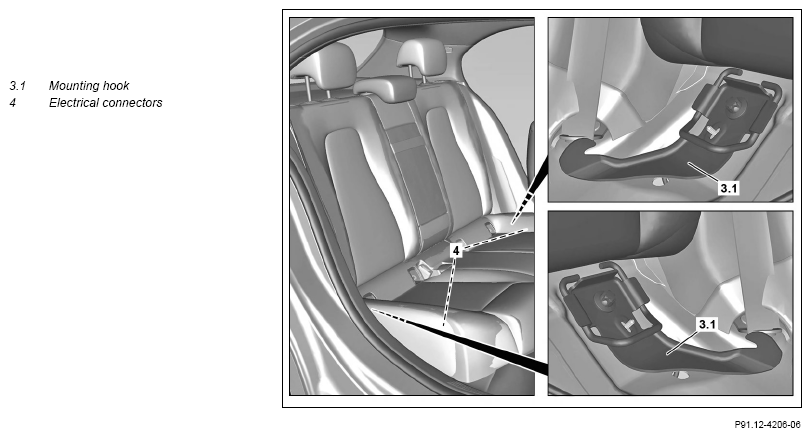

| 4 | Press inclined seat cushion (1) at the same time backwards against the seat backrest and unhook rear mounting frame bows (3) out of mounting hooks (3.1). | ||
| 5 | Release and disconnect electrical connectors (4) and remove cable ties of electrical lines. | Model 118, 177, 243.7, 247 with code 293 (Sidebag in rear left and right) |
|
| 6 | Remove seat cushion (1) from vehicle. | Carefully remove seat cushion (1) from vehicle. Otherwise, component parts of the vehicle get damaged. |
|
| 7 | Install in the reverse order. |
