Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97IBA
Model 177
W2, W2/8, W3/1, W3/2, W6, W7
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 136L |
| A6 | Stationary heater unit | 120L |
| A85/5 | Trunk lid/liftgate lock | 125L |
| B31/4 | Fine particle sensor | 60L |
| B92/7 | Right outer rear radar sensor | 69L |
| Code 051 | YoM 20/2 | 82J |
| Code 218 | Backup camera | 122J |
| Code 228 | Stationary heater | 15J |
| Code 228 | Stationary heater | 17J |
| Code 228 | Stationary heater | 36J |
| Code 228 | Stationary heater | 120J |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 3J |
| Code 233 | Adaptive cruise control Plus (DISTRONIC PLUS) | 63J |
| Code 234 | Blind spot assist | 69J |
| Code 235 | Active Parking Assist with PARKTRONIC | 122J |
| Code 239 | Active Distance Assist DISTRONIC | 4J |
| Code 258 | Active Brake Assist | 5J |
| Code 287 | Folding backrests in rear passenger compartment | 85J |
| Code 459 | Steel suspension with adjustable damping | 64J |
| Code 459 | Steel suspension with adjustable damping | 65J |
| Code 460 | Canada version | 9J |
| Code 460 | Canada version | 8J |
| Code 460 | Canada version | 53J |
| Code 460 | Canada version | 54J |
| Code 494 | USA version | 14J |
| Code 494 | USA version | 17J |
| Code 494 | USA version | 9J |
| Code 494 | USA version | 8J |
| Code 494 | USA version | 53J |
| Code 494 | USA version | 54J |
| Code 494 | USA version | 126J |
| Code 501 | Surround View camera | 122J |
| Code 550 | Trailer hitch | 98J |
| Code 550 | Trailer hitch | 128J |
| Code 579 | Single-zone air conditioning | 14J |
| Code 579 | Single-zone air conditioning | 16J |
| Code 581 | Automatic air conditioning | 14J |
| Code 581 | Automatic air conditioning | 17J |
| Code 613 | Left-hand traffic headlamps | 6J |
| Code 613 | Left-hand traffic headlamps | 7J |
| Code 613 | Left-hand traffic headlamps | 52J |
| Code 613 | Left-hand traffic headlamps | 51J |
| Code 613 | Left-hand traffic headlamps | 72J |
| Code 613 | Left-hand traffic headlamps | 81J |
| Code 613 | Left-hand traffic headlamps | 103J |
| Code 613 | Left-hand traffic headlamps | 111J |
| Code 620 | Right-hand traffic headlamps | 7J |
| Code 620 | Right-hand traffic headlamps | 8J |
| Code 620 | Right-hand traffic headlamps | 53J |
| Code 620 | Right-hand traffic headlamps | 52J |
| Code 620 | Right-hand traffic headlamps | 73J |
| Code 620 | Right-hand traffic headlamps | 81J |
| Code 620 | Right-hand traffic headlamps | 103J |
| Code 620 | Right-hand traffic headlamps | 112J |
| Code 631 | Static LED headlamp, left-hand traffic | 10J |
| Code 631 | Static LED headlamp, left-hand traffic | 55J |
| Code 631 | Static LED headlamp, left-hand traffic | 74J |
| Code 631 | Static LED headlamp, left-hand traffic | 77J |
| Code 631 | Static LED headlamp, left-hand traffic | 105J |
| Code 631 | Static LED headlamp, left-hand traffic | 108J |
| Code 632 | Static LED headlamp, right-hand traffic | 10J |
| Code 632 | Static LED headlamp, right-hand traffic | 55J |
| Code 632 | Static LED headlamp, right-hand traffic | 74J |
| Code 632 | Static LED headlamp, right-hand traffic | 77J |
| Code 632 | Static LED headlamp, right-hand traffic | 108J |
| Code 632 | Static LED headlamp, right-hand traffic | 105J |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 12J |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 56J |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 74J |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 77J |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 108J |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 105J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 12J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 57J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 109J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 75J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 78J |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 106J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 12J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 57J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 75J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 78J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 106J |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 109J |
| Code 802 | YoM 21/1 | 92J |
| Code 802 | YoM 21/1 | 94J |
| Code 810 | Sound system | 118J |
| Code 853 | Midline sound system | 119J |
| Code 871 | HANDS-FREE ACCESS | 67J |
| Code 875 | Heated windshield washer system | 59J |
| Code 882 | Interior monitoring | 29J |
| Code AA7 | POWER VARIANT UPRATED 2 | 31J |
| Code AA7 | POWER VARIANT UPRATED 2 | 64J |
| Code AA7 | POWER VARIANT UPRATED 2 | 66J |
| Code B01 | 48V technology | 88J |
| Code B53 | Acoustic ambient protection | 37J |
| Code B53 | Acoustic ambient protection | 87J |
| Code FV | LONG SEDAN | 67J |
| Code FV | LONG SEDAN | 84J |
| Code FV | LONG SEDAN | 76J |
| Code FV | LONG SEDAN | 80J |
| Code FV | LONG SEDAN | 107J |
| Code FV | LONG SEDAN | 111J |
| Code FV | LONG SEDAN | 113J |
| Code FV | LONG SEDAN | 116J |
| Code FV | LONG SEDAN | 121J |
| Code FV | LONG SEDAN | 124J |
| Code FV | LONG SEDAN | 128J |
| Code FW | SEDAN | 82J |
| Code FZ | SPECIAL VERSION | 67J |
| Code FZ | SPECIAL VERSION | 84J |
| Code FZ | SPECIAL VERSION | 76J |
| Code FZ | SPECIAL VERSION | 80J |
| Code FZ | SPECIAL VERSION | 107J |
| Code FZ | SPECIAL VERSION | 111J |
| Code FZ | SPECIAL VERSION | 113J |
| Code FZ | SPECIAL VERSION | 116J |
| Code FZ | SPECIAL VERSION | 122J |
| Code FZ | SPECIAL VERSION | 124J |
| Code FZ | SPECIAL VERSION | 126J |
| Code FZ | SPECIAL VERSION | 128J |
| Code L | LEFT-HAND DRIVE | 50J |
| Code M005 | 4MATIC | 97J |
| Code M016 | Uprated high-performance engine | 91J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 95J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 91J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 92J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 31J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 39J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 47J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 90J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 102J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 40J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 47J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 15J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 18J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 24J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 23J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 27J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 44J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 48J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 21J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 20J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 15J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 18J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 40J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 23J |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 38J |
| Code P53 | Air purification package | 60J |
| Code R | RIGHT-HAND DRIVE | 33J |
| Code U35 | 12 V socket in load compartment | 71J |
| Code U67 | 230 volt socket in interior compartment | 101J |
| Code U79 | BLUETEC (SCR) diesel exhaust treatment Generation 3 | 99J |
| Code U80 | 115 V socket | 100J |
| E1 | Left front lamp unit | 53L |
| E1 | Left front lamp unit | 55L |
| E1 | Left front lamp unit | 57L |
| E18/1 | Luggage compartment lamp | 84L |
| E18/5 | Left load compartment lamp | 82L |
| E19/1 | Left license plate lamp | 114L |
| E19/2 | Right license plate lamp | 115L |
| E2 | Right front lamp unit | 12L |
| E2 | Right front lamp unit | 8L |
| E2 | Right front lamp unit | 11L |
| E21 | Center stop lamp | 113L |
| E3 | Left rear lamp unit | 73L |
| E3 | Left rear lamp unit | 75L |
| E3 | Left rear lamp unit | 78L |
| E3/1 | Inner left rear lamp unit | 79L |
| E3/1 | Inner left rear lamp unit | 81L |
| E4 | Right rear lamp unit | 104L |
| E4 | Right rear lamp unit | 105L |
| E4 | Right rear lamp unit | 109L |
| E4/1 | Inner right rear lamp unit | 112L |
| E4/1 | Inner right rear lamp unit | 110L |
| E40/6 | Liftgate ambient lamp and warning lamp | 117L |
| F150/1 | Starter battery pre-fuse box | 43L |
| F152/3 | Engine compartment fuse and relay module | 40L |
| F152/3 | Engine compartment fuse and relay module | 42L |
| G1/3 | 48 V battery | 88L |
| H2/1 | Right fanfare horn | 26L |
| H3/1 | Alarm siren | 29L |
| H4/134 | Sound generator 2 | 87L |
| H4/16 | Sound generator | 38L |
| M13/12 | Coolant circulation pump | 32L |
| M13/5 | Coolant circulation pump | 15L |
| M13/5 | Coolant circulation pump | 18L |
| M14/10 | Tank cap central locking actuator | 70L |
| M16/57 | Exhaust flap controller | 102L |
| M35/2 | Rear camera cover motor | 123L |
| M4/28 | 12 V fan for 48 V battery | 89L |
| M6/1 | Wiper motor | 61L |
| N10 | Central control module | 33L |
| N10 | Central control module | 50L |
| N118/5 | AdBlue® control unit | 99L |
| N127 | Drivetrain control unit | 30L |
| N14/2 | Glow output stage | 21L |
| N145/1 | Drive unit control unit | 91L |
| N15/17 | All-wheel drive control unit | 97L |
| N15/20 | Left rear axle differential control unit | 95L |
| N15/20 | Left rear axle differential control unit | 92L |
| N15/21 | Right rear axle differential control unit | 96L |
| N15/21 | Right rear axle differential control unit | 93L |
| N24/3 | DC/AC converter control unit | 101L |
| N28/1 | Trailer recognition control unit | 98L |
| N3/9 | CDI control unit | 20L |
| N33/6 | Fuel preheater control unit | 45L |
| N37/7 | Control unit of NOx sensor upstream of SCR catalytic converter | 24L |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 25L |
| N40/3 | Sound system amplifier control unit | 118L |
| N40/9 | Subwoofer amplifier | 119L |
| N51/5 | Adaptive damping system control unit | 64L |
| N51/5 | Adaptive damping system control unit | 66L |
| N74 | Soot particulate sensor control unit | 23L |
| N74 | Soot particulate sensor control unit | 28L |
| R2/11 | Spray nozzle hose heater | 59L |
| R62 | Voltage dip limiter | 46L |
| S143/3 | Trailer hitch switch | 128L |
| S54/1 | Left rear passenger compartment backrest lock microswitch | 85L |
| S54/2 | Right rear passenger compartment backrest lock microswitch | 86L |
| S62 | Center engine hood contact switch | 35L |
| S88/10 | Trunk lid/liftgate emergency opening button | 126L |
| S88/8 | Trunk lid/liftgate external operation button | 124L |

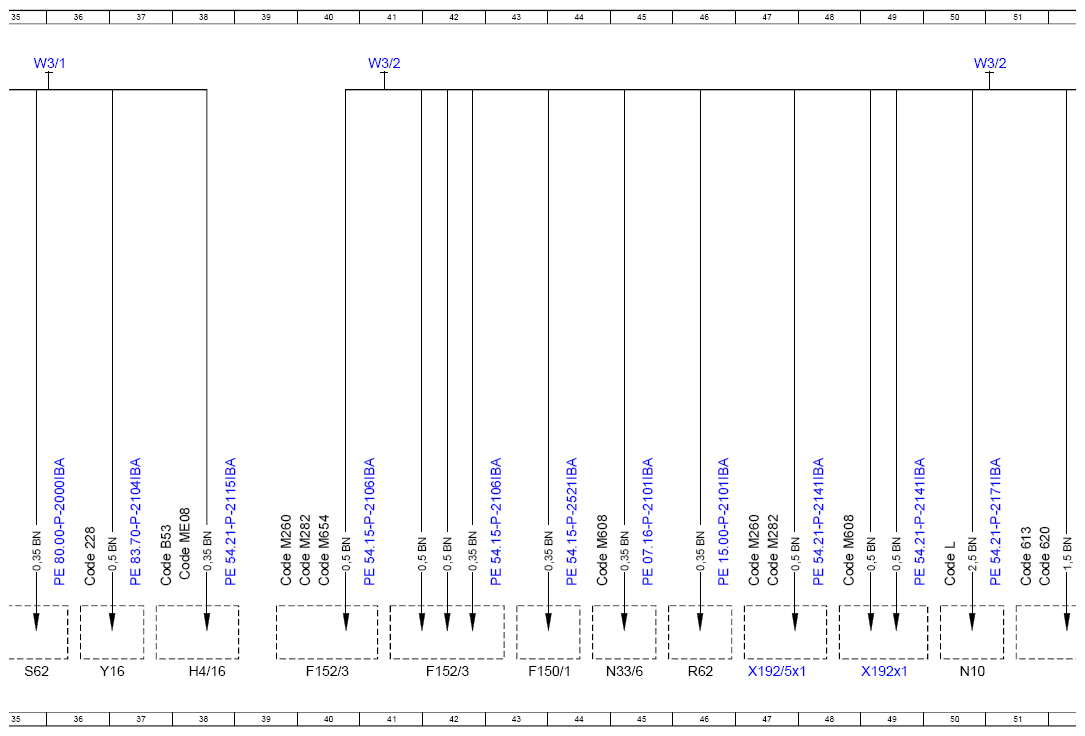

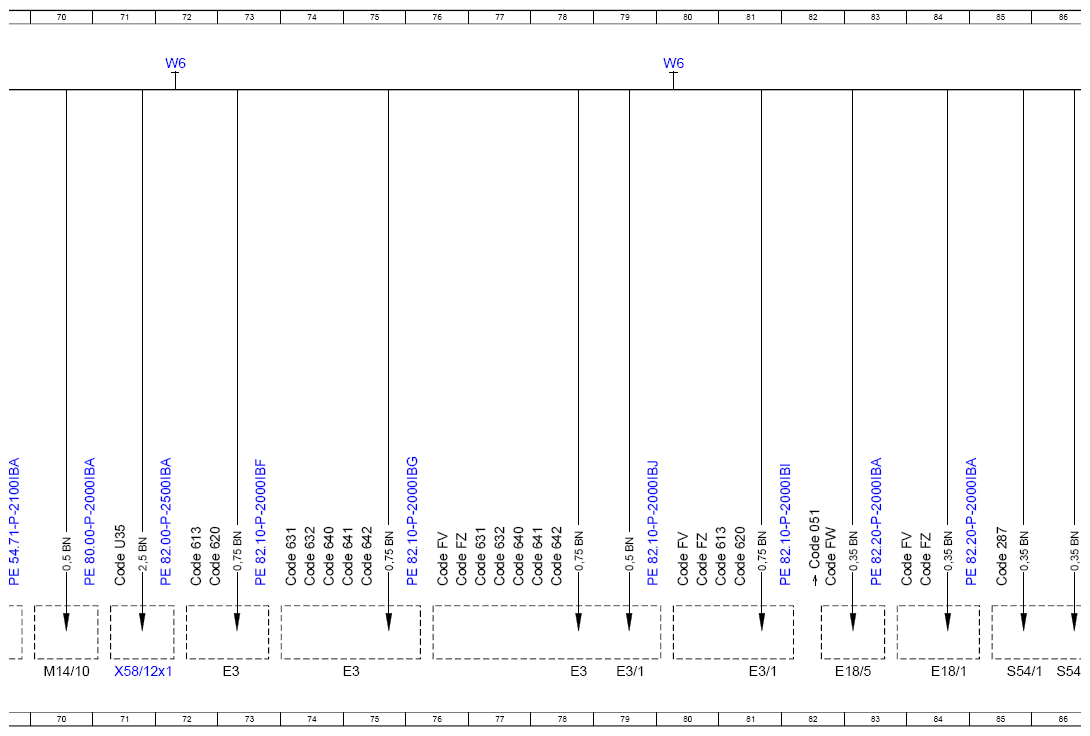

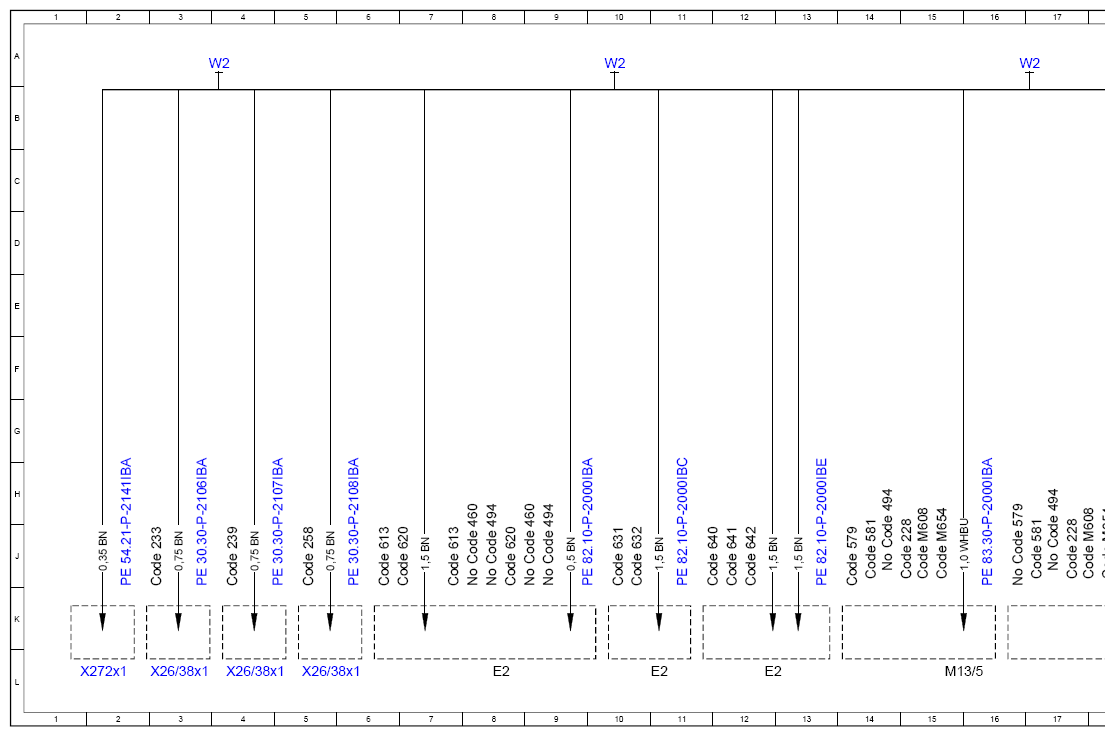

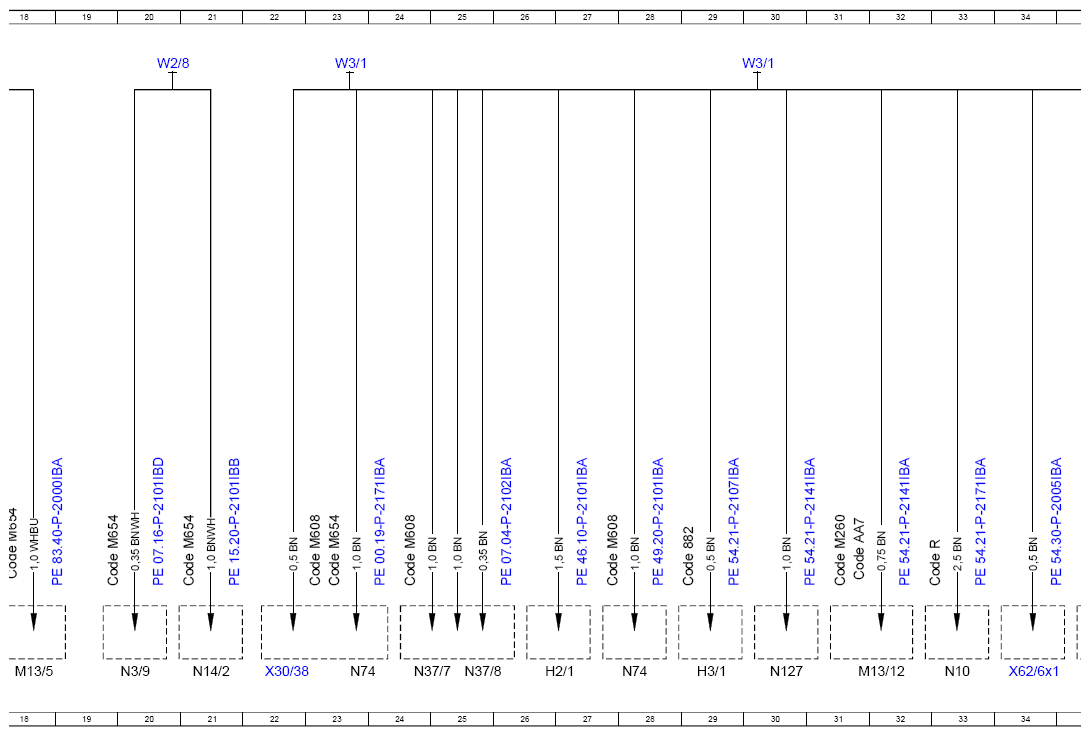

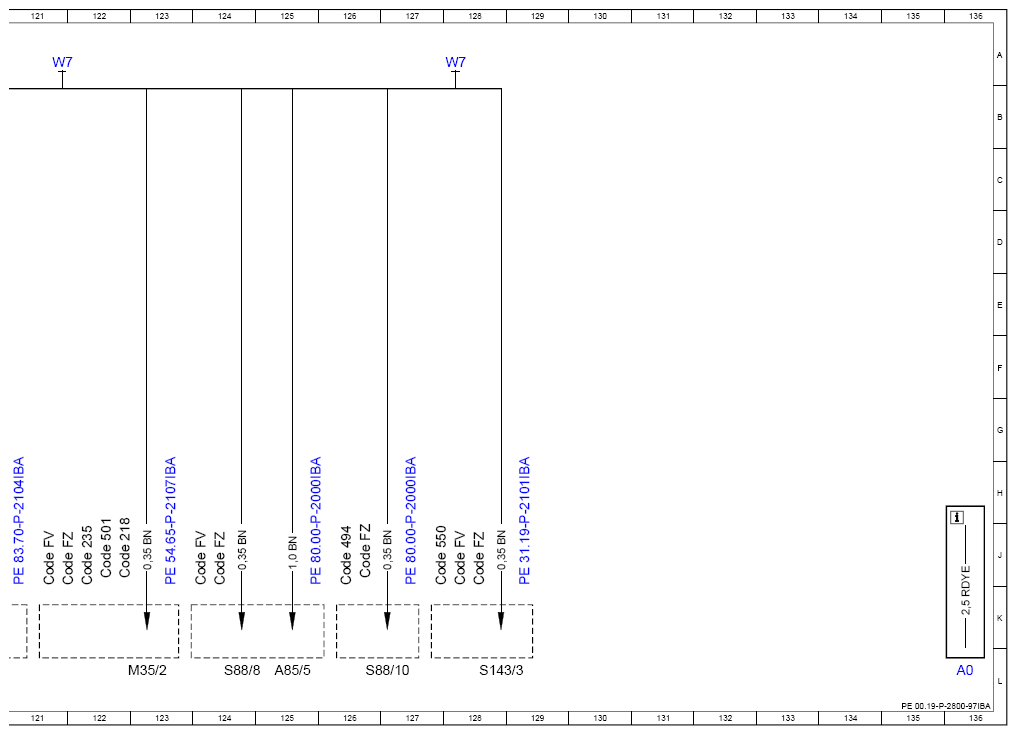

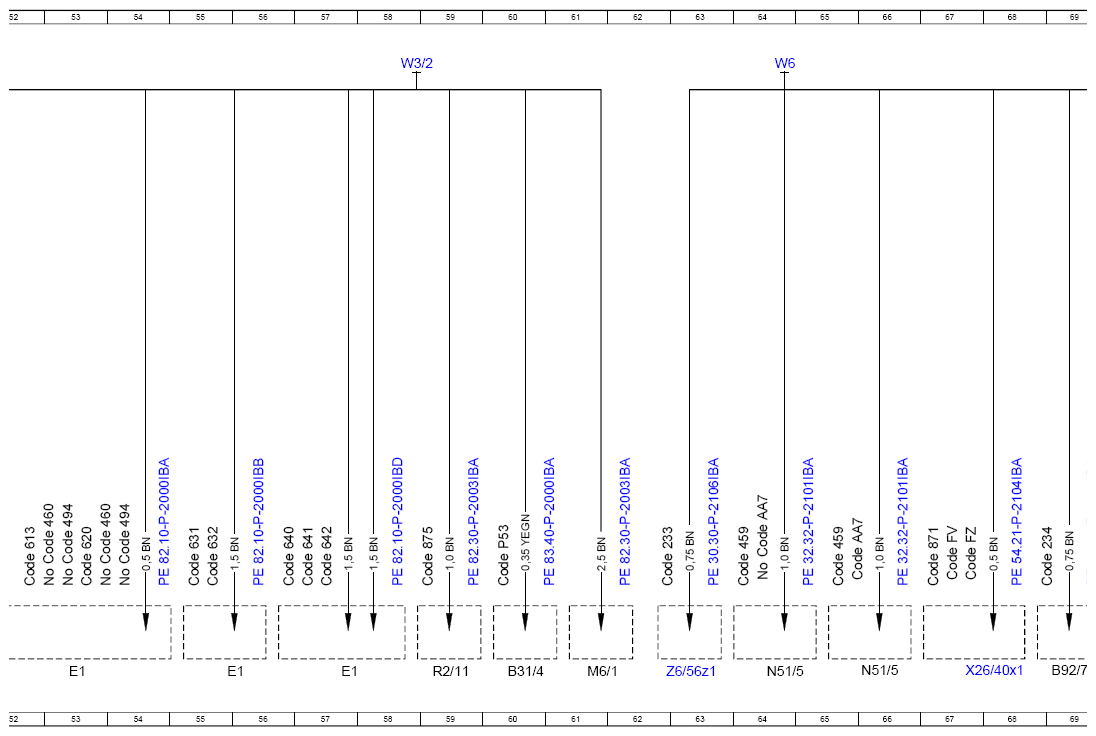

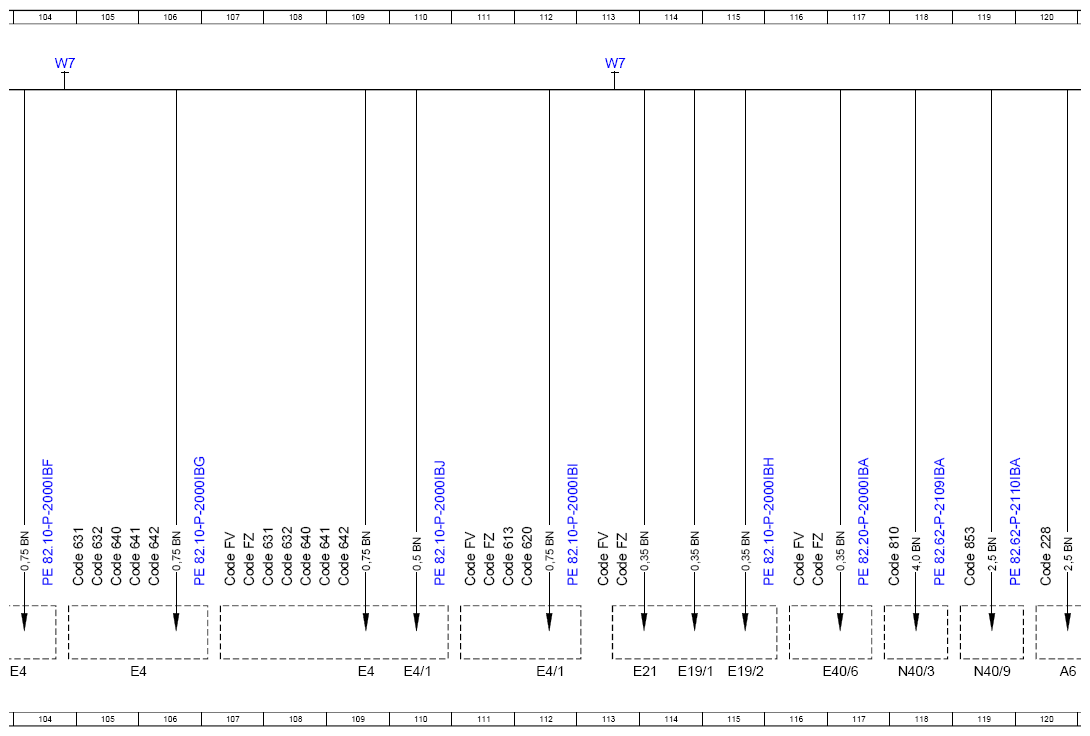

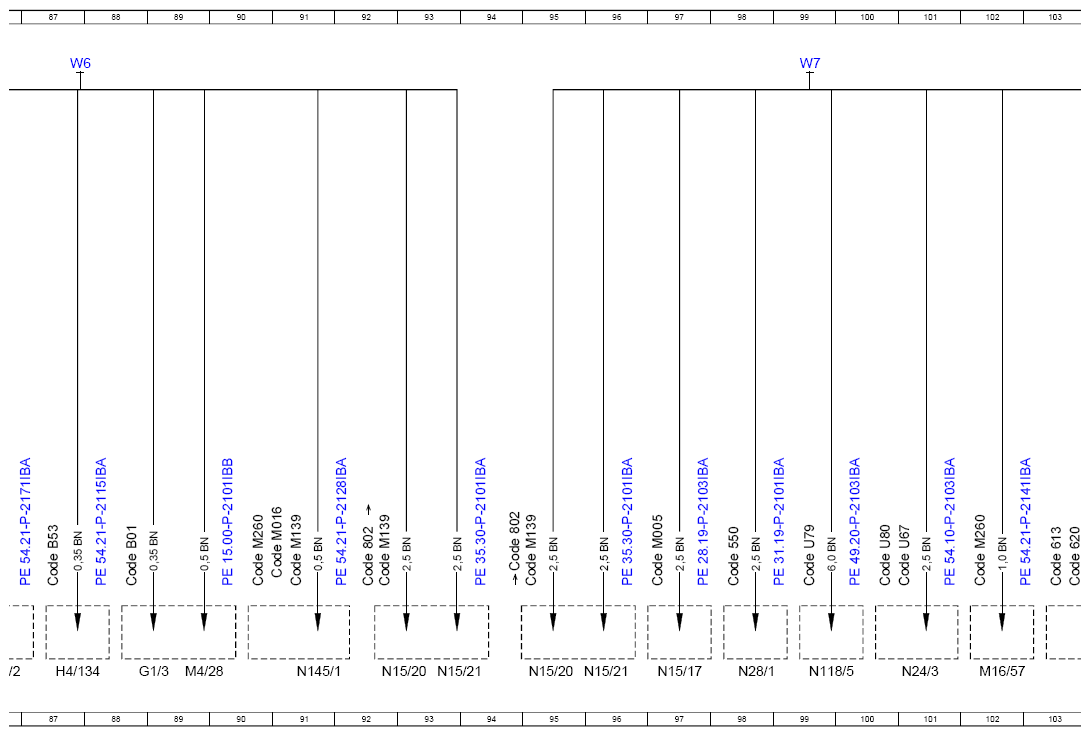

| W2 | Right front engine compartment ground point | 4A |
| W2 | Right front engine compartment ground point | 10A |
| W2 | Right front engine compartment ground point | 17A |
| W2/8 | Engine ground point | 20A |
| W3/1 | Ground point (right front wheel well) | 23A |
| W3/1 | Ground point (right front wheel well) | 30A |
| W3/1 | Ground point (right front wheel well) | 35A |
| W3/2 | Left front wheel arch ground point | 41A |
| W3/2 | Left front wheel arch ground point | 50A |
| W3/2 | Left front wheel arch ground point | 58A |
| W6 | Left wheel arch trunk ground point | 64A |
| W6 | Left wheel arch trunk ground point | 72A |
| W6 | Left wheel arch trunk ground point | 80A |
| W6 | Left wheel arch trunk ground point | 87A |
| W7 | Right wheelhouse trunk ground point | 99A |
| W7 | Right wheelhouse trunk ground point | 104A |
| W7 | Right wheelhouse trunk ground point | 113A |
| W7 | Right wheelhouse trunk ground point | 121A |
| W7 | Right wheelhouse trunk ground point | 128A |
| X192/5x1 | Low-temperature cooling system electrical connector | 47L |
| X192x1 | Low-temperature cooling system electrical connector | 49L |
| X26/38x1 | Front bumper electrical connector | 4L |
| X26/38x1 | Front bumper electrical connector | 3L |
| X26/38x1 | Front bumper electrical connector | 5L |
| X26/40x1 | Rear frame floor assembly/bumper electrical connector | 67L |
| X272x1 | Radiator trim flap electrical connector | 2L |
| X30/38 | Drive train sensor CAN (CAN I) potential distributor | 22L |
| X58/12x1 | Luggage compartment socket | 71L |
| X62/6x1 | Front axle electrical connector, right distributor | 34L |
| Y16 | Stationary heater switchover valve | 36L |
| Z6/56z1 | Circuit 31 connector sleeve | 63L |
