Check Manual Operating Mechanism For Combination/Cruise Control Lever Routing) - AP86.20-P-8654C
Model 156, 169, 172, 176, 177, 204, 205, 206, 207, 212, 213, 214, 218, 221, 222, 223, 238, 243, 245, 246, 247, 253, 254, 257, 293
with code 45P (Disability conversion - Sales control code)

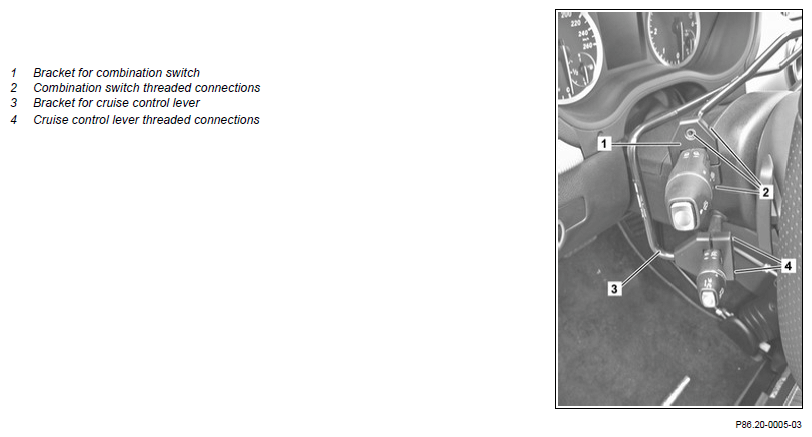

Shown in model 176
| Check | |||
| 1 | Check combination switch bracket (1) for tight seating. | ||
| 2 | Check cruise control lever bracket (3) for tight seating. | ||
| 3 | Check combination switch threaded connections (2) at combination switch bracket (1) for tight seating. | If the combination switch threaded connections (2) are not adequately fastened, ↓ Retighten threaded connections for combination switch (2). |
|
| 4 | Check cruise control lever threaded connections (4) at cruise control lever bracket (3) for tight seating. | If the cruise control lever threaded connections (4) are not adequately fastened, ↓ Retighten threaded connections for cruise control lever (4). |
