Remove/Install Oil Pan Of Dual-Clutch Transmission - AR27.10-P-7032MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Transmission 724.0 in model 118, 177, 247
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Remove air filter housing. | AR09.10-P-1150MFC | |

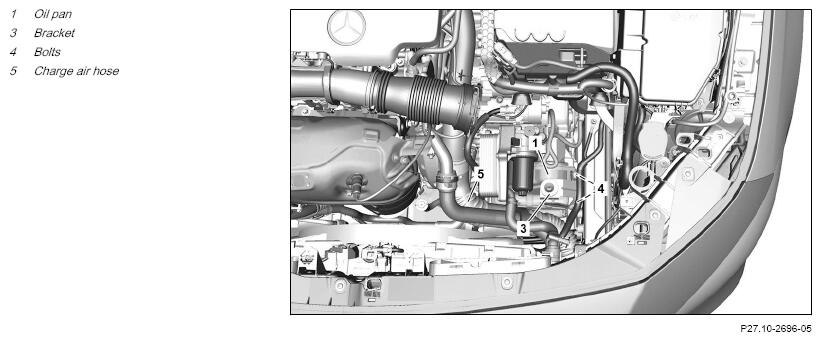

| 2 | Remove charge air hose (5). | AR09.41-P-1311-01AL | |
| 3 | Unscrew screws (4) and remove holder (3). | *BA09.10-P-1001-01Q | |
| 4 | Drain fluid from transmission. | ||
| AP27.00-P-2707NK | |||

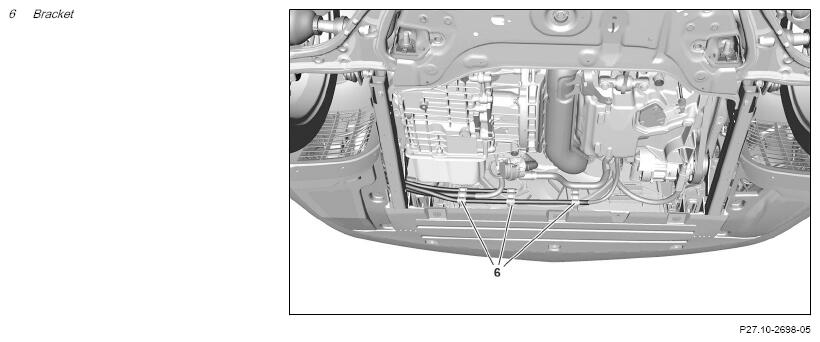

| 5 | Unclip holder (6) of electric line from radiator support and place onto radiator support. | ||

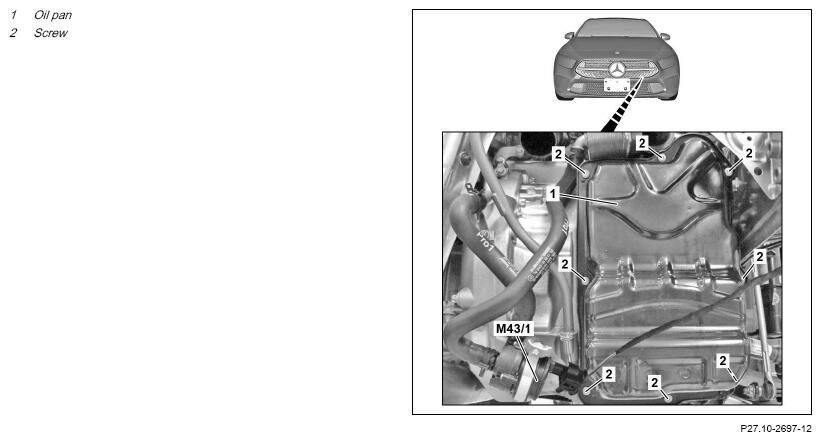

| 6 | Unscrew screws (2) and remove oil pan (1) from transmission. | *BA27.10-P-1002-03C | |
| Clean | |||
| 7 | Clean sealing surface on transmission as well as the oil pan (1). | AR01.00-P-0050-01A | |
| Loctite 7200 | *BR00.45-Z-1038-04A | ||
| Loctite 7063 (400 ml) cleaning spray | *BR00.45-Z-1046-04A | ||
| 8 | Install in the reverse order. | ||
| Check | |||
| 9 | Check oil level of automatic transmission, and correct if necessary. | AR27.00-P-0104MFC | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| Risk of burn injuries
, suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. |
Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. Use |
AS49.00-Z-0001-01A | |
| 10 | Perform engine test run and check transmission for proper operation and leak tightness. |
AIR FILTER
| Number | Designation | Engine 260 | ||
|---|---|---|---|---|
| BA09.10-P-1001-01Q | Screw/bolt, air filter housing bracket to body | M8 | Nm | 20 |
OIL PAN, AUTOMATIC TRANSMISSION
| Number | Designation | Transmission 724.0 | |
|---|---|---|---|
| BA27.10-P-1002-03C | Bolt, oil pan to transmission housing | Nm | 8 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1038-04A | Loctite 7200 | A 010 989 90 71 |
| BR00.45-Z-1046-04A | Loctite 7063 (400 ml) cleaning spray | A 001 986 71 71 09 |
