Release Retaining Rings On Drive/Output Shafts - AR27.10-P-0510-02MFA

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Transmission 724.1 in model 118, 177, 247

Fig 1: Identifying Spreader (724 589 00 37 00)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

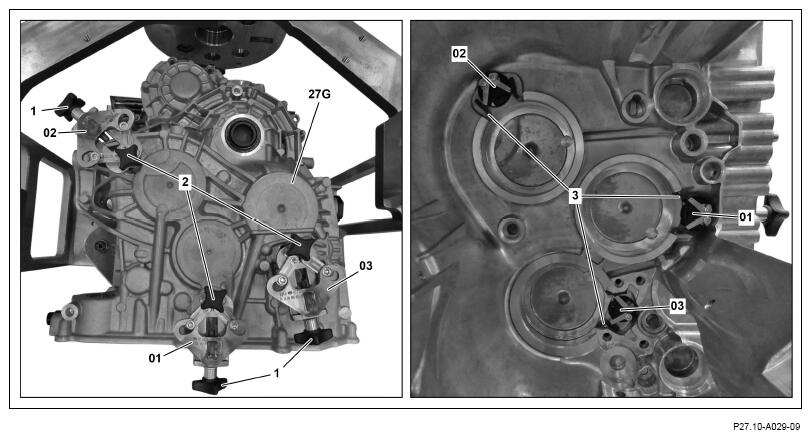

Assign the spreader tool as shown in the graphic:

Spreader tool (01) (724 589 00 37 01)
Spreader tool (02) (724 589 00 37 02)
Spreader tool (03) (724 589 00 37 03)

Check whether the spreader tools (01, 02, 03) are fully detensioned at the side screws (1); detension if necessary.
Attach/detach the spreader tools (01, 02, 03) only when released.

Otherwise the transmission housing (27G) will be damaged.
Insert the spreader tools (01, 02, 03) into the openings of the transmission housing (27G) as shown in the picture.
The spreader tools (01, 02, 03) must point toward the center of the respective shaft.
Lock the spreader tools (01, 02, 03) on the transmission housing (27G) by turning the upper screws (2).
Unlock the retaining rings (3) by turning the side screw (1) of the spreader tools (01, 02, 03).
