Fasten Removed Transmission To Assembly Stand - AR27.10-P-0600-01MFA

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Transmission 724.1 in model 118, 177, 247

Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notes on automatic transmission		AH27.19-P-0001-01NKB
000 588 27 31 00 Assembly stand for cars		WS01.00-P-0262B

Fig 1: Identifying Assembly Device (724 589 06 40 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Assembly Device (724 589 05 40 00)

Courtesy of MERCEDES-BENZ USA

Use the following special tools: assembly device (027), assembly device (027W)

Shown on transmission 724.1 with code M005 (4MATIC)

Courtesy of MERCEDES-BENZ USA

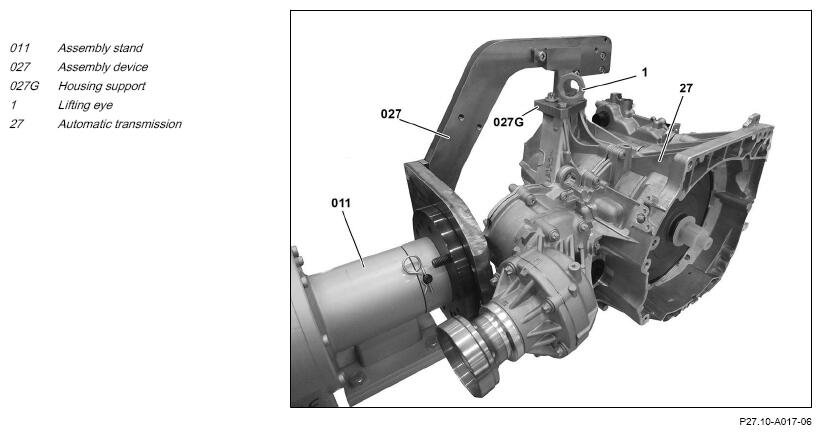

Attach assembly device (027) to assembly stand (011).
Secure housing support (027G) of assembly device (027) at automatic transmission (27).
The housing support (027G) is the part from the assembly device (027) with end number 03.
Hook boom crane onto lifting lug (1) and position automatic transmission (27) on assembly device (027).
Commercially available devices/tools

Boom crane

Ensure housing support (027G) is correctly seated on assembly device (027) and tighten clamp screws.
Attach automatic transmission (27) together with housing support (027G) to assembly device (027) using boom crane and tighten screws.
Perform operation steps 5 to 9 to remove the shaft package or transmission housing.

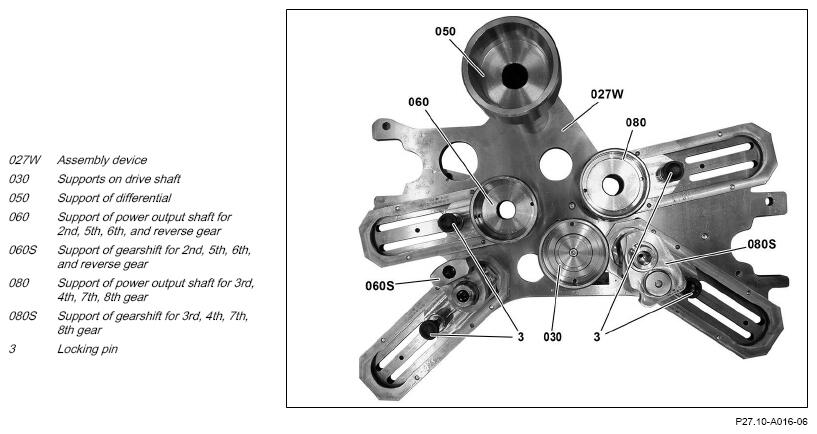

Move supports on assembly device (027W) into basic position. To do so, lift safety pins (3) and slide support to center of assembly device (027W).

Courtesy of MERCEDES-BENZ USA

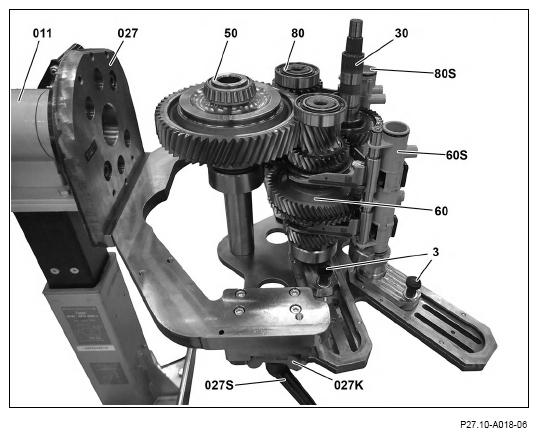

Attach assembly device (027W) to assembly device (027) and automatic transmission (27).
Secure assembly device (027W) to assembly device (027) using clamp screws (027S) and clamping supports (027K).
Rotate assembly device (027) through 180°.
Remove transmission housing.
If necessary, move shafts and gearshifts apart.

To do so, pull the locking pin (3) upwards and slide the support outwards.

Courtesy of MERCEDES-BENZ USA
