Dual-Clutch Transmission ATF Temperature Sensor, Basic Function - GF27.19-P-2000A

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model All with transmission 700.4, 724.0/1

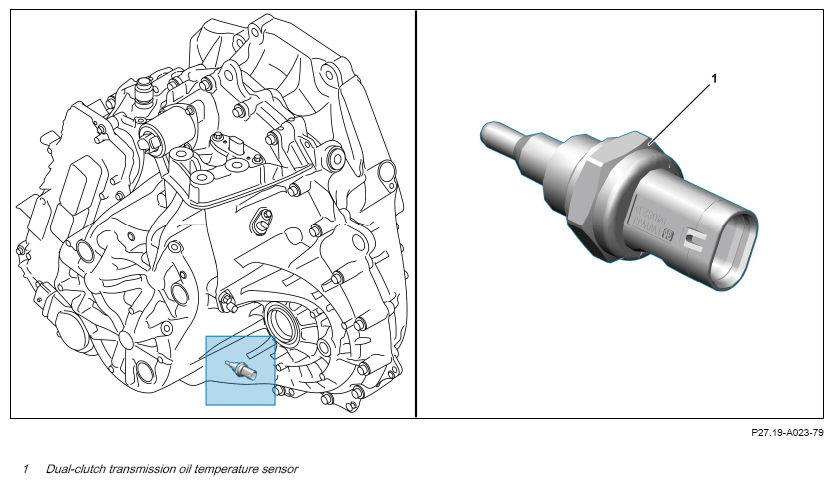

Fig 1: Dual-Clutch Transmission ATF Temperature Sensor Components Location - Model All With Transmission 724.0/1

Courtesy of MERCEDES-BENZ USA

Example illustration of temperature sensor

Overview

This document contains information on:

General
Function

General

The transmission oil temperature sensor continuously measures the transmission oil temperature. The dual-clutch transmission oil temperature sensor is located at the housing of the dual-clutch transmission or is implemented in the fully integrated transmission control electrohydraulic controller unit.

Function

The measured transmission oil temperature is continuously forwarded to the fully integrated transmission control electrohydraulic controller unit or to the dual-clutch transmission control unit.

The measured transmission oil temperature is continuously forwarded to the dual-clutch transmission control unit or to the fully integrated transmission control electrohydraulic controller unit.
