Detailed Information On Power Flow Path For Dual-Clutch Transmission - GF27.10-P-1101A
Transmission 724.033/044/045
Overview
This document contains information on:
- General
- Function requirements
- Function
- Force flux in 1st gear
- Force flux in 2nd gear
- Force flux in 3rd gear
- Force flux in 4th gear
- Force flux in 5th gear
- Force flux in 6th gear
- Force flux in 7th gear
- Force flux in reverse gear
General
The engine torque is transferred from the combustion engine crankshaft to the two-mass flywheel.
The two-mass flywheel transfers the engine torque to the engaged coupling K1 (internal shaft) or to coupling K2 (hollow shaft) of the dual clutch.
Function requirements
- Engine management ON (circuit 87M)
- Engine in operation
- Transmission control not in limp-home mode
Function
The dual clutch acts as an interface between the combustion engine and the dual-clutch transmission and allows virtually uninterrupted torque transfer during shift operations.
The drive torques from the clutches are transferred to the internal shaft and hollow shaft positively via ring gear profiles. The drive forces are transferred to power output shafts 1 or 2 (depending on the required gear) via the gearwheel connections.
Force flux in 1st gear, shown on transmission 724.0
Force flux in 1st gear
The following mechanical components and regulation valves are actuated or engaged for the force flux in 1st gear:
- K1 coupling regulation valve
- Gear control regulation valve (1st/5th gear)
- K1 clutch
- Shift fork 1 (1st/5th gear)
- Multiple cone synchronization
The torque is transferred from the internal shaft fixed gear (12) of the internal shaft (1) to the idler gear (1st gear) (16) of power output shaft 1 (3).
The output torque is transferred from the power output shaft fixed gear 1 (19) to the spur gear (20) of the bevel gear differential. The bevel gear differential is connected through the front drive shafts to the front wheels.
Force flux in 2nd gear, shown on transmission 724.0
Force flux in 2nd gear
The following mechanical components and regulation valves are actuated or engaged for the force flux in 2nd gear:
- K2 coupling regulation valve
- Gear control regulation valve (2nd/4th gear)
- Clutch K2
- Shift fork 2 (2nd/4th gear)
- Multiple cone synchronization

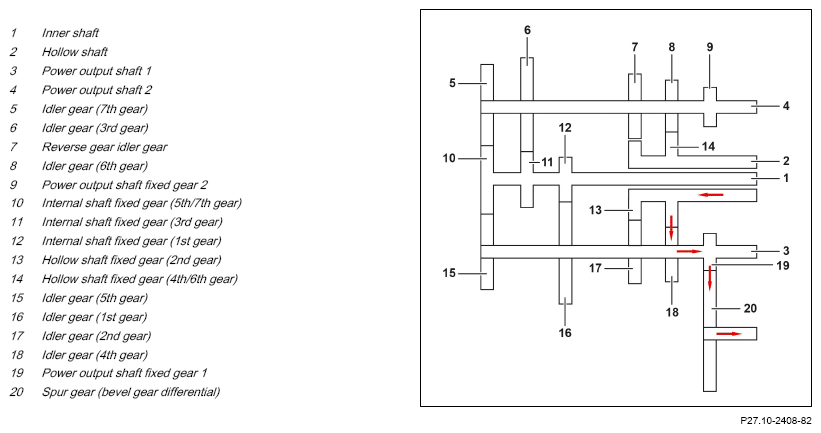

The torque is transferred from the hollow shaft fixed gear (13) to the idler gear (2nd gear) (17) of power output shaft 1 (3).
The drive torque is transferred from the power output shaft fixed gear 1 (19) to the spur gear (20) of the bevel gear differential. The bevel gear differential is connected through the front drive shafts to the front wheels.
Force flux in 3rd gear, shown on transmission 724.0
Force flux in 3rd gear
The following mechanical components and regulation valves are actuated or engaged for the force flux in 3rd gear:
- K1 coupling regulation valve
- Gear control regulation valve (3rd/7th gear)
- K1 clutch
- Shift fork 3 (3rd/7th gear)
- Multiple cone synchronization

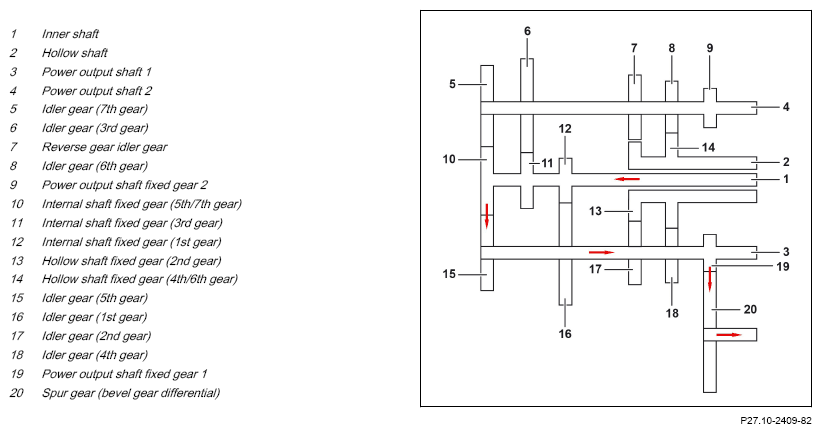

The torque is transferred from the internal shaft fixed gear (11) to the idler gear (3rd gear) (6) of power output shaft 2 (4).
The output torque is transferred from the power output shaft fixed gear 2 (9) to the spur gear (20) of the bevel gear differential. The bevel gear differential is connected through the front drive shafts to the front wheels.
Force flux in 4th gear, shown on transmission 724.0
Force flux in 4th gear
The following mechanical components and regulation valves are actuated or engaged for the force flux in 4th gear:
- K2 coupling regulation valve
- Gear control regulation valve (2nd/4th gear)
- Clutch K2
- Shift fork 2 (2nd/4th gear)
- Double-cone synchronizer

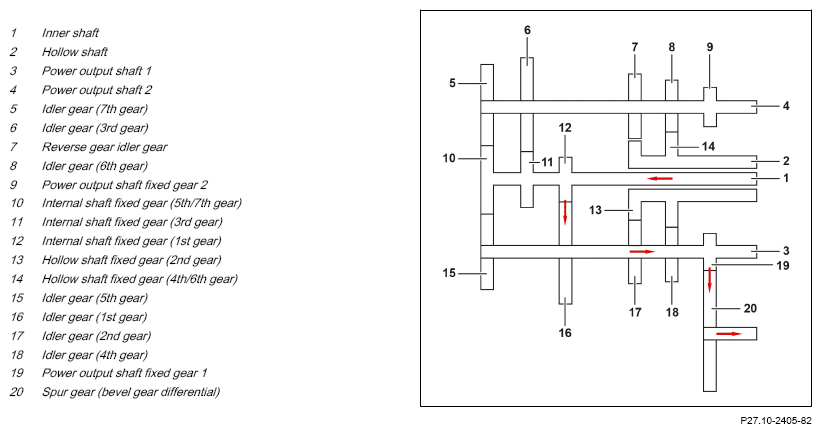

The torque is transferred from the hollow shaft fixed gear (14) to the idler gear (4th gear) (18) of power output shaft 1 (3).
The output torque is transferred from the power output shaft fixed gear 1 (19) to the spur gear (20) of the bevel gear differential. The bevel gear differential is connected through the front drive shafts to the front wheels.
Force flux in 5th gear, shown on transmission 724.0
Force flux in 5th gear
The following mechanical components and regulation valves are actuated or engaged for the force flux in 5th gear:
- K1 coupling regulation valve
- Gear control regulation valve (1st/5th gear)
- K1 clutch
- Shift fork 1 (1st/5th gear)
- Double-cone synchronizer

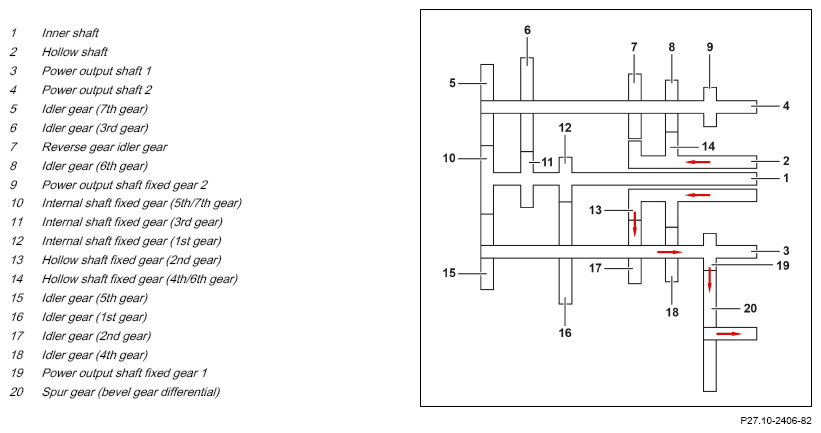

The torque is transferred from the internal shaft fixed gear (10) to the idler gear (5th gear) (15) of power output shaft 1 (3).
The output torque is transferred from the power output shaft fixed gear 1 (19) to the spur gear (20) of the bevel gear differential. The bevel gear differential is connected through the front drive shafts to the front wheels.
Force flux in 6th gear, shown on transmission 724.0
Force flux in 6th gear
The following mechanical components and regulation valves are actuated or engaged for the force flux in 6th gear:
- K2 coupling regulation valve
- Gear control regulation valve (6th gear/reverse gear)
- Clutch K2
- Shift fork 4 (6th gear/reverse gear)
- Double-cone synchronizer

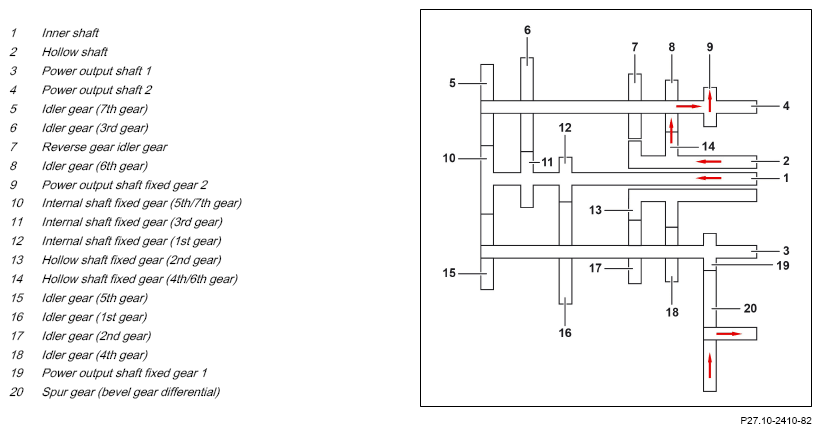

The torque is transferred from the hollow shaft fixed gear (14) to the idler gear (6th gear) (8) of power output shaft 2 (4).
The output torque is transferred from the power output shaft fixed gear 2 (9) to the spur gear (20) of the bevel gear differential. The bevel gear differential is connected through the front drive shafts to the front wheels.
Force flux in 7th gear, shown on transmission 724.0
Force flux in 7th gear
The following mechanical components and regulation valves are actuated or engaged for the force flux in 7th gear:
- K1 coupling regulation valve
- Gear control regulation valve (3rd/7th gear)
- K1 clutch
- Shift fork 3 (3rd/7th gear)
- Double-cone synchronizer

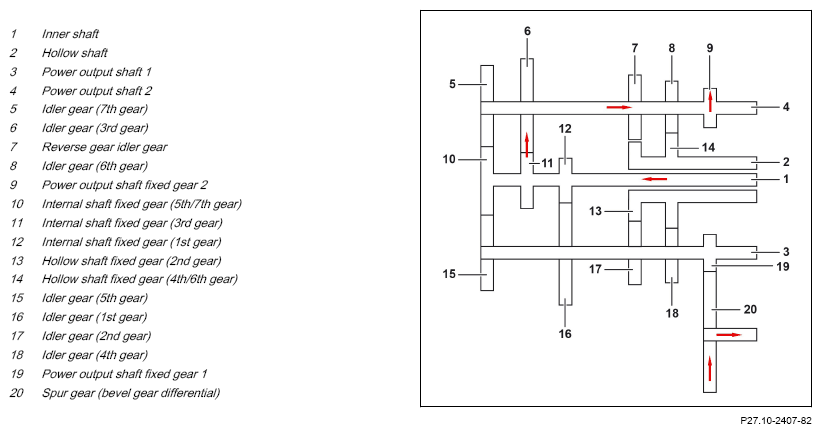

The torque is transferred from the internal shaft fixed gear (10) to the idler gear (7th gear) (5) of power output shaft 2 (4).
The output torque is transferred from the power output shaft fixed gear 2 (9) to the spur gear (20) of the bevel gear differential. The bevel gear differential is connected through the front drive shafts to the front wheels.
Force flux in reverse gear, shown on transmission 724.0
Force flux in reverse gear
The following mechanical components and regulation valves are engaged or are actuated for the force flux in reverse gear:
- Gear control regulation valve (1st/5th gear)
- Gear control regulation valve (6th gear/reverse gear)
- K2 coupling regulation valve
- Shift fork 1 (1st/5th gear)
- Shift fork 4 (6th gear/reverse gear)
- Clutch K2
- Multiple-cone/single-cone synchronizer

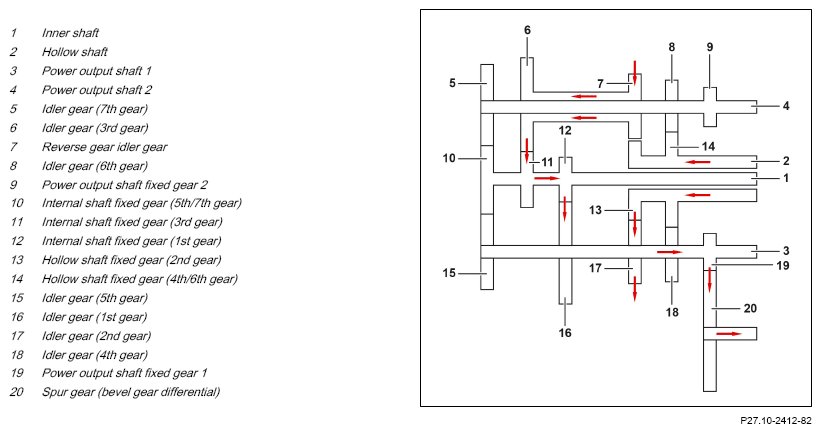

The torque is transferred from the hollow shaft fixed gear (13) to the idler gear (2nd gear) (17) of power output shaft 1 (3). The idler gear (2nd gear) (17) is not engaged; this means that it rotates freely on power output shaft 1 (3).
The idler gear (2nd gear) (17) is engaged at the same time with the reverse gear idler gear (7) of power output shaft 2 (4) and acts as a reversing gear. The direction of rotation reversal for the reverse gear is realized here.
The reverse gear idler gear (7) is locked with the idler gear (3rd gear) (6) and torque transfer via power output shaft 2 (4) does not occur.
The idler gear (3rd gear) (6) transfers the torque to the idler gear (1st gear) (16) of power output shaft 1 (3) via the internal shaft (1) with the internal shaft fixed gears (11, 12).
The output torque is transferred from the power output shaft fixed gear 1 (19) to the spur gear (20) of the bevel gear differential. The bevel gear differential is connected through the front drive shafts to the wheels.
The power output shaft fixed gears 1 and 2 (9, 19) are rigidly connected to the respective output shaft (3, 4). The gearwheels of gears 1 to 7 and the reverse gear are idler gears. They are braked by synchronization devices and positively connected to the respective power output shaft (3, 4).
