Remove/Install Rear Axle Differential Control Unit - AR35.30-P-0004MFG

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118, 177, 247 with engine 139

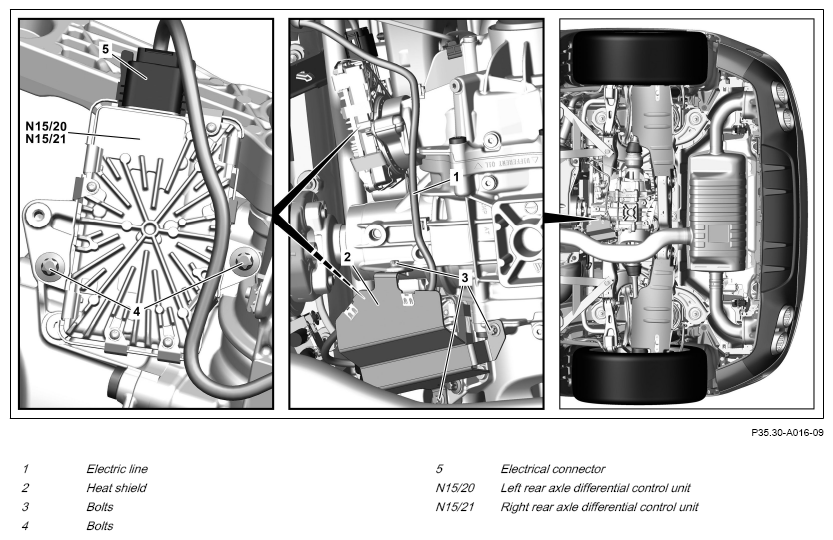

Fig 1: Rear Axle Differential Control Unit Components Location Model 118 (Shown On Model 177)
G16049153Courtesy of MERCEDES-BENZ USA

Shown on model 177

CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.		 AS00.00-Z-0017-01A
Topical note  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Topical note  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
REMOVINGINSTALLING Remove/install
1 Commission left rear axle differential control unit (N15/20) or right rear axle differential control unit (N15/21). When replacing left rear axle differential control unit (N15/20) or right rear axle differential control unit (N15/21).
REFER TO DIAGNOSTIC SYSTEMS     AD00.00-P-2000-06MFA
2 Lift vehicle with vehicle lift.   AR00.60-P-1006A
3 Remove electric line (1) from heat shield (2). If the right rear axle differential control unit (N15/21) is removed.
NOTES
Do not kink or stretch the electric line (1).
Otherwise damage will occur.
SPECIAL TOOL Dismantling tool		 Fig 2
4 Unscrew screws (3) and remove heat shield (2). If the right rear axle differential control unit (N15/21) is removed.
TORQUE SPECIFICATION M6x1		 *BA00.10-P-1002-04A
5 Clean working area. Assembly cleaner *BR00.45-Z-1028-04A
6 Release and disconnect electrical connector (5) from left rear axle differential control unit (N15/20) or right rear axle differential control unit (N15/21).
7 Remove screws (4) from left rear axle differential control unit (N15/20) or right rear axle differential control unit (N15/21). TORQUE SPECIFICATION Screw, rear axle differential control unit to rear axle differential *BA35.31-P-1008-07A
8 Remove left rear axle differential control unit (N15/20) or right rear axle differential control unit (N15/21). INSTALLATION NOTES
The guides of the left rear axle differential control unit (N15/20) or right rear axle differential control unit (N15/21) must engage in the groove of the drive shaft for the left clutch or right clutch.
Otherwise damage will occur.
9 Install in the reverse order.
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143

Number Designation 8.8 10.9
BA00.10-P-1002-04A M6x1 Nm 9 13
REAR AXLE GEAR

Number Designation Model 118 Model 177
BA35.31-P-1008-07A Screw, rear axle differential control unit to rear axle differential Nm 27 27
REAR AXLE GEAR

Number Designation Model 247
BA35.31-P-1008-07A Screw, rear axle differential control unit to rear axle differential Nm 27
Fig 2: Identifying Dismantling Tool (000 589 95 63 00)
G13659648Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner A 000 986 56 01
