Rear Axle Differential Sealant Path - GF35.31-P-0001-01MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 247 with engine 260, 282, 654
with code M005 (Vehicles with 4MATIC/all-wheel drive)
Apply sealant only along the lines (A) in the form of a bead with height of 1.5 mm and width of 2.0 mm (±1.0 mm).
Process the sealant within a period of 10 minutes.
Do not spread the sealant bead.
The sealing surfaces must be free of dirt, oil and grease.
Use only the sealant listed in the repair products.
Install component parts within a period of 10 minutes after sealant application.
Sealant path on clutch cover

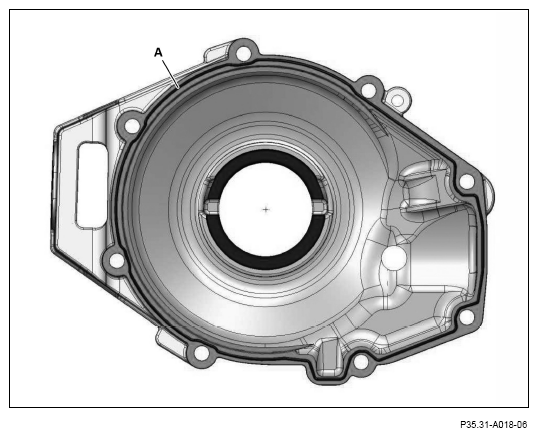

Sealant path on side cap
