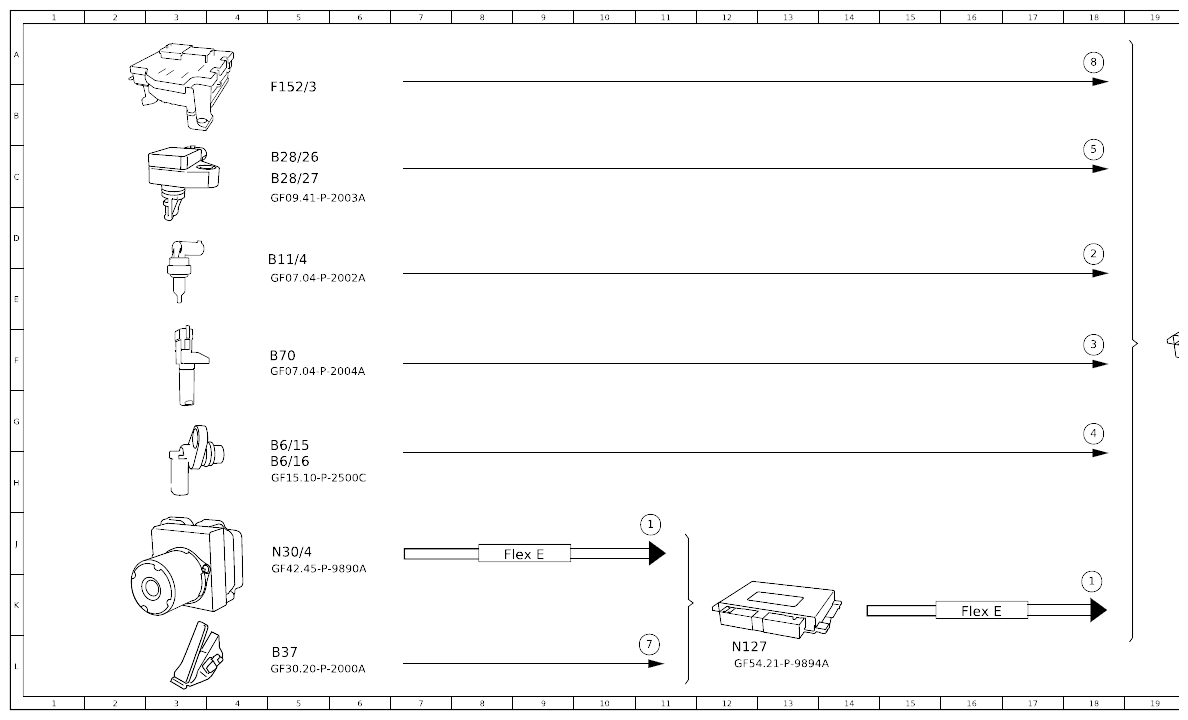

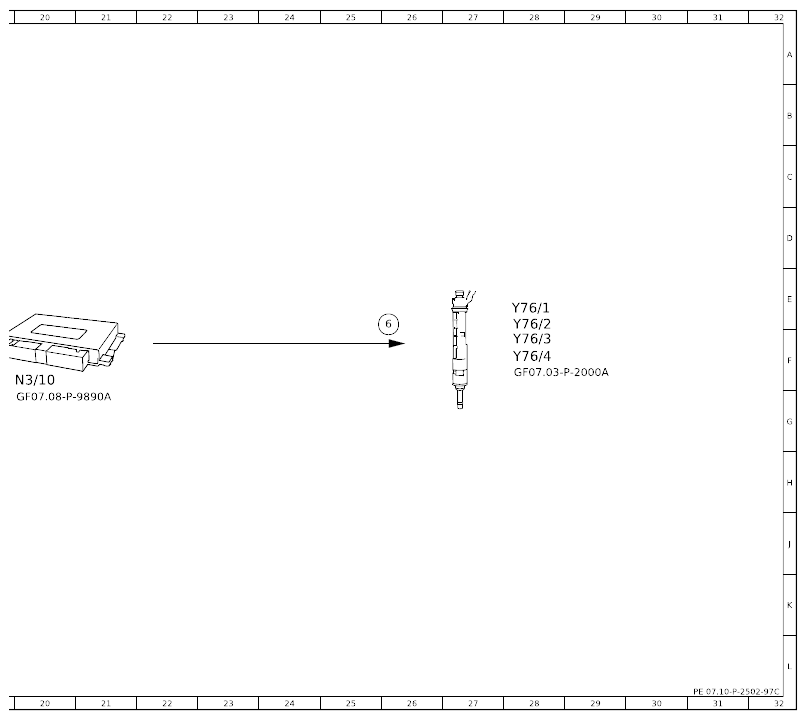

Function Schematic For Smooth Running Control - PE07.10-P-2502-97C
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 256 in model 213, 238 as of model year 2021
Engine 260 in model 118, 177, 247
Engine 264 in model 167
Engine 264 in model 213, 238, 257 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Wheel speed, signal | 11J |
| 1 | Wheel speed, signal | 18K |
| 2 | Coolant temperature sensor, signal | 18D |
| 3 | Engine speed, signal | 18F |
| 4 | Camshaft Hall sensor, signal | 18G |
| 5 | Engine load, signal | 18C |
| 6 | Fuel injectors, actuation | 25E |
| 7 | Accelerator pedal sensor, signal | 11L |
| 8 | Circuit 87, status | 18A |
| B11/4 | Coolant temperature sensor | 5D |
| B28/26 | Pressure and temperature sensor upstream of throttle valve | 5C |
| B28/27 | Pressure and temperature sensor downstream of throttle valve | 5C |
| B37 | Accelerator pedal sensor | 5L |
| B6/15 | Intake camshaft Hall sensor | 5G |
| B6/16 | Exhaust camshaft Hall sensor | 5H |
| B70 | Crankshaft Hall sensor | 5F |
| F152/3 | Engine compartment fuse and relay module | 5B |
| Flex E | Chassis FlexRay | 9J |
| Flex E | Chassis FlexRay | 16K |
| N127 | Drivetrain control unit | 12L |
| N3/10 | ME-SFI [ME] control unit | 20F |
| N30/4 | Electronic Stability Program control unit | 5J |
| Y76/1 | Cylinder 1 fuel injector | 28E |
| Y76/2 | Cylinder 2 fuel injector | 28E |
| Y76/3 | Cylinder 3 fuel injector | 28F |
| Y76/4 | Cylinder 4 fuel injector | 28F |
