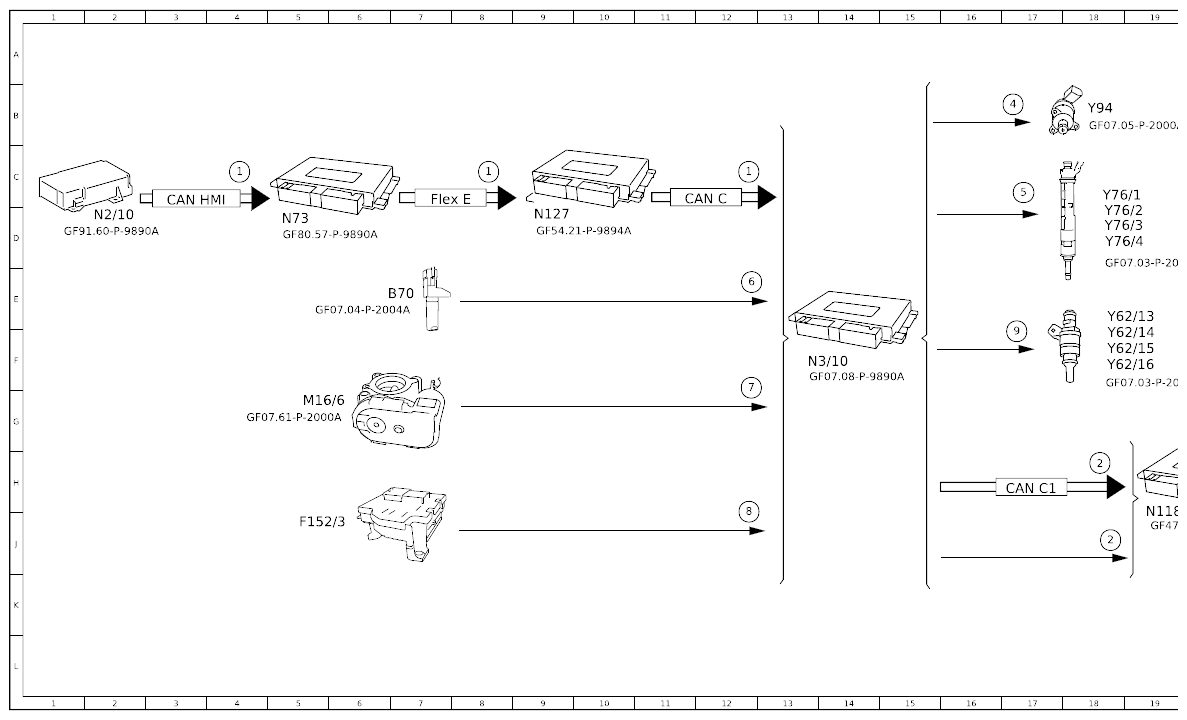

Function Schematic For Safety Fuel Shutoff - PE07.10-P-2503-97C
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 139 in model 118, 177, 247
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Crash, signal | 12C |
| 1 | Crash, signal | 8C |
| 1 | Crash, signal | 4C |
| 2 | Fuel pump, request OFF | 18H |
| 2 | Fuel pump, request OFF | 18J |
| 3 | Fuel pump, actuation OFF | 22H |
| 4 | Quantity control valve, actuation | 17B |
| 5 | Fuel injectors, actuation | 17C |
| 6 | Engine speed, signal | 12E |
| 7 | Throttle valve position, signal | 12F |
| 8 | Circuit 87, status | 12J |
| 9 | Injection valves, actuation | 17F |
| B70 | Crankshaft Hall sensor | 7E |
| CAN C | Engine CAN | 12C |
| CAN C1 | Drive train CAN | 17H |
| CAN HMI | User interface CAN | 3C |
| F152/3 | Engine compartment fuse and relay module | 5J |
| Flex E | Chassis FlexRay | 7C |
| M16/6 | Throttle valve actuator | 5G |
| M3 | Fuel pump (FP) | 23G |
| N118 | Fuel pump control unit | 19J |
| N127 | Drivetrain control unit | 9D |
| N2/10 | Supplemental restraint system control unit | 2D |
| N3/10 | ME-SFI [ME] control unit | 14F |
| N73 | Electronic ignition switch control unit | 5D |
| Y62/13 | Cylinder 1 injection valve, intake manifold | 18E |
| Y62/14 | Cylinder 2 injection valve, intake manifold | 18F |
| Y62/15 | Cylinder 3 injection valve, intake manifold | 18F |
| Y62/16 | Cylinder 4 injection valve, intake manifold | 18F |
| Y76/1 | Cylinder 1 fuel injector | 18C |
| Y76/2 | Cylinder 2 fuel injector | 18D |
| Y76/3 | Cylinder 3 fuel injector | 18D |
| Y76/4 | Cylinder 4 fuel injector | 18D |
| Y94 | Quantity control valve | 18B |
