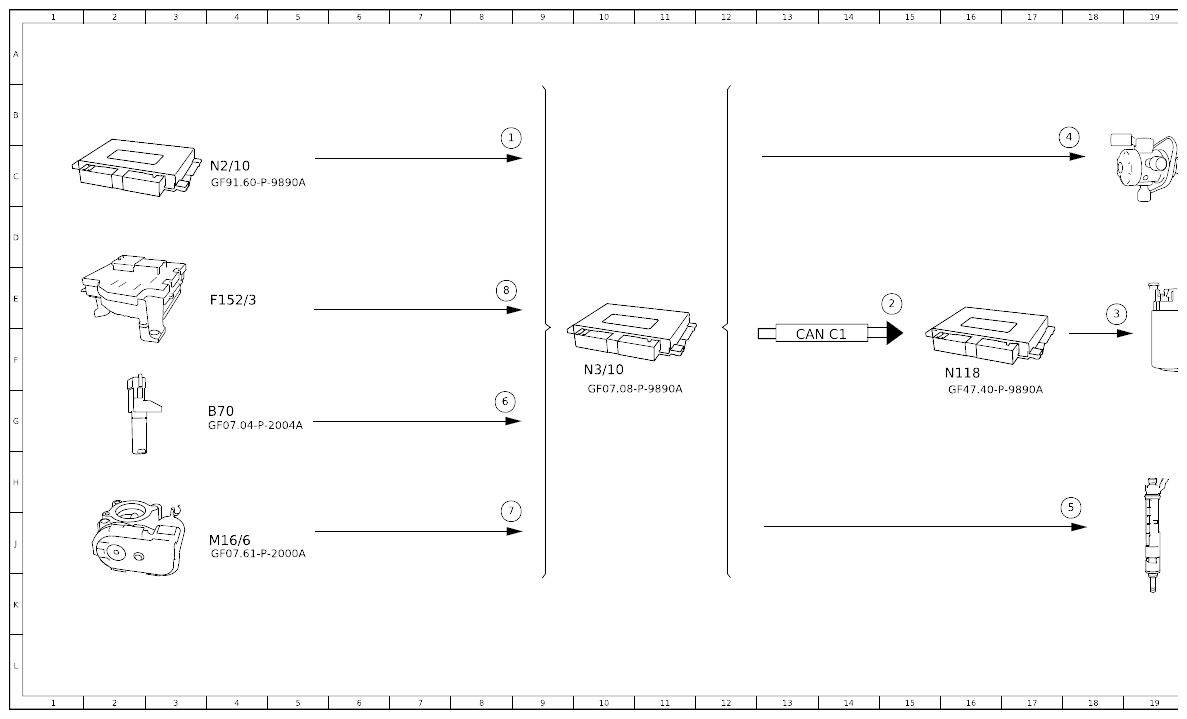

Function Schematic For Safety Fuel Shutoff - PE07.10-P-2503-97A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 260, 282, 608 in model 118, 177, 247
Engine 264 in model 167
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Crash, signal | 8B |
| 2 | Fuel pump, request OFF | 15E |
| 3 | Fuel pump, actuation OFF | 19E |
| 4 | Quantity control valve, actuation | 18B |
| 5 | Fuel injectors, actuation | 18H |
| 6 | Engine speed, signal | 8G |
| 7 | Throttle valve position, signal | 8H |
| 8 | Circuit 87, status | 8E |
| B70 | Crankshaft Hall sensor | 4G |
| CAN C1 | Drive train CAN | 13F |
| F152/3 | Engine compartment fuse and relay module | 4E |
| M16/6 | Throttle valve actuator | 4J |
| M3 | Fuel pump (FP) | 20F |
| N118 | Fuel pump control unit | 16F |
| N2/10 | Supplemental restraint system control unit | 4C |
| N3/10 | ME-SFI [ME] control unit | 10F |
| Y76/1 | Cylinder 1 fuel injector | 20H |
| Y76/2 | Cylinder 2 fuel injector | 20J |
| Y76/3 | Cylinder 3 fuel injector | 20J |
| Y76/4 | Cylinder 4 fuel injector | 20J |
| Y94 | Quantity control valve | 20C |
