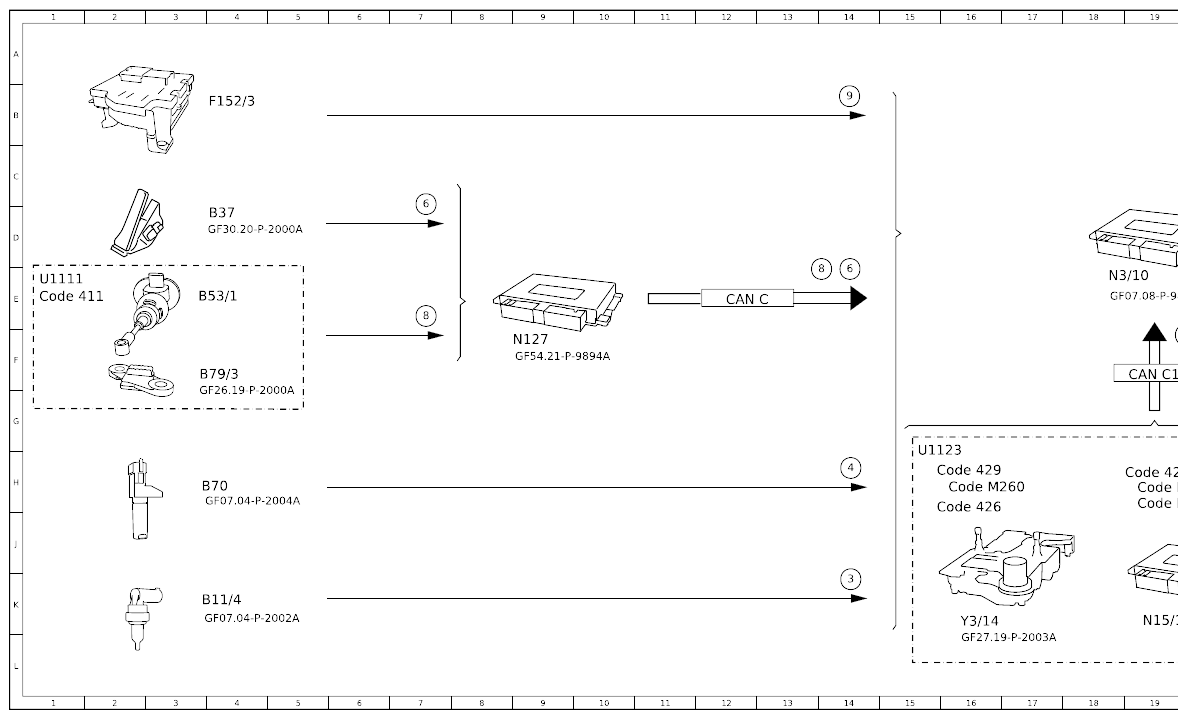

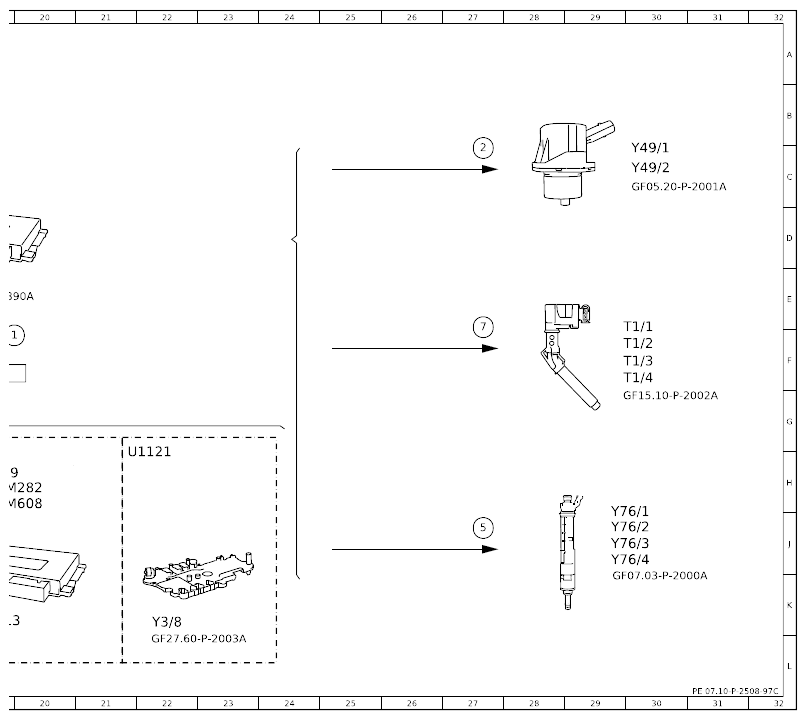

Function Schematic For Overrun Mode Fuel Shutoff - PE07.10-P-2508-97C
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 260, 282, 608 in model 118, 177, 247
Engine 264 in model 167
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Gear range, status | 20F |
| 2 | Camshaft solenoids, actuation | 27C |
| 3 | Coolant temperature sensor, signal | 14K |
| 4 | Engine speed, signal | 14H |
| 5 | Fuel injectors, actuation | 27J |
| 6 | Accelerator pedal sensor, signal | 14D |
| 6 | Accelerator pedal sensor, signal | 7C |
| 7 | Ignition coils, actuation | 27F |
| 8 | Clutch pedal switch, status | 7E |
| 8 | Clutch pedal switch, status | 14D |
| 9 | Circuit 87, status | 14A |
| B11/4 | Coolant temperature sensor | 4K |
| B37 | Accelerator pedal sensor | 4D |
| B53/1 | Clutch travel sensor with start enable switch | 4E |
| B70 | Crankshaft Hall sensor | 4H |
| B79/3 | Manual transmission main shifter shaft position sensor | 4F |
| CAN C | Engine CAN | 12E |
| CAN C1 | Drive train CAN | 19F |
| Code 411 | 6-SPEED MANUAL TRANSMISSION | 1E |
| Code 426 | 8G-DCT | 15H |
| Code 429 | 7G-DCT | 15H |
| Code 429 | 7G-DCT | 19H |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 16H |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 19H |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 19H |
| F152/3 | Engine compartment fuse and relay module | 4B |
| N127 | Drivetrain control unit | 9F |
| N15/13 | Double clutch transmission control unit | 19K |
| N3/10 | ME-SFI [ME] control unit | 18E |
| T1/1 | Cylinder 1 ignition coil | 29F |
| T1/2 | Cylinder 2 ignition coil | 29F |
| T1/3 | Cylinder 3 ignition coil | 29F |
| T1/4 | Cylinder 4 ignition coil | 29F |
| U1111 | Valid for model 177 | 1E |
| U1121 | Valid for model 167 | 21H |
| U1123 | Valid for model 118, 177, 247 | 15H |
| Y3/14 | Dual clutch transmission fully integrated transmission control electrohydraulic controller unit | 16K |
| Y3/8 | Fully integrated transmission control controller unit | 22K |
| Y49/1 | Intake camshaft solenoid | 30C |
| Y49/2 | Exhaust camshaft solenoid | 30C |
| Y76/1 | Cylinder 1 fuel injector | 29J |
| Y76/2 | Cylinder 2 fuel injector | 29J |
| Y76/3 | Cylinder 3 fuel injector | 29J |
| Y76/4 | Cylinder 4 fuel injector | 29J |
