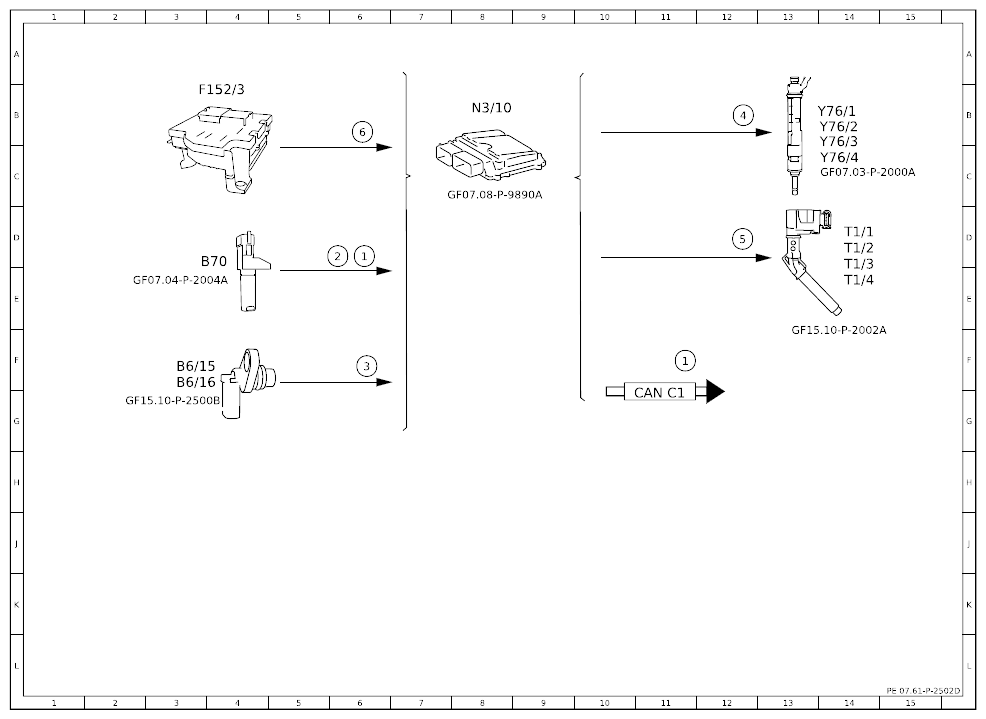

Function Schematic For ME Synchronization Of Fuel Injection And Firing Order - PE07.61-P-2502-97D
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 139 in model 118, 177, 247
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine speed, signal | 6D |
| 1 | Engine speed, signal | 11F |
| 2 | Crankshaft Hall sensor, signal | 6D |
| 3 | Camshaft Hall sensor, signal | 6F |
| 4 | Fuel injectors, actuation | 12B |
| 5 | Ignition coils, actuation | 12D |
| 6 | Circuit 87, status | 6B |
| B6/15 | Intake camshaft Hall sensor | 3F |
| B6/16 | Exhaust camshaft Hall sensor | 3F |
| B70 | Crankshaft Hall sensor | 4D |
| CAN C1 | Drive train CAN | 11G |
| F152/3 | Engine compartment fuse and relay module | 4B |
| N3/10 | ME-SFI [ME] control unit | 8B |
| T1/1 | Cylinder 1 ignition coil | 14D |
| T1/2 | Cylinder 2 ignition coil | 14D |
| T1/3 | Cylinder 3 ignition coil | 14E |
| T1/4 | Cylinder 4 ignition coil | 14E |
| Y76/1 | Cylinder 1 fuel injector | 14B |
| Y76/2 | Cylinder 2 fuel injector | 14B |
| Y76/3 | Cylinder 3 fuel injector | 14C |
| Y76/4 | Cylinder 4 fuel injector | 14C |
