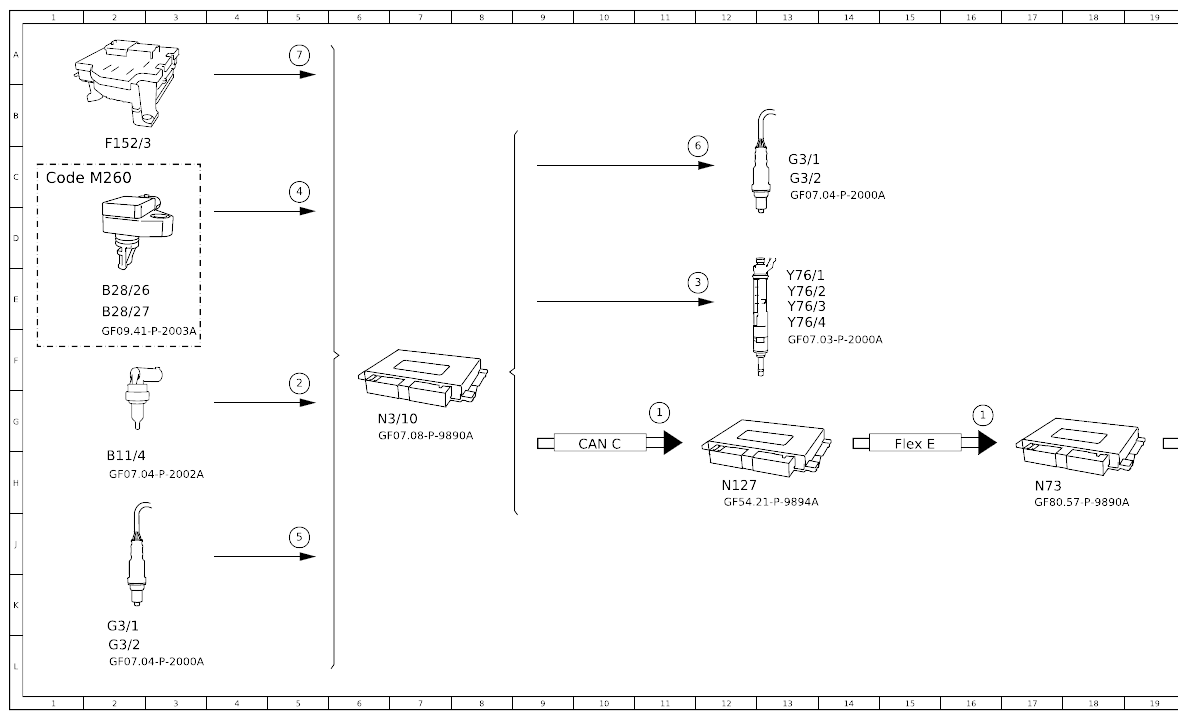

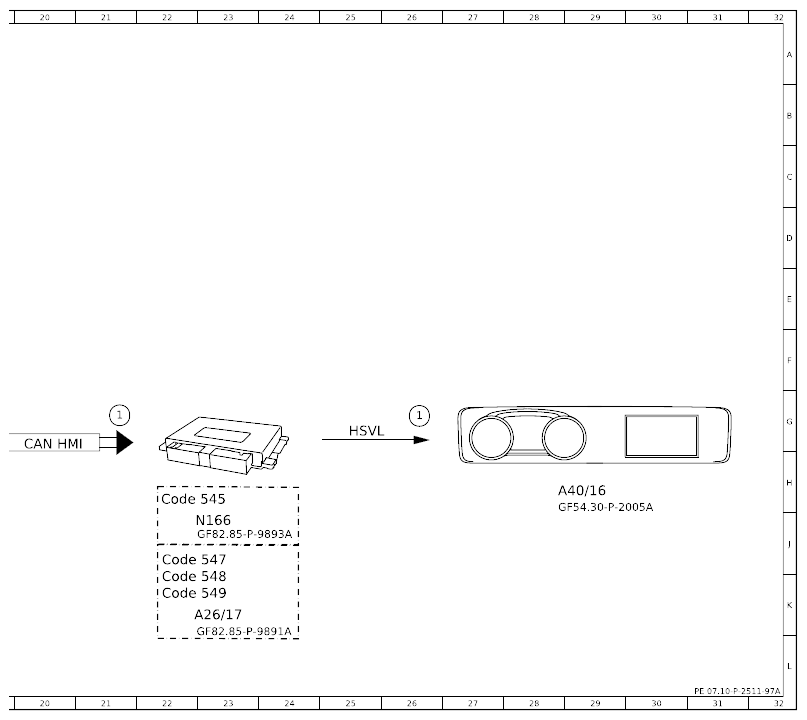

Function Schematic For Lambda Control - PE07.10-P-2511-97A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 260, 282 in model 118, 177, 247 up to model year 2023,
Engine 264 in model 167
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine diagnosis indicator lamp, actuation | 26G |
| 1 | Engine diagnosis indicator lamp, actuation | 21G |
| 1 | Engine diagnosis indicator lamp, actuation | 16G |
| 1 | Engine diagnosis indicator lamp, actuation | 11G |
| 2 | Coolant temperature sensor, signal | 5F |
| 3 | Fuel injectors, actuation | 11E |
| 4 | Engine load, signal | 5C |
| 5 | Oxygen sensor, sensor element, signal | 5J |
| 6 | Oxygen sensor heater, actuation | 11B |
| 7 | Circuit 87, status | 5A |
| A26/17 | Head unit | 23K |
| A40/16 | Head unit/instrument cluster display cluster | 29H |
| B11/4 | Coolant temperature sensor | 2H |
| B28/26 | Pressure and temperature sensor upstream of throttle valve | 2E |
| B28/27 | Pressure and temperature sensor downstream of throttle valve | 2E |
| CAN C | Engine CAN | 10G |
| CAN HMI | User interface CAN | 20G |
| Code 545 | Connect 5 (NTG6) | 22H |
| Code 547 | Connect 20 Entry (NTG6) | 22J |
| Code 548 | Connect 20 MID (NTG6) | 22K |
| Code 549 | Connect 20 HIGH (NTG6) | 22K |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 1C |
| F152/3 | Engine compartment fuse and relay module | 2C |
| Flex E | Chassis FlexRay | 15G |
| G3/1 | Oxygen sensor downstream of catalytic converter | 13C |
| G3/1 | Oxygen sensor downstream of catalytic converter | 2K |
| G3/2 | Oxygen sensor upstream of catalytic converter | 13C |
| G3/2 | Oxygen sensor upstream of catalytic converter | 2L |
| HSVL | High-speed video link | 25G |
| N127 | Drivetrain control unit | 12H |
| N166 | Head unit/instrument cluster control unit | 23J |
| N3/10 | ME-SFI [ME] control unit | 6G |
| N73 | Electronic ignition switch control unit | 17H |
| Y76/1 | Cylinder 1 fuel injector | 13E |
| Y76/2 | Cylinder 2 fuel injector | 13E |
| Y76/3 | Cylinder 3 fuel injector | 13E |
| Y76/4 | Cylinder 4 fuel injector | 13E |
