Function Schematic For Ignition ON - PE07.10-P-2505-97E
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 139 in model 118, 177, 247

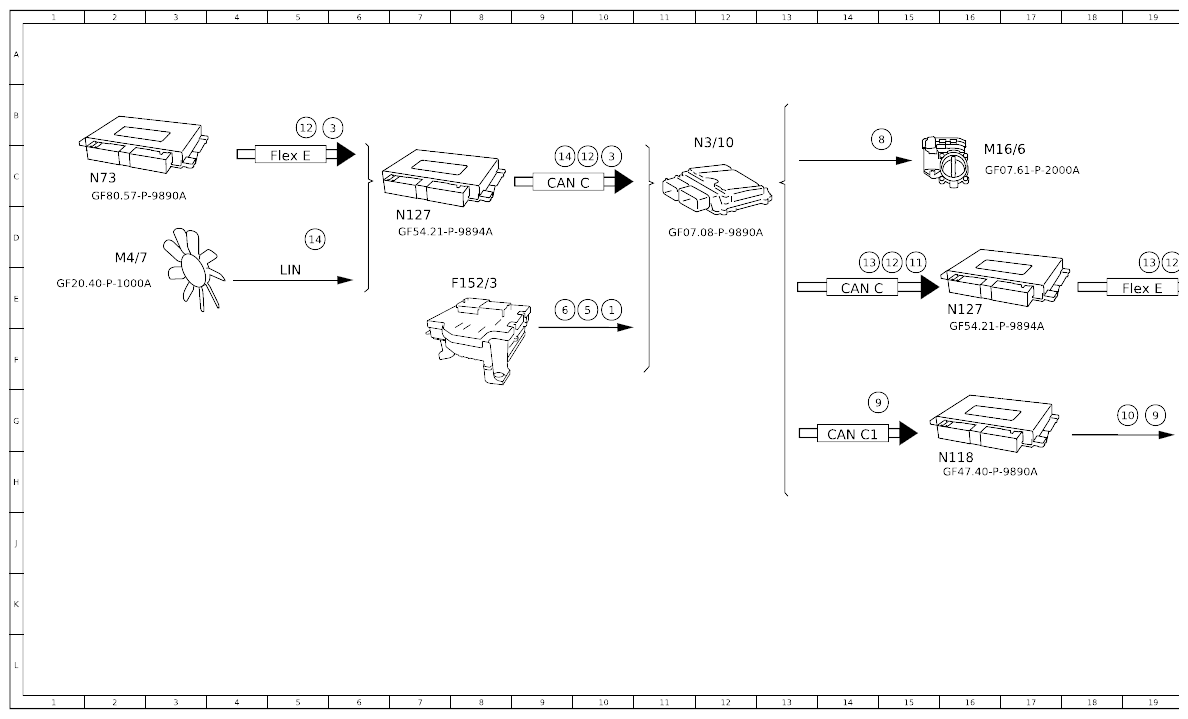

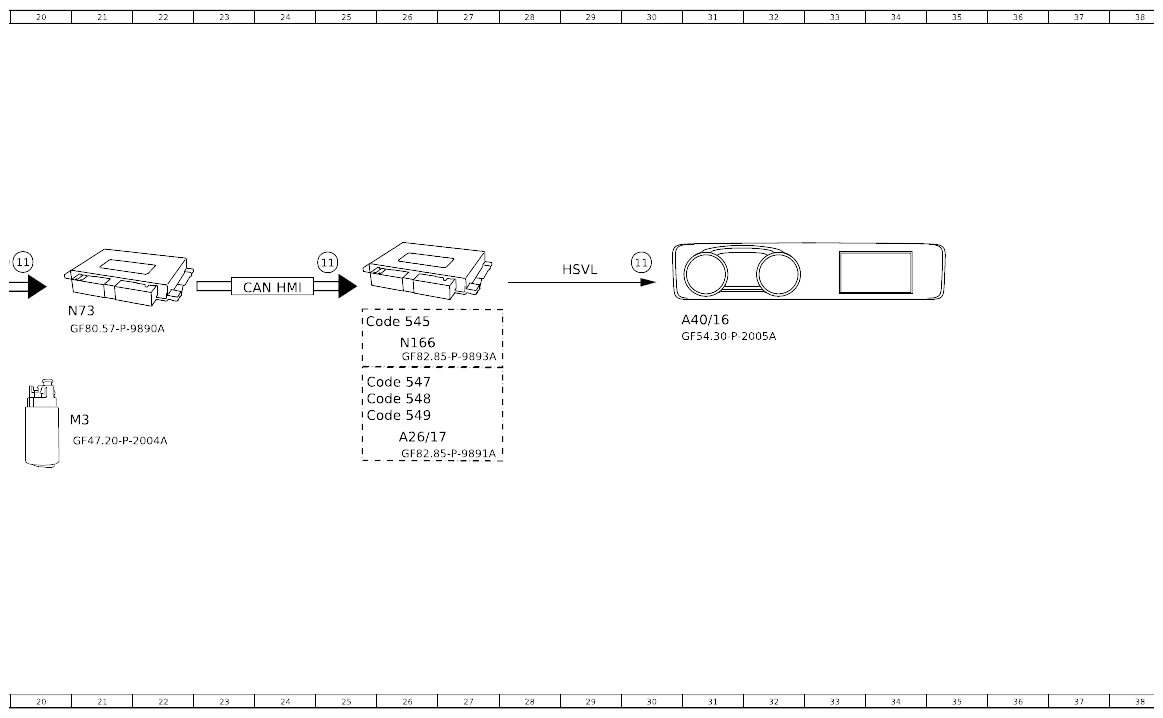

| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, request ON | 10E |
| 10 | Fuel pump, actuation | 19G |
| 11 | Engine diagnosis indicator lamp, actuation | 15D |
| 11 | Engine diagnosis indicator lamp, actuation | 25D |
| 11 | Engine diagnosis indicator lamp, actuation | 20D |
| 11 | Engine diagnosis indicator lamp, actuation | 30D |
| 12 | Correction programming, communication | 10C |
| 12 | Correction programming, communication | 15D |
| 12 | Correction programming, communication | 19D |
| 12 | Correction programming, communication | 5B |
| 13 | Fan motor, actuation | 14D |
| 13 | Fan motor, actuation | 19D |
| 14 | Fan motor, status | 9C |
| 14 | Fan motor, status | 5D |
| 3 | Circuit 15, status ON | 6B |
| 3 | Circuit 15, status ON | 10B |
| 5 | Circuit 30, status | 10E |
| 6 | Circuit 87, status | 9E |
| 8 | Actuator motor, throttle valve actuator, actuation | 14B |
| 9 | Fuel pump, request ON | 15G |
| 9 | Fuel pump, request ON | 19G |
| A26/17 | Head unit | 26G |
| A40/16 | Head unit/instrument cluster display cluster | 31E |
| CAN C | Engine CAN | 9C |
| CAN C | Engine CAN | 14E |
| CAN C1 | Drive train CAN | 14G |
| CAN HMI | User interface CAN | 24E |
| Code 545 | Connect 5 (NTG6) | 25E |
| Code 547 | Connect 20 Entry (NTG6) | 25F |
| Code 548 | Connect 20 MID (NTG6) | 25G |
| Code 549 | Connect 20 HIGH (NTG6) | 25G |
| F152/3 | Engine compartment fuse and relay module | 8E |
| Flex E | Chassis FlexRay | 5C |
| Flex E | Chassis FlexRay | 19E |
| HSVL | High-speed video link | 29E |
| LIN | Local Interconnect Network | 5E |
| M16/6 | Throttle valve actuator | 16C |
| M3 | Fuel pump (FP) | 21G |
| M4/7 | Fan motor | 2D |
| N118 | Fuel pump control unit | 16H |
| N127 | Drivetrain control unit | 7D |
| N127 | Drivetrain control unit | 16E |
| N166 | Head unit/instrument cluster control unit | 26F |
| N3/10 | ME-SFI [ME] control unit | 12C |
| N73 | Electronic ignition switch control unit | 2C |
| N73 | Electronic ignition switch control unit | 21E |
