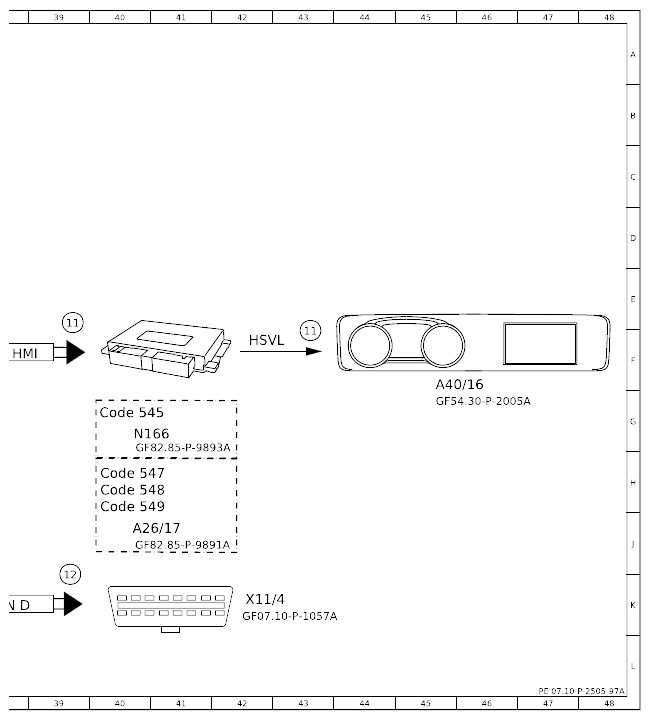

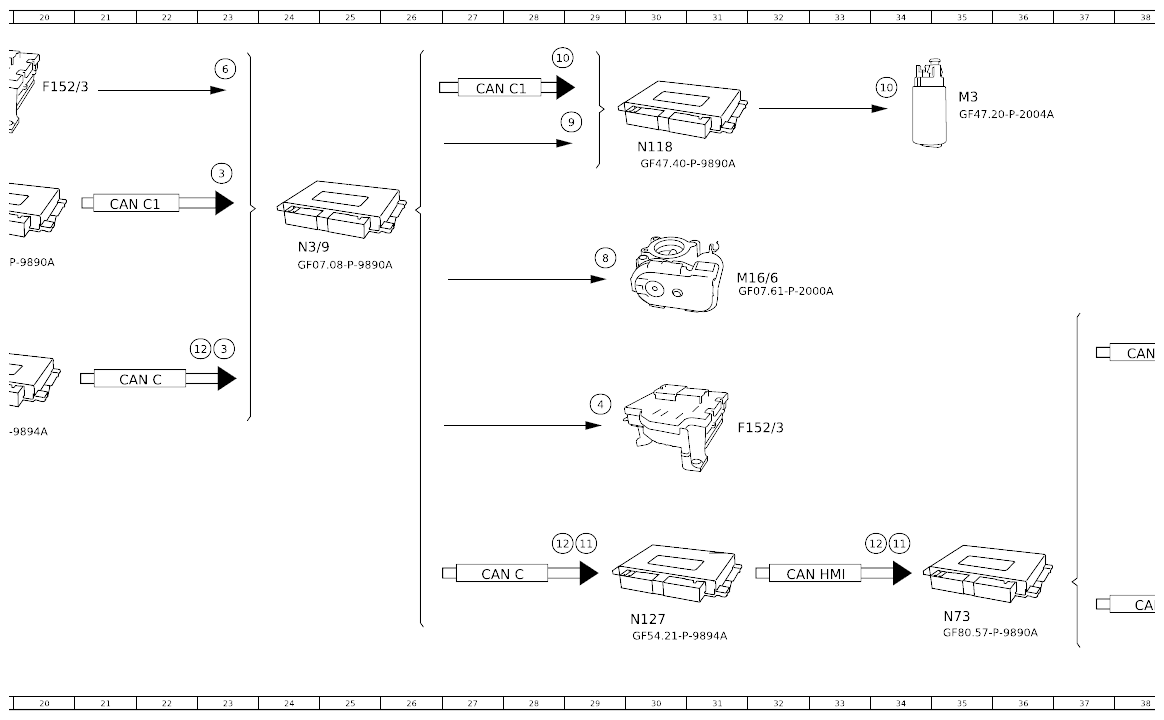

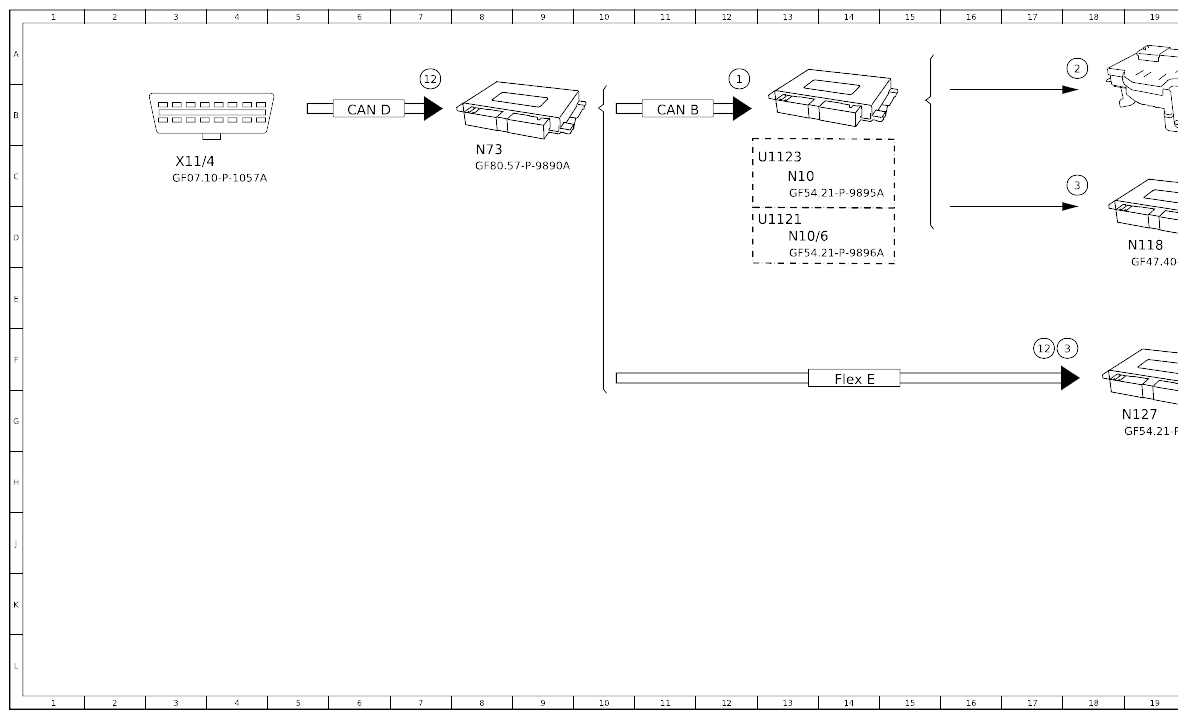

Function Schematic For Ignition ON - PE07.10-P-2505-97A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 260, 282, 608 in model 118, 177, 247
Engine 264 in model 167
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, request ON | 12A |
| 10 | Correction programming, communication | 28A |
| 11 | Engine diagnosis indicator lamp, actuation | 29J |
| 11 | Engine diagnosis indicator lamp, actuation | 34J |
| 11 | Engine diagnosis indicator lamp, actuation | 39E |
| 11 | Engine diagnosis indicator lamp, actuation | 43F |
| 12 | Correction programming, communication | 7A |
| 12 | Correction programming, communication | 28J |
| 12 | Correction programming, communication | 34J |
| 12 | Correction programming, communication | 39K |
| 12 | Correction programming, communication | 23E |
| 12 | Correction programming, communication | 17E |
| 2 | Circuit 15 relay, actuation | 18A |
| 3 | Circuit 15, status ON | 23E |
| 3 | Circuit 15, status ON | 17E |
| 3 | Circuit 15, status ON | 23C |
| 3 | Circuit 15, status ON | 18C |
| 4 | Combustion engine circuit 87 relay, actuation | 29G |
| 6 | Circuit 87, status | 23A |
| 8 | Actuator motor, throttle valve actuator, actuation | 29D |
| 9 | Fuel pump, request ON | 29B |
| A26/17 | Head unit | 40J |
| A40/16 | Head unit/instrument cluster display cluster | 45F |
| CAN B | Interior CAN | 11B |
| CAN C | Engine CAN | 21F |
| CAN C | Engine CAN | 27K |
| CAN C1 | Drive train CAN | 21D |
| CAN C1 | Drive train CAN | 27B |
| CAN D | Diagnostic CAN | 6B |
| CAN D | Diagnostic CAN | 38K |
| CAN HMI | User interface CAN | 32K |
| CAN HMI | User interface CAN | 38F |
| Code 545 | Connect 5 (NTG6) | 40G |
| Code 547 | Connect 20 Entry (NTG6) | 40H |
| Code 548 | Connect 20 MID (NTG6) | 40H |
| Code 549 | Connect 20 HIGH (NTG6) | 40H |
| F152/3 | Engine compartment fuse and relay module | 20B |
| F152/3 | Engine compartment fuse and relay module | 32G |
| Flex E | Chassis FlexRay | 14F |
| HSVL | High-speed video link | 42F |
| M16/6 | Throttle valve actuator | 32E |
| M3 | Fuel pump (FP) | 35B |
| N10 | Central control module | 13C |
| N10/6 | Front central control unit | 13D |
| N118 | Fuel pump control unit | 19D |
| N118 | Fuel pump control unit | 30C |
| N127 | Drivetrain control unit | 19G |
| N127 | Drivetrain control unit | 30K |
| N166 | Head unit/instrument cluster control unit | 40G |
| N3/9 | CDI control unit | 24D |
| N73 | Electronic ignition switch control unit | 8C |
| N73 | Electronic ignition switch control unit | 35K |
| U1121 | Valid for model 1 67 | 13D |
| U1123 | Valid for model 1 18, 177, 247 | 13C |
| X11/4 | Diagnostic connector | 3C |
| X11/4 | Diagnostic connector | 42K |
