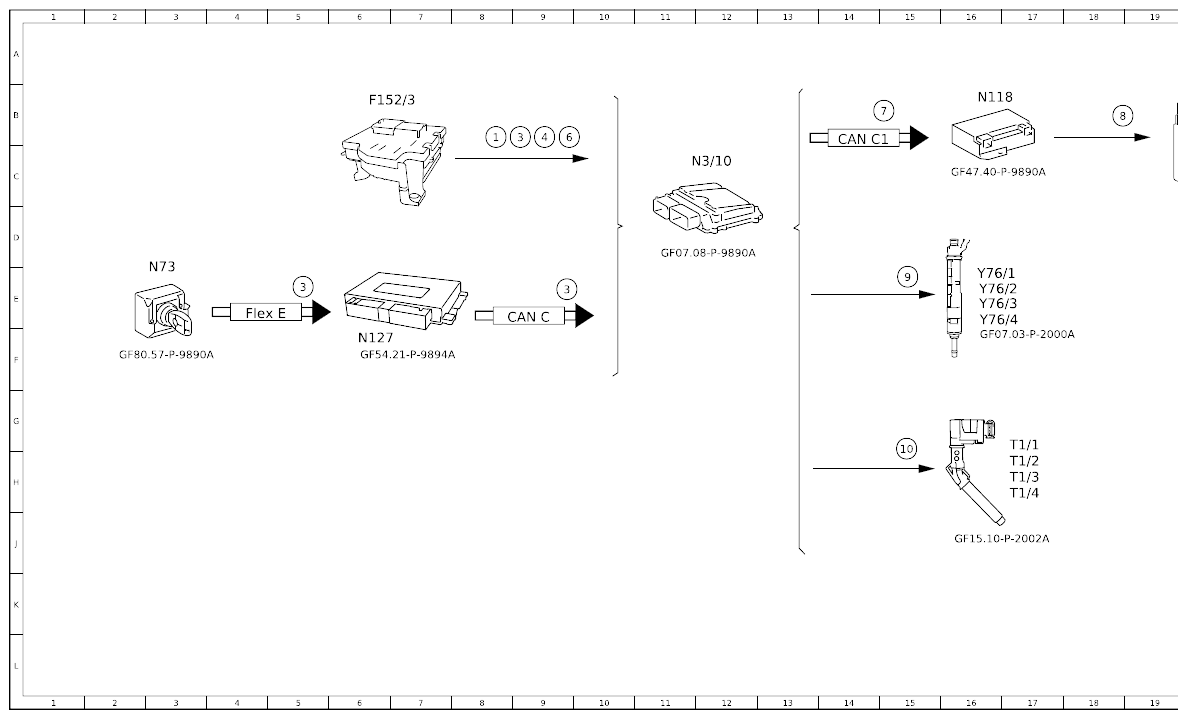

Function Schematic For Ignition OFF - PE07.10-P-2506-97E
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 139 in model 118, 177, 247
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, request OFF | 8B |
| 10 | Ignition coils, actuation | 15H |
| 3 | Circuit 15, status OFF | 5E |
| 3 | Circuit 15, status OFF | 9E |
| 3 | Circuit 15, status OFF | 9B |
| 4 | Circuit 30, status | 9B |
| 6 | Circuit 87, status | 9B |
| 7 | Fuel pump, request OFF | 15B |
| 8 | Fuel pump, actuation | 18B |
| 9 | Fuel injectors, actuation | 15E |
| CAN C | Engine CAN | 9E |
| CAN C1 | Drive train CAN | 14B |
| F152/3 | Engine compartment fuse and relay module | 6B |
| Flex E | Chassis FlexRay | 4E |
| M3 | Fuel pump (FP) | 20C |
| N118 | Fuel pump control unit | 16B |
| N127 | Drivetrain control unit | 6F |
| N3/10 | ME-SFI [ME] control unit | 12C |
| N73 | Electronic ignition switch control unit | 3E |
| T1/1 | Cylinder 1 ignition coil | 17G |
| T1/2 | Cylinder 2 ignition coil | 17H |
| T1/3 | Cylinder 3 ignition coil | 17H |
| T1/4 | Cylinder 4 ignition coil | 17H |
| Y76/1 | Cylinder 1 fuel injector | 16E |
| Y76/2 | Cylinder 2 fuel injector | 16E |
| Y76/3 | Cylinder 3 fuel injector | 16E |
| Y76/4 | Cylinder 4 fuel injector | 16E |
