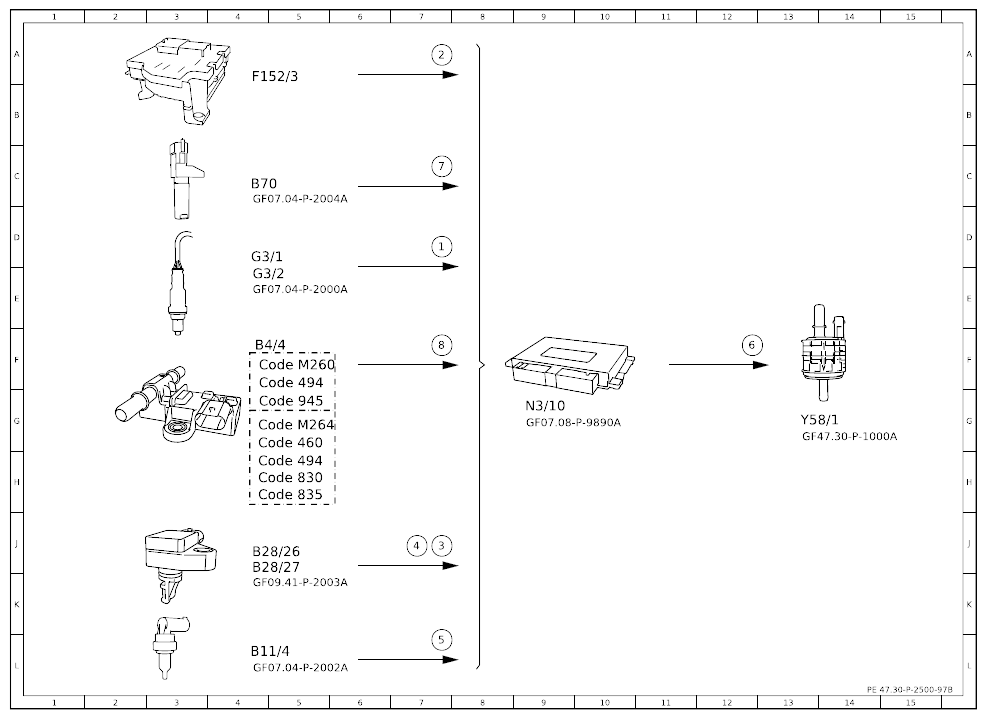

Function Schematic For Purging - PE47.30-P-2500-97B
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 260 in model 118, 177, 247 Engine 264 in model 167
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Oxygen sensor, sensor element, signal | 7D |
| 2 | Circuit 87, status | 7A |
| 3 | Engine load, signal | 7J |
| 4 | Charge air temperature sensor, signal | 7J |
| 5 | Coolant temperature sensor, signal | 7L |
| 6 | Purging switchover valve, actuation | 12F |
| 7 | Engine speed, signal | 7C |
| 8 | Purging pressure sensor, signal | 7F |
| B11/4 | Coolant temperature sensor | 4L |
| B28/26 | Pressure and temperature sensor upstream of throttle valve | 4J |
| B28/27 | Pressure and temperature sensor downstream of throttle valve | 4J |
| B4/4 | Purging pressure sensor | 4F |
| B70 | Crankshaft Hall sensor | 4C |
| Code 460 | Canada version | 4G |
| Code 494 | USA version | 4F |
| Code 494 | USA version | 4H |
| Code 830 | Additional parts for China vehicles | 4H |
| Code 835 | Additional parts for South Korea vehicles | 4H |
| Code 945 | China Stage 6 exhaust treatment | 4G |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 4F |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M264 | 4G |
| F152/3 | Engine compartment fuse and relay module | 4A |
| G3/1 | Oxygen sensor downstream of catalytic converter | 4D |
| G3/2 | Oxygen sensor upstream of catalytic converter | 4E |
| N3/10 | ME-SFI [ME] control unit | 9G |
| Y58/1 | Purge control valve | 13G |
