Remove/Install Purge Valve - AR47.30-P-8252MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 260 in model 118, 177, 247

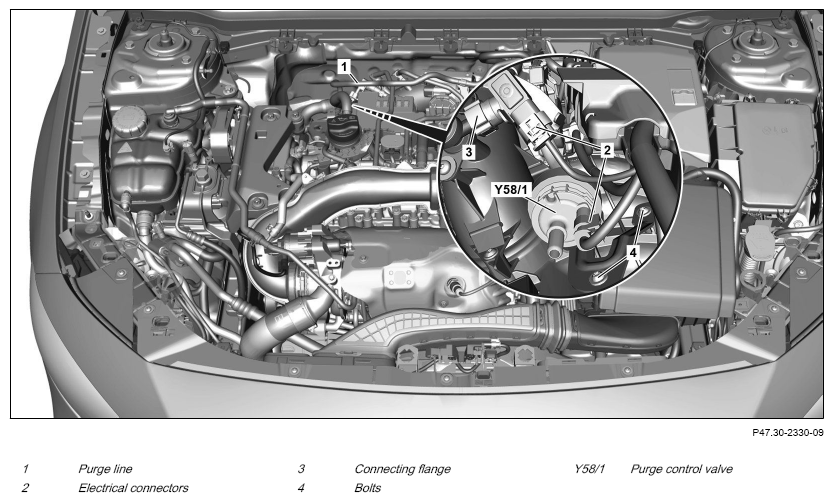

Fig 1: Purge Valve Components Location - Engine 260 In Model 118 (Shown On Engine Without Code M016)
Shown on engine without code M016 (performance-enhanced engine)
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Remove upper engine cover. | ||
| AP01.10-P-2405-01C | |||
| 3 | Release and disconnect purge line (1) from the purging switchover valve (Y58/1) and place to one side. | Do not subject purge line (1) to tension, crush it, or kink it. Otherwise, this can lead to damage to the purge line (1) and impair its function. |
|
| 4 | Release and disconnect electrical connectors (2). | ||
| 5 | Release and disconnect purge line (1) from the connecting flange (3). | Do not subject purge line (1) to tension, crush it, or kink it. Otherwise, this can lead to damage to the purge line (1) and impair its function. |
|
| 6 | Remove screws (4) and remove purging switchover valve (Y58/1). | ||
| 7 | Install in the reverse order. |
