Wheel Well Prepare For Installation - Ar62.20-P-1200-19MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118.3/6
Model 177.0/1/9
Model 247.0
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
The following operation steps are shown on the left side of the vehicle. In case of damage on the right side of the vehicle, these steps must be performed analogously.
Additional information can be found in the superordinate service document.
The safety information in the superordinate service document must be observed.

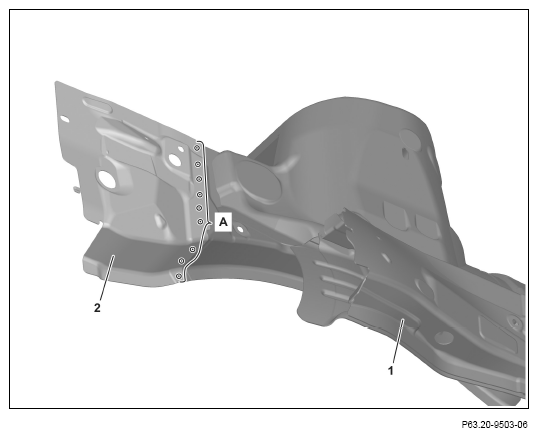

- Expose spot welds on connecting panel (2) and cut off (area A).
- Remove connecting panel (2) from wheel well (1).
- Grind mating surfaces on wheel well (1) down to bare metal in cross-hatched areas.
Sand down spot weld flanges to bare metal on both sides.
- Remove grinding dust.
- Apply zinc dust paint to the insides of the spot weld flanges of the wheel well (1).

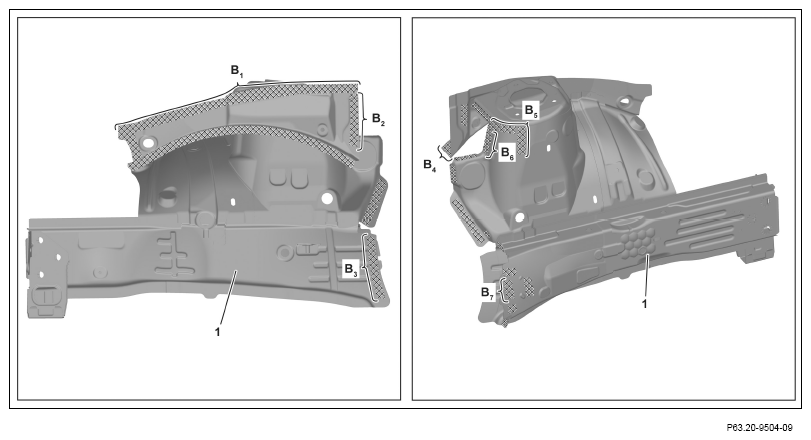

The bonding surfaces may not be coated with zinc dust paint (areas B1 , B2 , B3 , B4 , B5 , B6 and B7 ).
Otherwise adhesion problems can occur.
Observe pretreatment of bonding surfaces.
