Upper Front Longitudinal Member Separation - Ar62.20-P-1286-01MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118.3/6
Model 177.0/1/9
Model 247.0
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
The next steps are shown on the left side of the vehicle. In case of damage on the right side of the vehicle, these steps must be performed analogously.
Further information can be found in the superordinate service document.
The safety information in the superordinate service document must be observed.

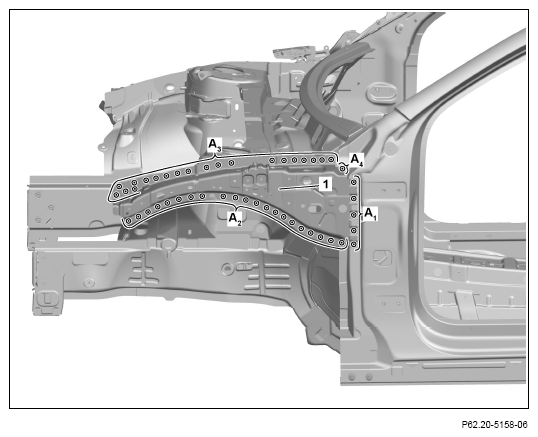

- Expose spot welds on the upper front longitudinal member (1) and cut off (areas A1
, A2
, A3
and A4
).
- Heat upper front longitudinal member (1) in the cross-hatched area.
Cross-hatched area is bonded.
- Take off upper front longitudinal member (1).
- Grind mating surfaces down to bare metal in cross-hatched areas.
Grind spot weld flanges down to bare metal on both sides.
- Remove grinding dust and drill chips.

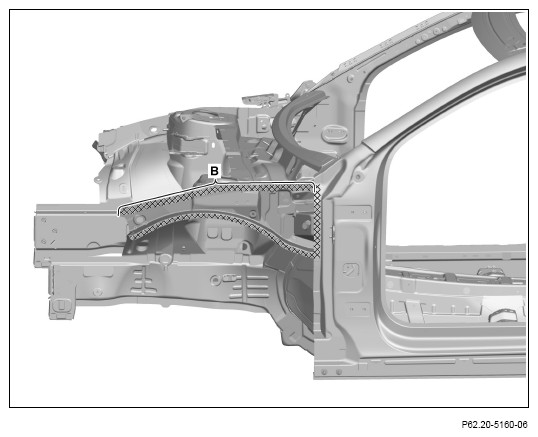

- Apply zinc dust paint to insides of spot weld flanges.
Do not coat bonding surfaces with zinc dust paint (area B).
Otherwise adhesion problems can occur.
Observe pretreatment of bonding surfaces.
