Upper Front Longitudinal Member Installation - Ar62.20-P-1286-03MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118.3/6
Model 177.0/1/9
Model 247.0
MODIFICATION NOTES
| 20.03.2019 | Fit top front longitudinal member using connecting carrier. | Operation steps 1, 3, 8, 11 |
The following operation steps are to be performed on model 177.0 on the left side of the vehicle and must be performed in the same way on the right side.
The higher-level service document as well as the safety information in the service document must be observed.

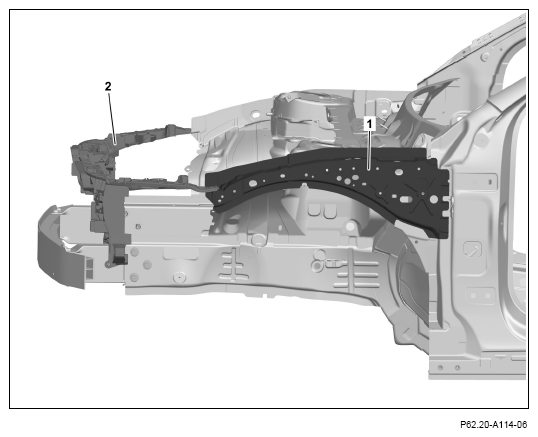

- Install front top longitudinal member (1), fit with connecting carrier (2), and fix in place.

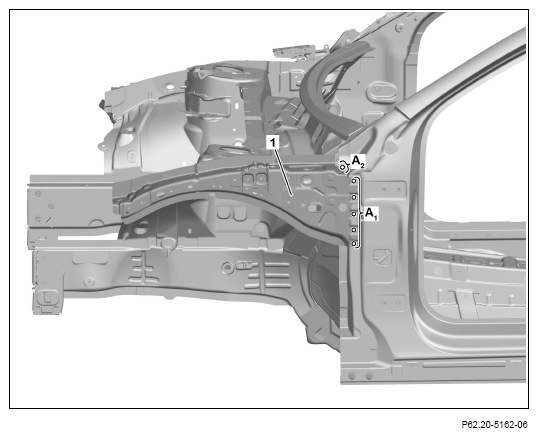

- Drill rivet holes on the front top longitudinal member (1) with a diameter of 6.7 mm (areas A^1 , A2 ).
- Remove connecting carrier and top front longitudinal member (1).
- Deburr drill holes on upper front longitudinal member (1) and body on both sides.
- Remove drilling chips.
- Coat insides of riveted joints with zinc dust paint.

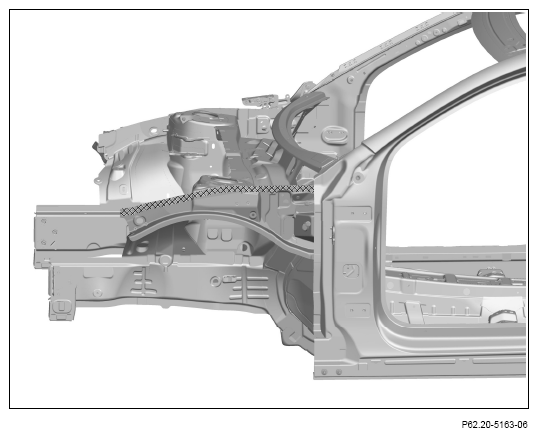

- Apply 2-component adhesive to body cross-hatched areas.
Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.
- Install top front longitudinal member (1) with connecting carrier and fix in place.

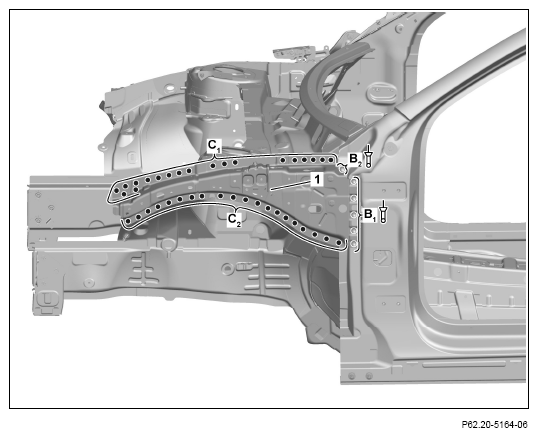

- Rivet top front longitudinal member (1) with rivets with a diameter of 6.5 x 14.5 (areas B1 , B2 ).
- Front top longitudinal member (1)
(areas C1 , C2 ).
- Remove connecting carrier.
