Strut Tower Brace Removal And Installation - Ar62.30-P-2500MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177
with code 950 (AMG sport package)

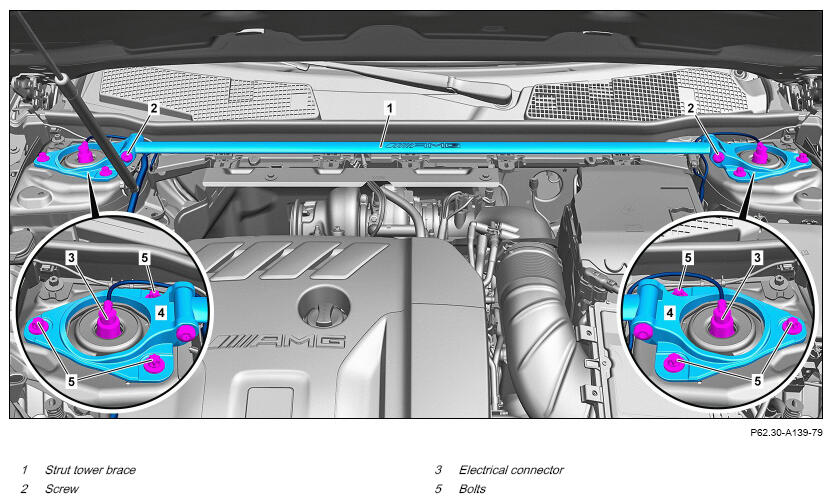

Shown on model 177
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Loosen screws (2). | Screws (2) must be released and tightened when vehicle is on wheels in ready-to-drive condition. Vehicle may not be with suspension compressed or at full rebound travel. Otherwise, the suspension will be under tension and this will affect camber of front wheels. |
|
| 2 | Raise vehicle. | AR00.60-P-1006A | |
| 3 | Disconnect electrical connection (3). | ||
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| 4 | Remove strut tower brace (1). | If strut tower brace (1) will be replaced: ↓ Screws (2) of new strut tower brace (1) must be released. |
*BA32.25-P-1002-04J |
| 5 | Install in the reverse order. |
SUSPENSION STRUTS
| Number | Designation | Model 118, 247.6/7 | Model 177, 247 (except 247.6/7) | ||
|---|---|---|---|---|---|
| BA32.25-P-1002-04J | Bolt, suspension strut to suspension strut tower | Stage 1 | Nm | 50 | 50 |
| Stage 2 | ∠° | - | - | ||
