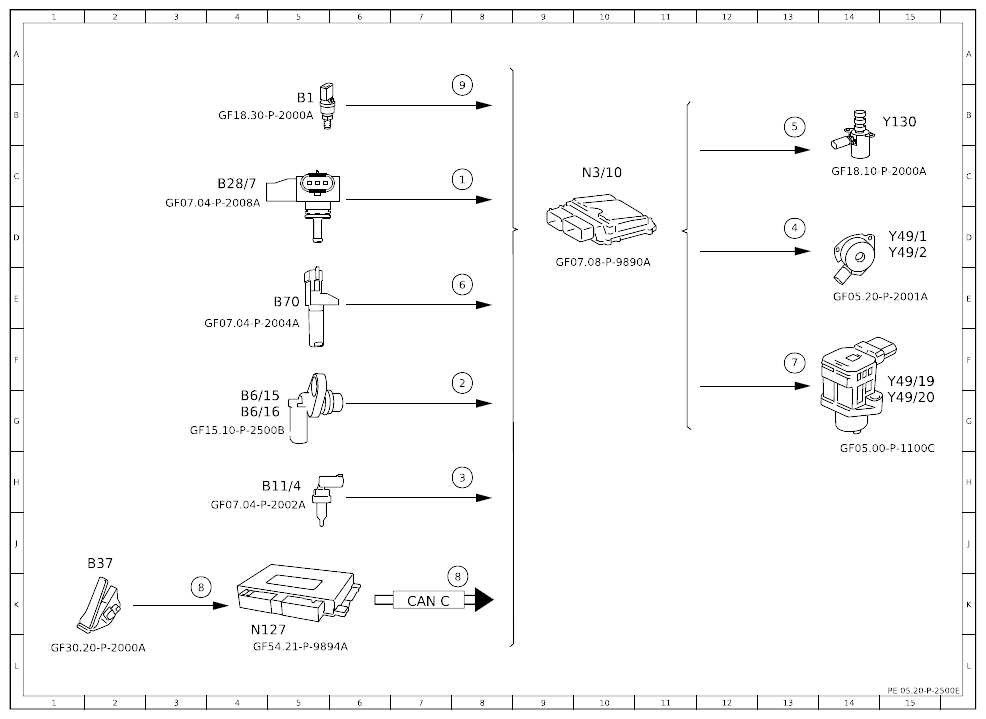

Function Schematic For Camshaft Adjustment - PE05.20-P-2500-97E
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 139 in model 118, 177, 247
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine load, signal | 8C |
| 2 | Camshaft Hall sensor, signal | 8F |
| 3 | Coolant temperature sensor, signal | 8H |
| 4 | Camshaft solenoids, actuation | 13D |
| 5 | Engine oil pump valve, actuation | 13B |
| 6 | Engine speed, signal | 8E |
| 7 | CAMTRONIC actuator, actuation | 13F |
| 8 | Accelerator pedal sensor, signal | 3K |
| 8 | Accelerator pedal sensor, signal | 8J |
| 9 | Engine oil temperature, signal | 8B |
| B1 | Engine oil temperature sensor | 5B |
| B11/4 | Coolant temperature sensor | 5H |
| B28/7 | Pressure sensor downstream of throttle valve | 4C |
| B37 | Accelerator pedal sensor | 2J |
| B6/15 | Intake camshaft Hall sensor | 4G |
| B6/16 | Exhaust camshaft Hall sensor | 4G |
| B70 | Crankshaft Hall sensor | 5E |
| CAN C | Engine CAN | 7K |
| N127 | Drivetrain control unit | 4K |
| N3/10 | ME-SFI [ME] control unit | 10C |
| Y130 | Engine oil pump valve | 15B |
| Y49/1 | Intake camshaft solenoid | 15D |
| Y49/19 | Cylinder 1 and 2 intake CAMTRONIC actuator | 15F |
| Y49/2 | Exhaust camshaft solenoid | 15D |
| Y49/20 | Cylinder 3 and 4 intake CAMTRONIC actuator | 15G |
