Function Schematic For Camshaft Adjustment - PE05.20-P-2500-97B
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine 260 in model 118, 177, 247
Engine 264 in model 167

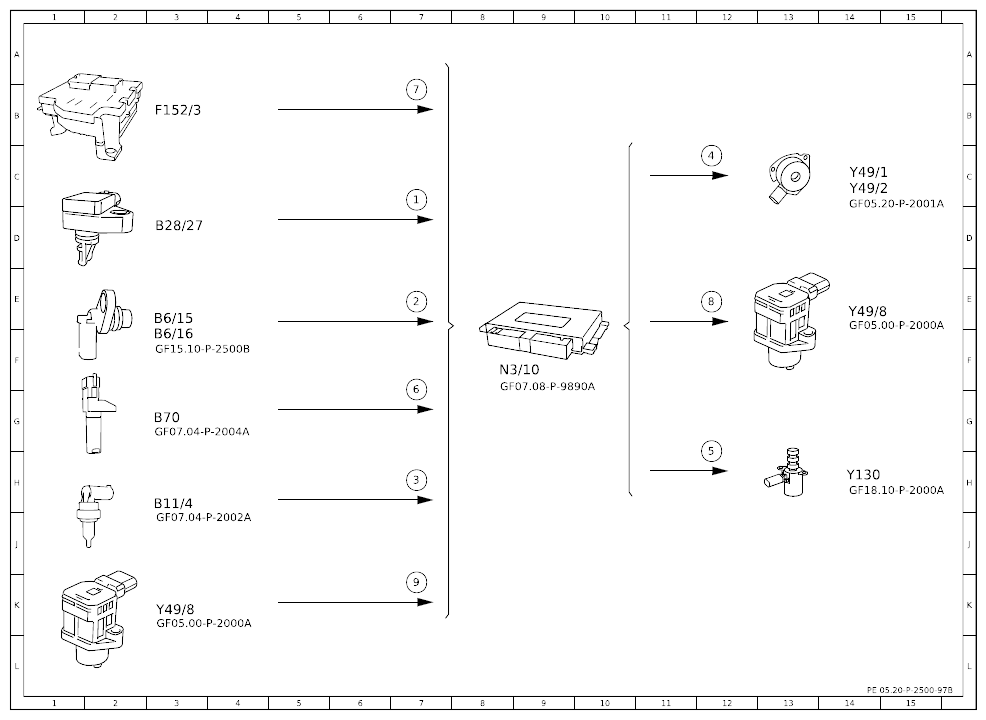

| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine load, signal | 7C |
| 2 | Camshaft Hall sensor, signal | 7E |
| 3 | Coolant temperature sensor, signal | 7H |
| 4 | Camshaft solenoids, actuation | 12C |
| 5 | Engine oil pump valve, actuation | 12H |
| 6 | Engine speed, signal | 7G |
| 7 | Circuit 87, status | 7B |
| 8 | Intake camshaft valve lift switching actuator, actuation | 12E |
| 9 | Intake camshaft valve lift switching Hall sensor, signal | 7K |
| B11/4 | Coolant temperature sensor | 3H |
| B28/27 | Pressure and temperature sensor downstream of throttle valve | 3D |
| B6/15 | Intake camshaft Hall sensor | 3E |
| B6/16 | Exhaust camshaft Hall sensor | 3F |
| B70 | Crankshaft Hall sensor | 3G |
| F152/3 | Engine compartment fuse and relay module | 3B |
| N3/10 | ME-SFI [ME] control unit | 8F |
| Y130 | Engine oil pump valve | 14H |
| Y49/1 | Intake camshaft solenoid | 14C |
| Y49/2 | Exhaust camshaft solenoid | 14C |
| Y49/8 | Intake camshaft valve lift switching actuator | 14E |
| Y49/8 | Intake camshaft valve lift switching actuator | 3K |
