Replace Valve Stem Seal - AR05.30-P-3510-01MFG

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Engine 139 in model 118, 177, 247

Specified engine oils for Cars, Vans (service) - Overview

BB00.40-P-0223-02A

MODIFICATION NOTES

23.11.2022

During installation, install valve stem seals (5) with grey seal at exhaust side and with black seal at intake side.

Operation step 4.

Fig 1: Identifying Pliers (606 589 00 37 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Drift (604 589 00 43 00)

Courtesy of MERCEDES-BENZ USA

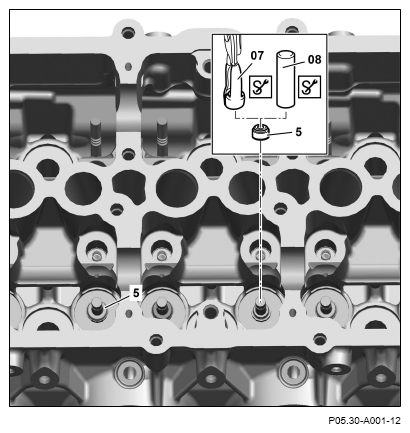

Use pliers (07) to pull off valve stem seals (5).
Check valve stems for formation of burrs and pitting.
If ridging is detected on valve stems:

↓

Deburr valve stems.

If pitting is detected on valve stems:

↓

Replace valves.
Fit protective sleeve onto the valve stem.

Courtesy of MERCEDES-BENZ USA
Coat valve stem seals (5) with engine oil.
During installation, install valve stem seals (5) with grey seal at exhaust side and with black seal at intake side.

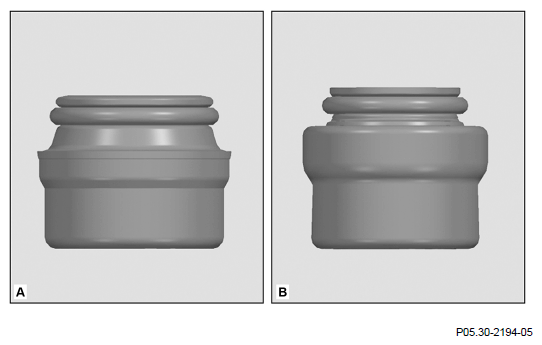

Install the valve stem seals (5) without a double lip (picture A) on the intake side and the valve stem seals (5) with a double lip (picture B) on the exhaust side.
Press valve stem seals (5) with drift (08) up to the end stop.
Remove protective sleeve from the valve stem.

Courtesy of MERCEDES-BENZ USA
