Remove/Install Timing Chain Tensioner - AR05.10-P-7800MFC

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Engine 260 in model 118, 177, 247

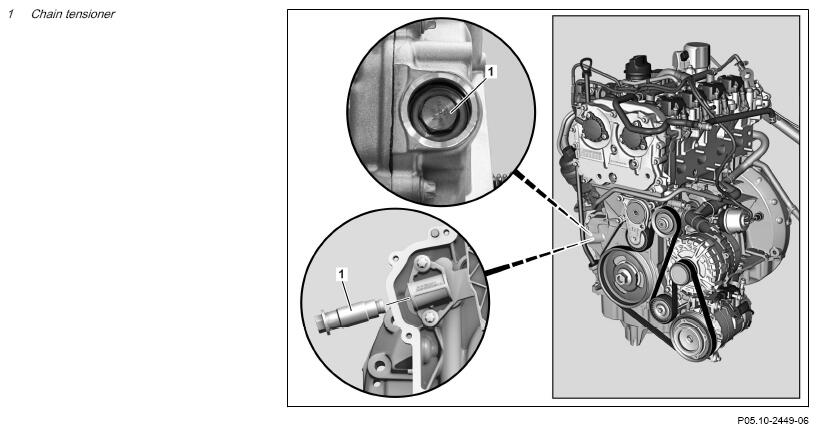

Fig 1: Timing Chain Tensioner - Engine 260 In Model 118

Courtesy of MERCEDES-BENZ USA

	Risk of injury. Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove right front axle shaft.	Only install lower engine compartment paneling after leak test.	AR33.30-P-0620MFA
2	Pierce cap of the chain tensioner (1) in the center using a suitable tool and remove.	Do not pry out cap at the side. Otherwise the timing case cover will be damaged and leaks occur. Install new cap.
3	Remove chain tensioner (1).	Screw/bolt, chain tensioner to bracket	*BA05.10-P-1001-01F
	Check
4	Check chain tensioner (1).	Only reuse chain tensioner (1) if it has had no noticeable problems in previous operation and no chain drive components have been replaced. Engine damage will occur otherwise. The chain tensioner (1) is pretensioned by an inner lying spring and moves out automatically during removal. If chain tensioner (1) does not automatically fully extend: ↓ Replace chain tensioner (1).
5	Check the bracket of chain tensioner (1) for damage.	If there are problems: ↓ Remove the timing case cover and remove the holder of the chain tensioner (1).	AR01.40-P-8002MFC
		Screw/bolt, chain tensioner holder to crankcase	*BA05.10-P-1003-01F
6	Install in the reverse order.
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
7	Perform engine test run. While doing so, check engine for proper operation and leak tightness.
8	Install lower engine compartment lining.	Engine 260 in model 118, 177, 247 with code M016 (Uprated engine)	AR61.20-P-1105MFR
		Engine 260 in model 118, 177, 247 except code M016 (Uprated engine)	AR61.20-P-1105MFA

TIMING CHAIN, CHAIN TENSIONER

Number	Designation		Engine 260
BA05.10-P-1001-01F	Screw/bolt, chain tensioner to bracket	Nm	40

TIMING CHAIN, CHAIN TENSIONER

Number	Designation		Engine 260
BA05.10-P-1003-01F	Screw/bolt, chain tensioner holder to crankcase	Nm	20
