Check Hydraulic Valve Clearance Compensating Elements - AR05.00-P-2010MFG

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Engine 139 in model 118, 177, 247

Courtesy of MERCEDES-BENZ USA

	Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
	Risk of injury. Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Topical note	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Check
1	Check engine oil level and correct if necessary.	Engine 139 in model 118, 177, 247
		Engine 139 in model 118, 177	AP18.00-P-1812AKI
2	Start engine, bring to operating temperature, and switch off.	Coolant temperature 60 to 80°C.
3	Remove cylinder head cover.	Only install upper engine cover after the leak test.	AR01.20-P-5014MFG
4	Remove front right fender liner.		AR88.10-P-1301MFA
5	Turn engine at center bolt of the crankshaft in the direction of engine rotation until the cam on the compensating element to be checked is on the base circle.	The engine must not be turned back against the direction of engine rotation. Otherwise the timing chain jumps and causes engine damage. Counterholder	Fig 1
		If a roller-type rocker arm (1) does not make contact with the cam, ↓ Replace compensating elements.	AR05.00-P-2011MFG

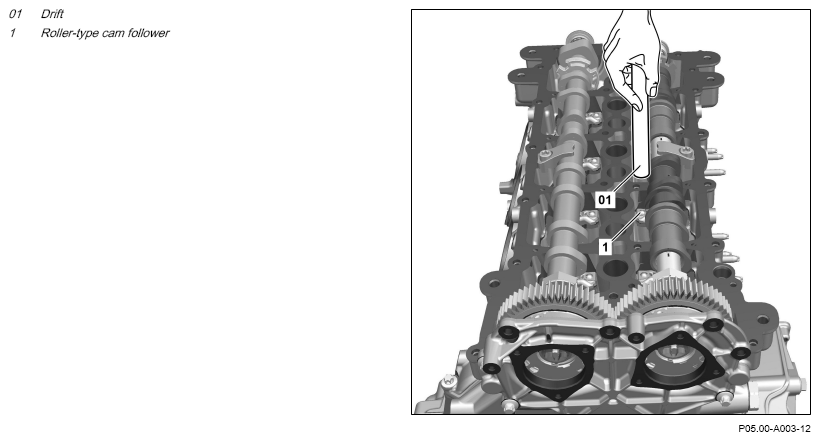

6	Compress compensating element. To do so depress roller-type cam follower (1) using a suitable drift (01).	Do not use a steel tool. The surface will be damaged otherwise. The compensating element should not be pressed together with the normal force of the hand but only very slowly when applying a strong pressure. Check the pressure oil supply to the cylinder head if more than one compensating element is defective. If the compensating element drops excessively, ↓ Replace compensating elements.	AR05.00-P-2011MFG
7	Install in the reverse order.
8	Carry out engine test run and check engine for leak tightness.
9	Install upper engine cover.	Engine 139 in model 118, 177, 247
		Engine 139 in model 118, 177	AP01.10-P-2405-01K

Fig 1: Identifying Counterholder (654 589 00 40 00)

Courtesy of MERCEDES-BENZ USA
