General Note On Operation Items And Work Scopes For Camshafts - AH05.00-P-0200-01A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Engine All (4xWD, CAR, smart)
Determine and detect camshafts in direction of travel or opposite power output
Inline engine with one camshaft:
Inline engine with two camshafts:
V-engine with two camshafts:

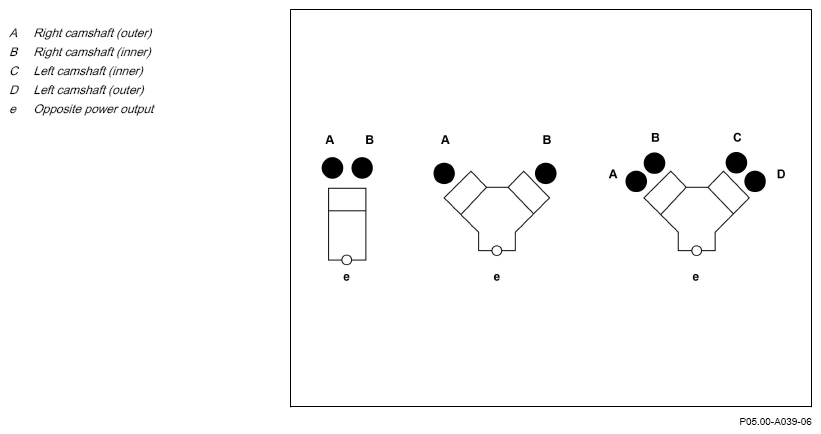

V-engine with four camshafts:
Example of operation item
05-6232-07 Remove/install camshaft A (cylinder head cover(s) removed)
