Remove Fuel Distributor With Injection Valves - AR07.03-P-1450MFG

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Engine 139 in model 118, 177, 247

MODIFICATION NOTES

16.08.2021 Screw in screws (20) by hand until the brackets make contact and then tighten screws (20). Operation step 9.

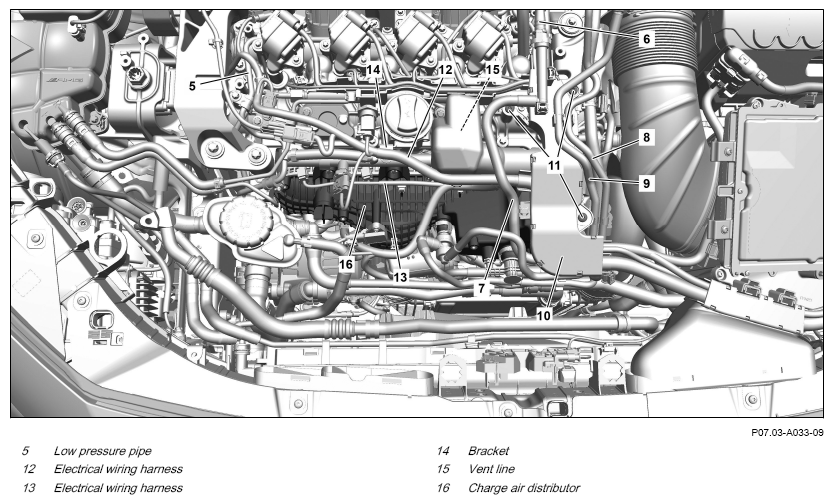

G16053076Courtesy of MERCEDES-BENZ USA

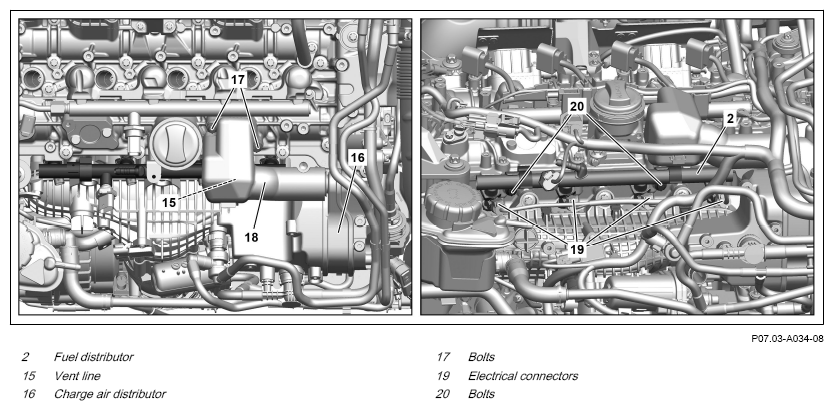

G16053077Courtesy of MERCEDES-BENZ USA

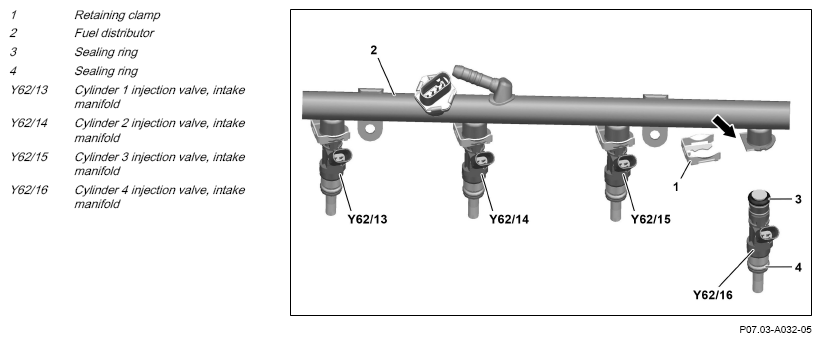

G16053078Courtesy of MERCEDES-BENZ USA
DANGER Risk of explosion  caused by fuel igniting. Risk of injury  to skin and eyes caused by fuel spraying out at high pressure Keep all ignition sources out of hazard area.
Do not carry out any work on system when it is pressurized.
AS07.16-Z-0001-01A
DANGER Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. No fires, sparks, open flames or smoking.
Pour fuels into suitable and appropriately marked containers only.
Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil Wear protective gloves, protective clothing and safety glasses.
Do not fill engine oil into beverage containers.
AS18.00-Z-0001-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
Notice  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notice  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
REMOVINGINSTALLING Remove/install
1 Remove low-pressure line (5).   AR07.03-P-1120MFG
    INSTALLATION IMPORTANT Do not install upper engine 'cover until after the leak test.
2 Remove electrical wiring harness (12) from bracket (14) and from bleed line (15). NOTES
Do not kink, subject lines to tension. Otherwise damage will occur.

3 Release and disconnect electrical connectors (19).
4 Remove electrical wiring harness (13) from charge-air distributor (16). NOTES
Do not kink, subject lines to tension. Otherwise damage will occur.

5 Remove screws (17) and remove bleed line (15). INSTALLATION IMPORTANT Replace seals.
Check seals are correctly seated.
Do not coat connections with grease.

    TORQUE SPECIFICATION M6x1 *BA00.10-P-1002-04A
6 Opening on the charge-air distributor (16) with suitable stop plug. SPECIAL TOOL Record plug Fig 1
7 Seal opening on the cylinder head cover with a lint-free rag.
8 Clean working area and blow out with compressed air. Assembly cleaner *BR00.45-Z-1028-04A
9 Remove bolts (20). INSTALLATION IMPORTANT Screw in screws (20) by hand until the brackets make contact and then tighten screws (20).
    TORQUE SPECIFICATION Screw/bolt, fuel distributor to cylinder head *BA07.52-P-1002-01H
10 Pull out fuel distributor (2) with the injection valves (Y62/13, Y62/14, Y62/15, Y62/16).
11 Seal openings in cylinder head with suitable stop plugs. SPECIAL TOOL Record plug Fig 1
12 Unclip retaining clamps (1) using suitable tool. When replacing fuel distributor (2) and/or injection valves (Y62/13, Y62/14, Y62/15, Y62/16).
INSTALLATION IMPORTANT Retaining clamps (1) must engage in square guide (arrow).

13 Remove injection valves (Y62/13, Y62/14, Y62/15, Y62/16) from fuel distributor (2) and seal openings with suitable stop plugs. When replacing fuel distributor (2) and/or injection valves (Y62/13, Y62/14, Y62/15, Y62/16).
    SPECIAL TOOL Record plug Fig 1
14 Remove sealing rings (4). INSTALLATION NOTES
When wetting the sealing rings (4), ensure that no lubricant gets onto the valve tip and inside the valve.
Otherwise damage will occur.
INSTALLATION IMPORTANT Replace sealing rings (4) and moisten lightly with lubricant.

    Lubricant, rubber assembly 1 L *BR00.45-Z-1010-06A
15 Remove sealing rings (3). When replacing fuel distributor (2) and/or injection valves (Y62/13, Y62/14, Y62/15, Y62/16).
INSTALLATION NOTES
When wetting the sealing rings (3), ensure that no lubricant gets onto the valve tip and inside the valve.
Otherwise damage will occur.
INSTALLATION IMPORTANT Replace sealing rings (3) and moisten lightly with lubricant.

    Lubricant, rubber assembly 1 L *BR00.45-Z-1010-06A
16 Install in the reverse order.
17 Read out and delete fault memory.
DIAGNOSTIC SYSTEMS     AD00.00-P-2000-06MFA
WARNING Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust. Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. AS49.00-Z-0001-01A
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
18 Perform engine test run and check engine for proper operation and leak tightness.
19 Install upper engine cover.
REFER TO MAINTENANCE     AP01.10-P-2405-01K
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143

Number Designation 8.8 10.9
BA00.10-P-1002-04A M6x1 Nm 9 13
FUEL DISTRIBUTOR

Number Designation Engine 139
BA07.52-P-1002-01H Screw/bolt, fuel distributor to cylinder head 8
Fig 1: Identifying Record Plug (129 589 00 91 00)
G11971934Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1010-06A Lubricant, rubber assembly 1 L A 000 989 03 67
BR00.45-Z-1028-04A Assembly cleaner A 000 986 56 01
