Function Schematic For Displaying Information In Head-Up Display - PE54.30-P-2510-97A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 167, 177, 243, 247, 293 with code 463 (Head-up display)
Model 213, 238, 257, 290 as of model year 2021 with code 463 (Head-up display)
| Code: | Designation: | Position: |
|---|---|---|
| A26/17 | Head unit | 4K |

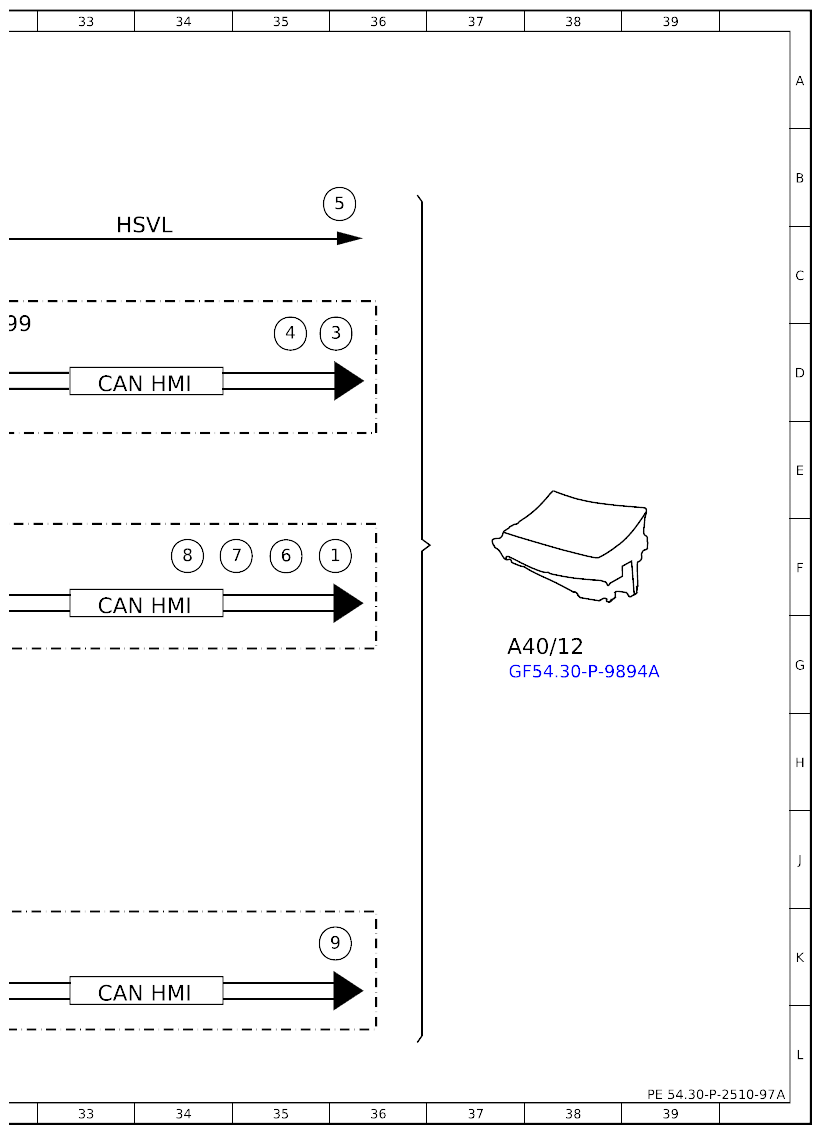

| A40/12 | Head-up display | 38G |
| B38/2 | Rain/light sensor | 4E |
| B38/2b4 | Head-up display light sensor | 3E |
| Code 275 | Electrically adjustable driver seat with memory function | 3F |
| HSVL | High-speed video link | 33C |
| N10 | Central control module | 15E |
| N10/6 | Front SAM control unit | 15F |
| N32/1 | Driver front seat adjustment control unit with memory | 3H |

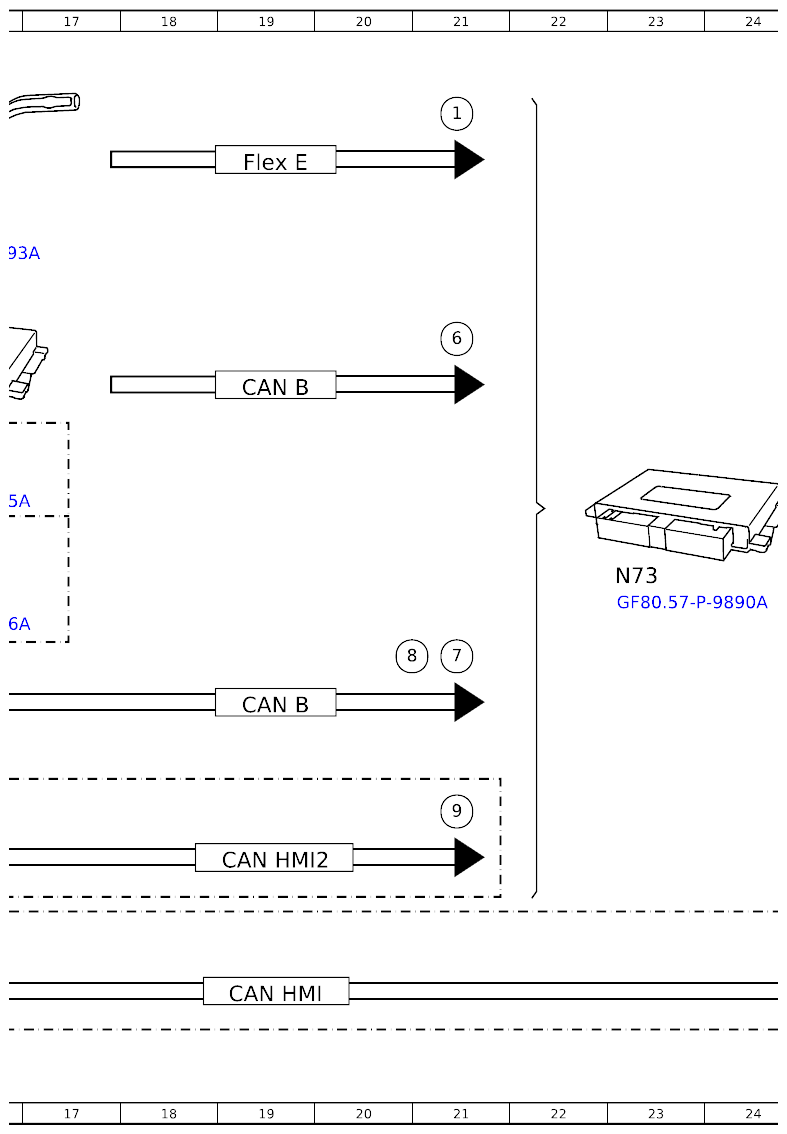

| N73 | EIS [EZS] control unit | 23F |

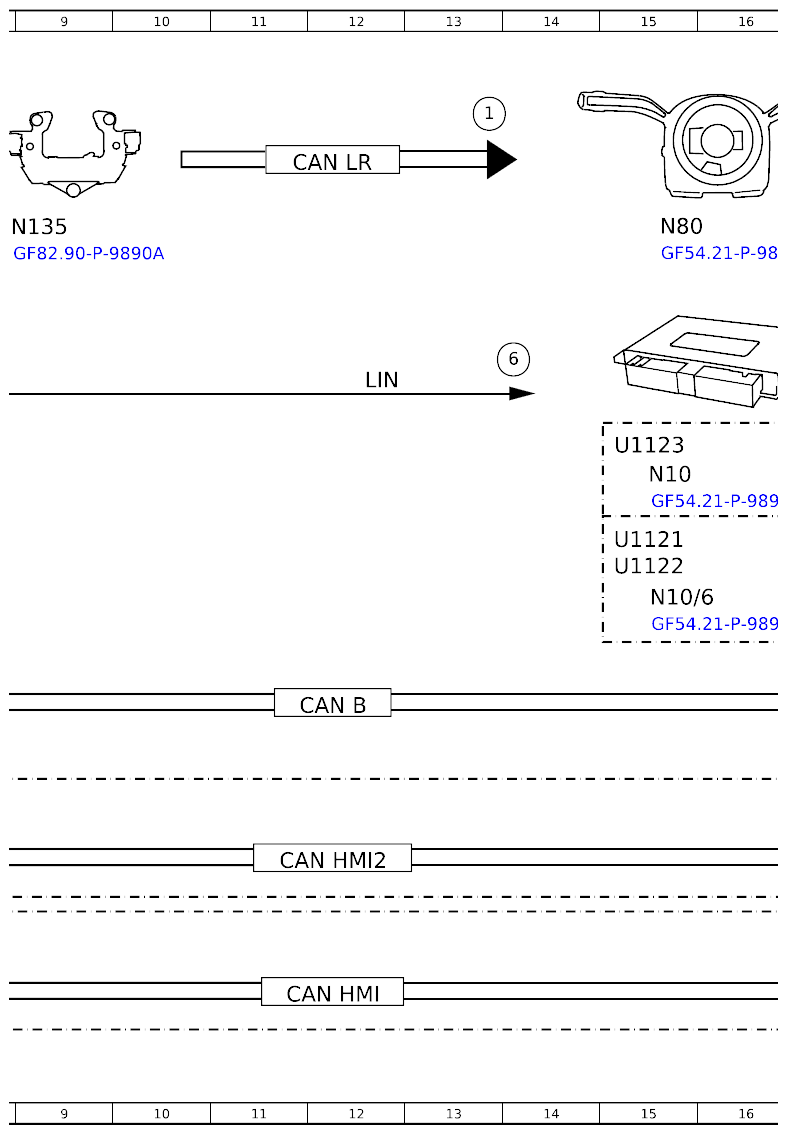

| N80 | Steering column module | 15C |

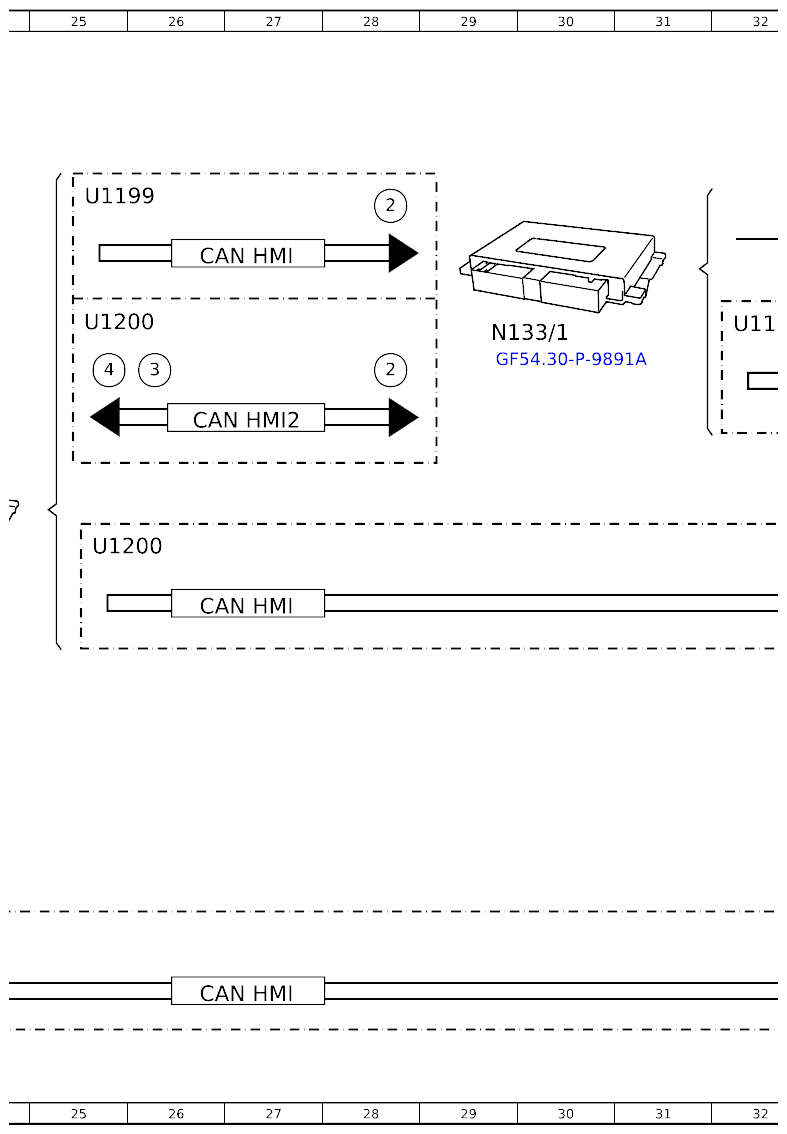

| N133/1 | Instrument cluster control unit | 29D |
| N135 | Steering wheel electronics | 9C |

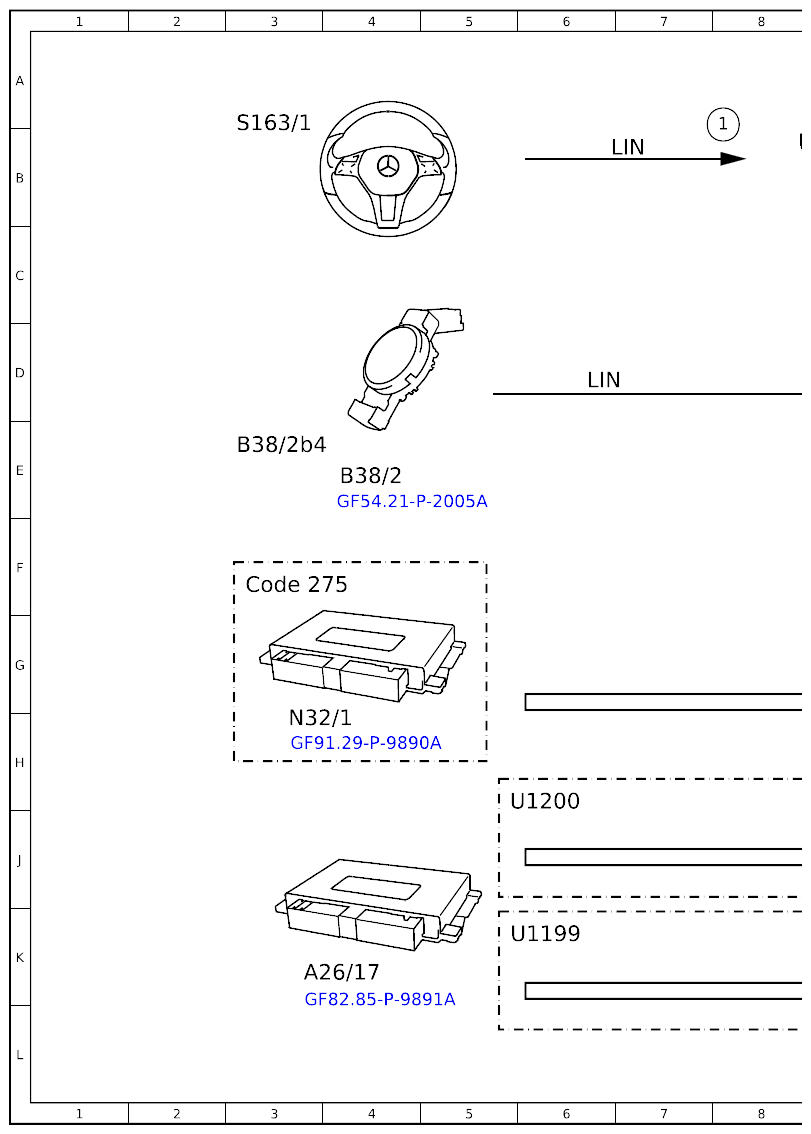

| S163/1 | Instrument cluster multifunction steering wheel button group | 3B |
| U1121 | Valid for model 167 | 15F |
| U1122 | Valid for model 293 | 15F |
| U1123 | Valid for model 118, 177, 247 | 15E |
| U1199 | Valid for vehicles up to facelift | 25B |
| U1199 | Valid for vehicles up to facelift | 32D |
| U1199 | Valid for vehicles up to facelift | 5K |
| U1200 | Valid for vehicles as of facelift | 25D |
| U1200 | Valid for vehicles as of facelift | 25F |
| U1200 | Valid for vehicles as of facelift | 5H |
| CAN B | Interior CAN | 19D |
| CAN B | Interior CAN | 19G |
| CAN B | Interior CAN | 12G |
| CAN HMI | User interface CAN | 27C |
| CAN HMI | User interface CAN | 12K |
| CAN HMI | User interface CAN | 19K |
| CAN HMI | User interface CAN | 27F |
| CAN HMI | User interface CAN | 33F |
| CAN HMI | User interface CAN | 33K |
| CAN HMI | User interface CAN | 27K |
| CAN HMI | User interface CAN | 33D |
| CAN HMI2 | CAN 2 for user interface | 27E |
| CAN HMI2 | CAN 2 for user interface | 12J |
| CAN HMI2 | CAN 2 for user interface | 19J |
| CAN LR | CAN for steering wheel | 12B |
| Flex E | Chassis FlexRay | 19B |
| LIN | Local Interconnect Network | 6D |
| LIN | Local Interconnect Network | 7B |
| LIN | Local Interconnect Network | 12D |
| 1 | Operation, signal | 21A |
| 1 | Operation, signal | 13A |
| 1 | Operation, signal | 8B |
| 1 | Operation, signal | 36F |
| 2 | Circuit 15, status | 28B |
| 2 | Circuit 15, status | 28D |
| 3 | Switch-on request, signal | 36D |
| 3 | Switch-on request, signal | 26D |
| 4 | Head-up display settings, request | 35D |
| 4 | Head-up display settings, request | 25D |
| 5 | Image data, signal | 36B |
| 6 | Head-up display light sensor, signal | 21D |
| 6 | Head-up display light sensor, signal | 14D |
| 6 | Head-up display light sensor, signal | 35F |
| 7 | Store memory position, request | 21G |
| 7 | Store memory position, request | 35F |
| 8 | Adopt memory position, request | 20G |
| 8 | Adopt memory position, request | 34F |
| 9 | Map data, signal | 36K |
| 9 | Map data, signal | 21J |
