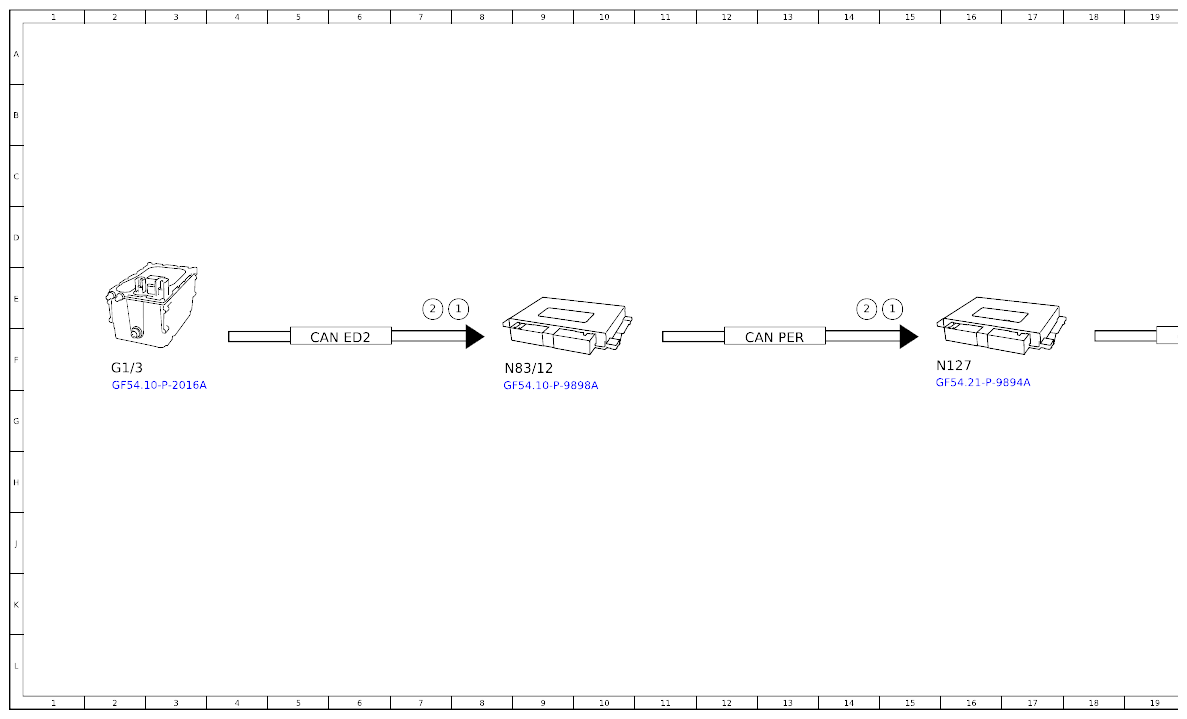

Evaluate State Of Charge Of 48 V Battery, Function Schematic - PE54.10-P-2517-97D
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 247 with code B01 (48V technology)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | 48 V battery, status | 8E |
| 1 | 48 V battery, status | 15E |
| 1 | 48 V battery, status | 22E |
| 2 | 48 V battery temperature, signal | 7E |
| 2 | 48 V battery temperature, signal | 14E |
| 2 | 48 V battery temperature, signal | 21E |
| CAN ED2 | CAN for energy management | 6F |
| CAN PER | CAN for peripherals | 13F |
| CAN PER | CAN for peripherals | 20F |
| G1/3 | 48 V battery | 2F |
| N127 | Drivetrain control unit | 15F |
| N73/3 | Electronic ignition switch control unit | 22F |
| N83/12 | 48 V on-board electrical system DC/DC converter control unit | 8F |
