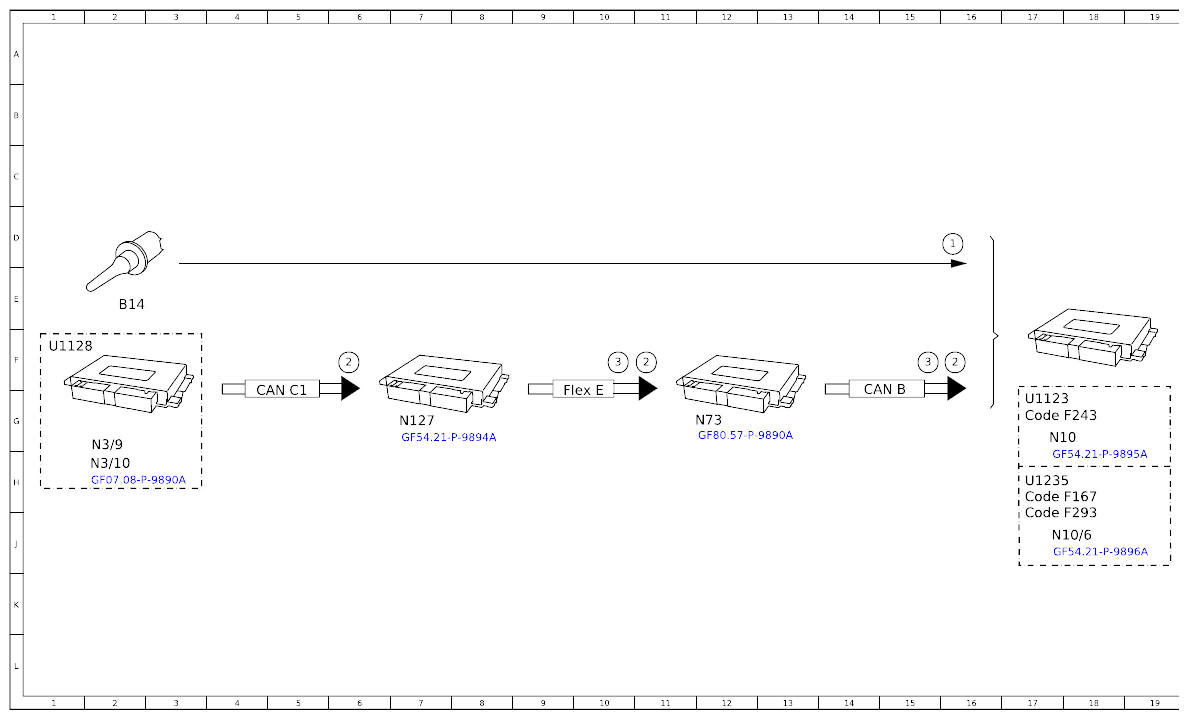

Function Schematic, Heat Spray Nozzles And Spray Nozzle Hose - PE82.35-P-2500-97A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 167, 177, 243, 247, 293 with code 875 (Heated windshield washer system)
Model 167 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system)
Model 213, 238, 257, 290 as of model year 2021 with code 875 (Heated windshield washer system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Outside temperature sensor, signal | 16D |
| 2 | Engine running, signal | 6F |
| 2 | Engine running, signal | 11F |
| 2 | Engine running, signal | 16F |
| 3 | Drivetrain operational, signal | 15F |
| 3 | Drivetrain operational, signal | 11F |
| 4 | Spray nozzle hose heater, actuation | 20E |
| B14 | Outside temperature sensor | 2E |
| CAN B | Interior CAN | 14G |
| CAN C1 | Drive train CAN | 5G |
| Code F167 | Model series 167 | 17H |
| Code F243 | MODEL SERIES 243 | 17G |
| Code F293 | Model series 293 | 17J |
| Flex E | Chassis FlexRay | 10G |
| N10 | Signal acquisition and actuation module | 17G |
| N10/6 | Front SAM control unit | 18J |
| N127 | Drivetrain control unit | 7G |
| N3/10 | ME-SFI [ME] control unit | 2H |
| N3/9 | CDI control unit | 2G |
| N73 | Electronic ignition switch control unit | 12G |
| R2/11 | Spray nozzle hose heater | 22G |
| U1123 | Valid for model 118, 177, 247 | 17G |
| U1128 | Valid for combustion engine | 1F |
| U1235 | Valid for model 213, 238, 257, 290 | 17H |
