Function Schematic, Actuate Rear Fog Light - PE82.10-P-2514-97A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 243, 247
| Code: | Designation: | Position: |
|---|---|---|
| A40/16 | Head unit/instrument cluster display cluster | 33C |
| Code 545 | Connect 5 (NTG6) | 25C |
| Code 548 | Connect 20 MID (NTG6) | 25D |
| Code 549 | Connect 20 HIGH (NTG6) | 25D |
| Code 550 | Trailer hitch | 2G |
| Code 550 | Trailer hitch | 18J |
| Code F177 | Model series 177 | 24K |
| Code F177 | Model series 177 | 24K |
| Code F243 | MODEL SERIES 243 | 11D |
| Code F243 | MODEL SERIES 243 | 10G |
| E3/1 | Inner left rear lamp unit | 19F |
| E4/1 | Inner right rear lamp unit | 19F |
| E46 | Trunk lid/liftgate lamp unit | 19H |
| HSVL | High-speed video link | 29B |
| N10 | Central control module | 8G |
| N28/1 | Trailer recognition control unit | 2J |
| N28/1 | Trailer recognition control unit | 19L |
| N73 | EIS [EZS] control unit | 2F |
| N73 | EIS [EZS] control unit | 18C |
| N133/1 | Instrument cluster control unit | 26E |
| N166 | Head unit/instrument cluster control unit | 26C |
| S1/2s2 | Rear fog light button | 2D |
| U1199 | Valid for vehicles up to facelift | 21A |
| U1200 | Valid for vehicles as of facelift | 21C |
| X58 | Trailer hitch socket (13-pin) | 25L |
| X58x1 | Trailer socket | 25K |
| CAN B | Interior CAN | 5H |
| CAN B | Interior CAN | 13B |
| CAN B | Interior CAN | 5E |
| CAN B | Interior CAN | 13K |
| CAN HMI | User interface CAN | 22B |
| CAN HMI2 | CAN 2 for user interface | 22C |

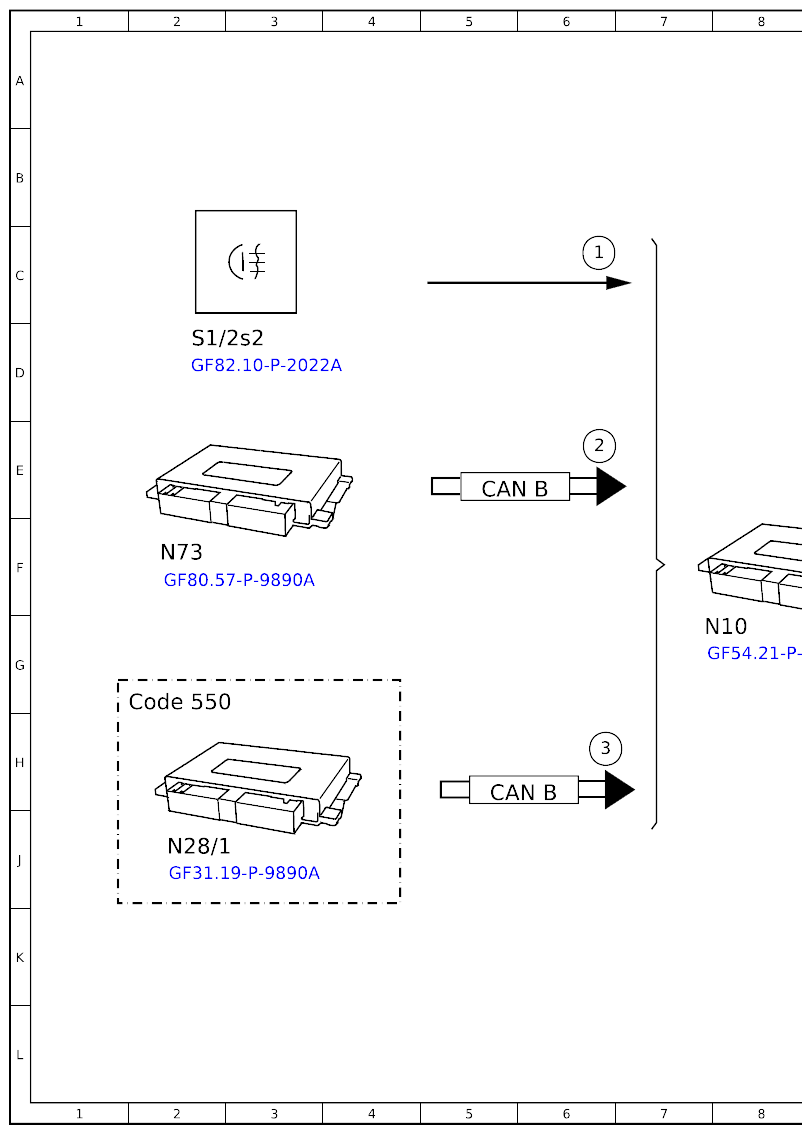

| 1 | Rear fog light button, status | 6C |
| 2 | Circuit 15, status | 6E |
| 3 | Trailer recognition, status | 6H |

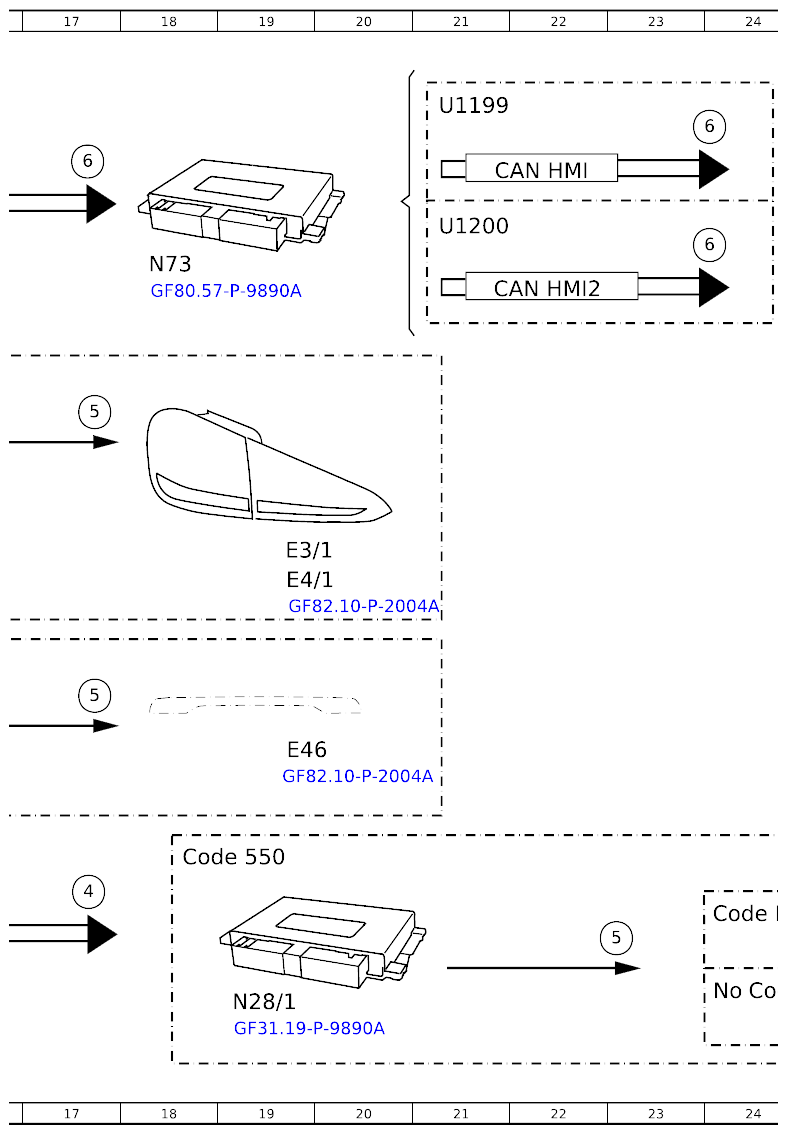

| 4 | Rear fog light, request | 17J |
| 5 | Rear fog light, actuation | 17D |
| 5 | Rear fog light, actuation | 23K |
| 5 | Rear fog light, actuation | 17G |
| 6 | Indicator lamp, request | 17B |
| 6 | Indicator lamp, request | 24B |
| 6 | Indicator lamp, request | 24C |

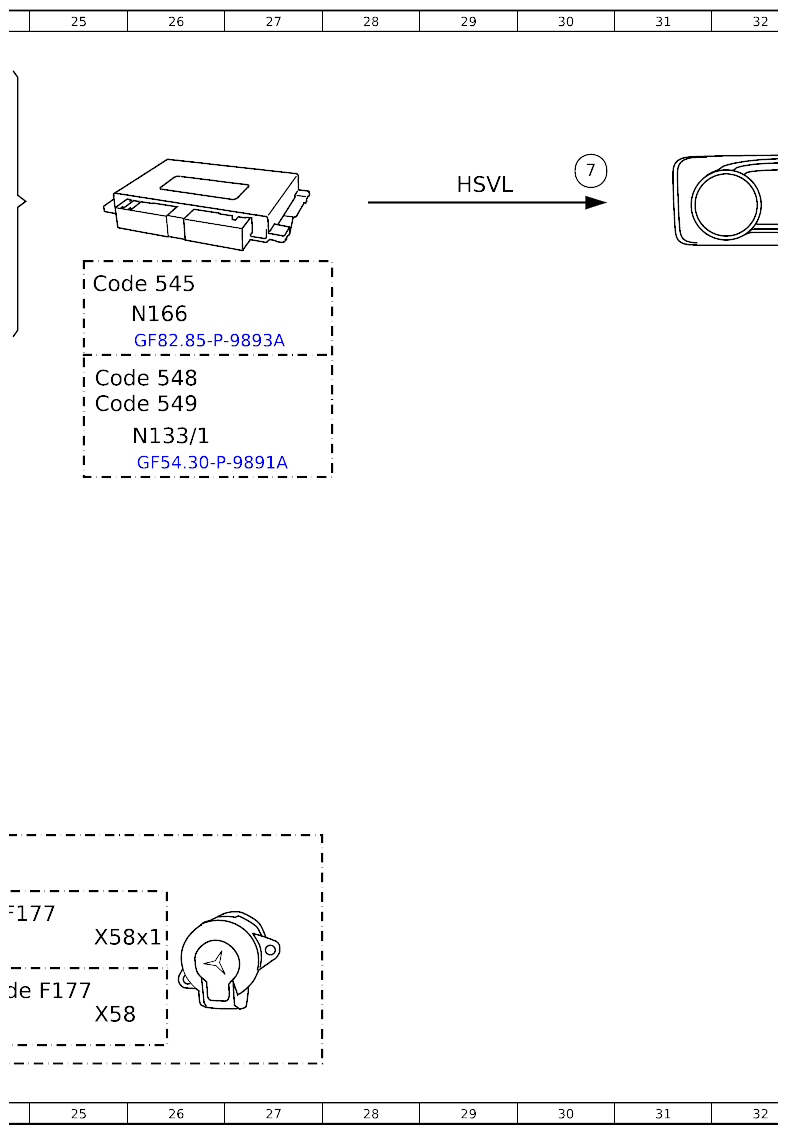

| 7 | Image data, signal | 30B |
