Function Schematic, Actuate High Beams - PE82.10-P-2505-97A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 243, 247
| Code: | Designation: | Position: |
|---|---|---|

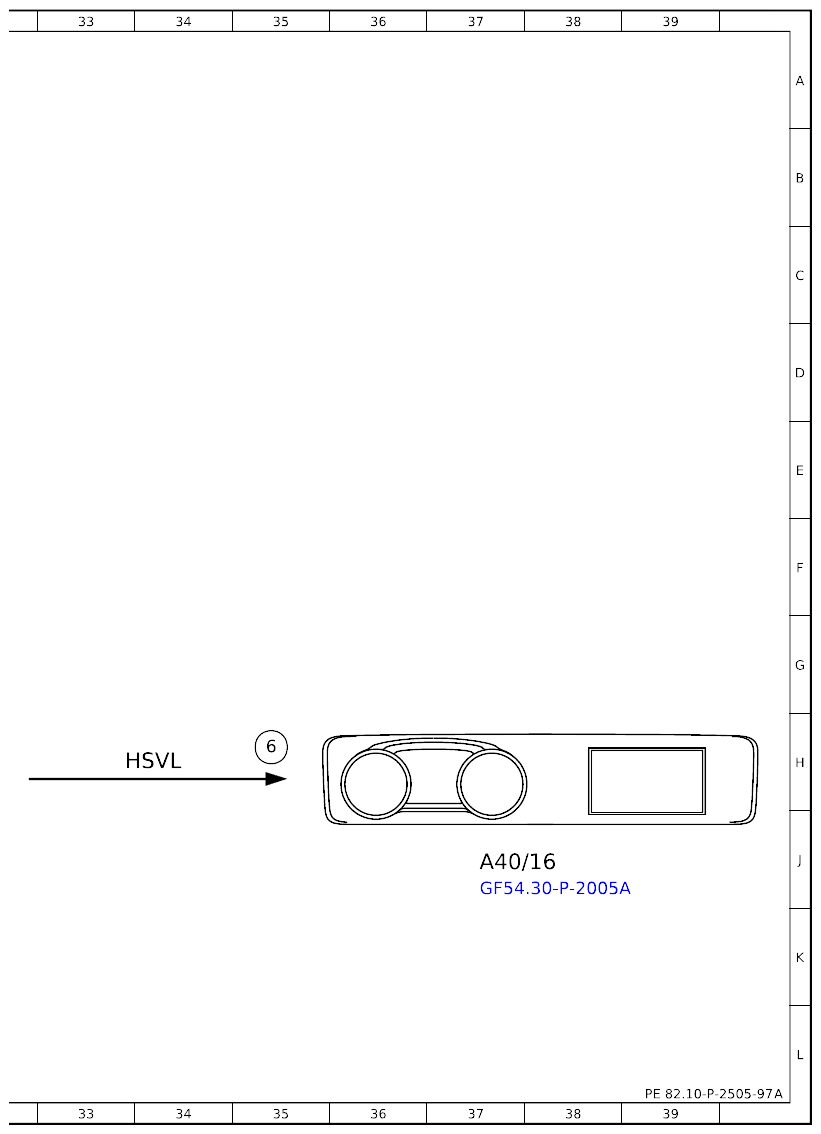

| A40/16 | Head unit/instrument cluster display cluster | 37J |
| Code 545 | Connect 5 (NTG6) | 30J |
| Code 548 | Connect 20 MID (NTG6) | 30K |
| Code 549 | Connect 20 HIGH (NTG6) | 30K |
| Code 631 | Static LED headlamp, left-hand traffic | 20D |
| Code 632 | Static LED headlamp, right-hand traffic | 20D |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 20D |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 24D |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 20E |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 24D |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 20E |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 24D |
| Code F167 | Model series 167 | 15G |
| Code F167 | Model series 167 | 1H |
| Code F167 | Model series 167 | 1F |
| Code F243 | MODEL SERIES 243 | 15F |
| Code F243 | MODEL SERIES 243 | 1H |
| Code F243 | MODEL SERIES 243 | 1G |
| Code F293 | Model series 293 | 15G |

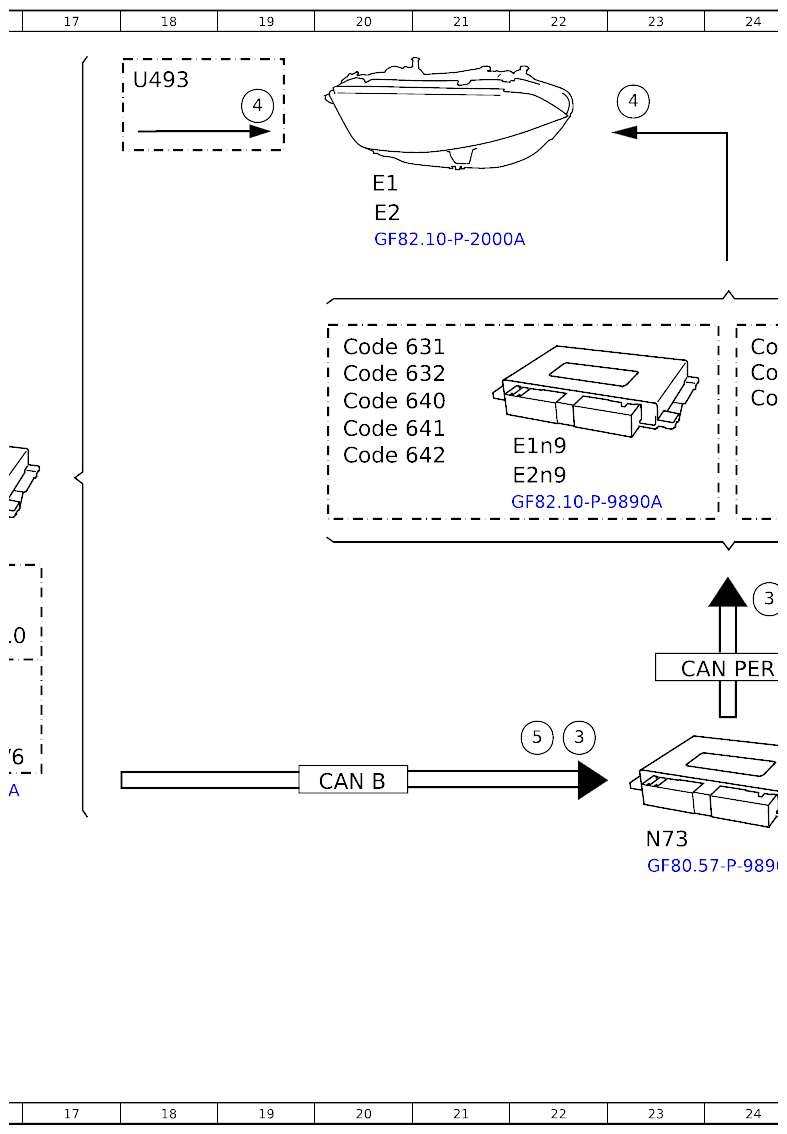

| E1 | Left front lamp unit | 20B |
| E1n9 | Left headlamp control unit | 22E |

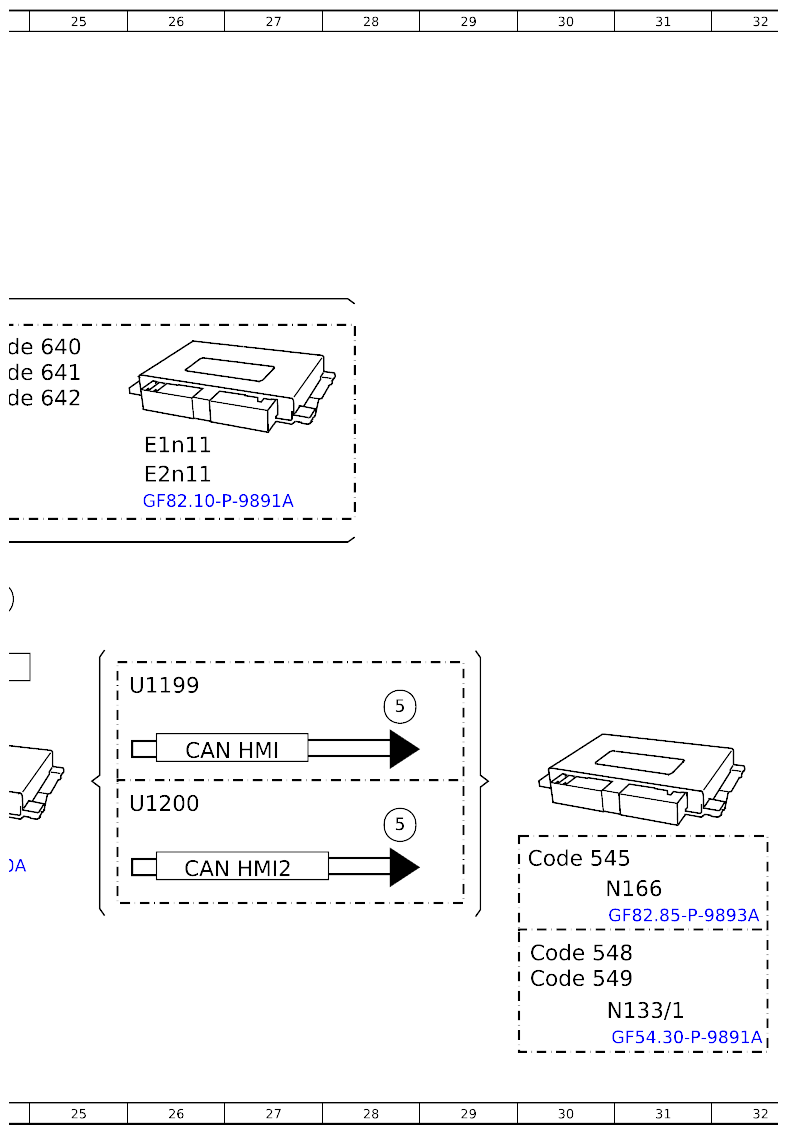

| E1n11 | Left front LED matrix lamp unit control unit | 26E |
| E2 | Right front lamp unit | 20B |
| E2n9 | Right headlamp control unit | 22E |
| E2n11 | Right front LED matrix lamp unit control unit | 26E |
| HSVL | High-speed video link | 34H |
| N10 | Central control module | 16G |
| N10/6 | Front SAM control unit | 16H |
| N73 | EIS [EZS] control unit | 9F |
| N73 | EIS [EZS] control unit | 23J |
| N80 | Steering column module | 4F |
| N133/1 | Instrument cluster control unit | 31L |
| N166 | Head unit/instrument cluster control unit | 31J |

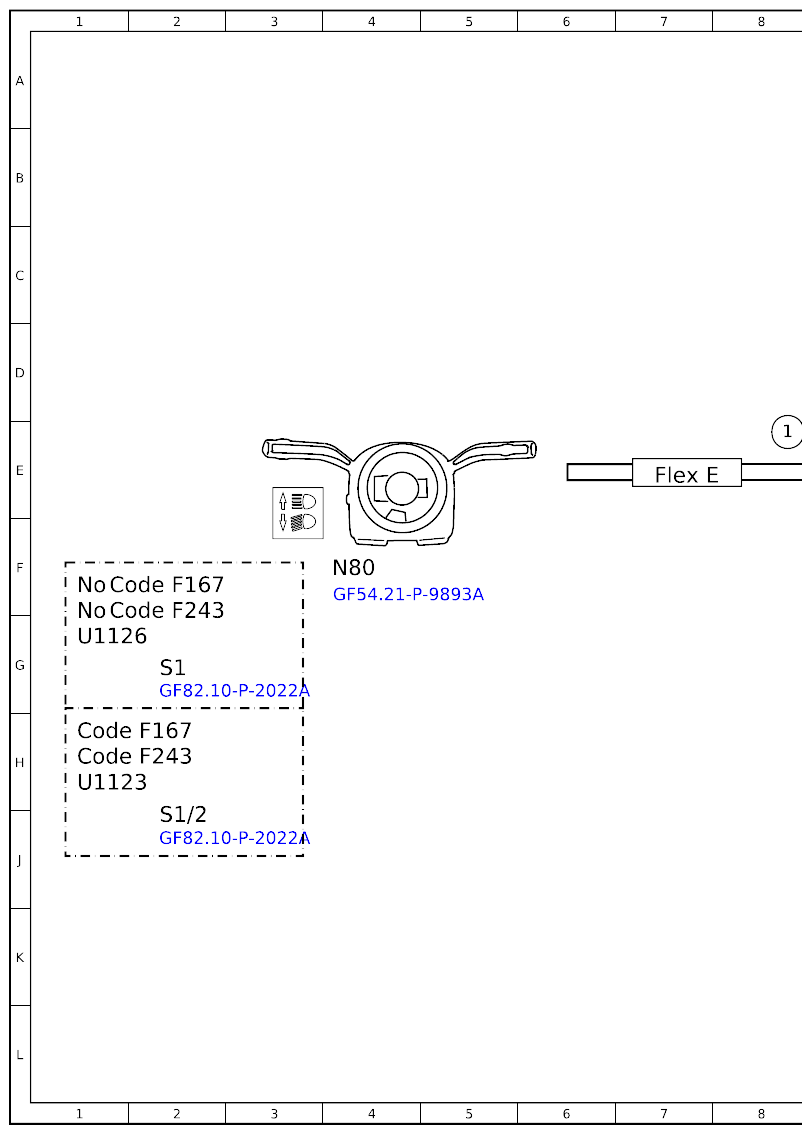

| S1 | Exterior lights switch | 2G |
| S1/2 | Exterior lights and electric parking brake switch group | 2J |
| U1123 | Valid for model 118, 177, 247 | 15G |
| U1123 | Valid for model 118, 177, 247 | 1H |
| U1126 | Valid except model 118, 177, 247 | 1G |
| U1199 | Valid for vehicles up to facelift | 26G |
| U1200 | Valid for vehicles as of facelift | 26J |
| U1235 | Valid for model 213, 238, 257, 290 | 15H |
| U493 | Valid for halogen lamp unit | 18A |
| CAN B | Interior CAN | 20H |
| CAN B | Interior CAN | 13E |
| CAN HMI | User interface CAN | 26H |
| CAN HMI2 | CAN 2 for user interface | 26J |
| CAN PER | CAN for peripherals | 24G |
| Flex E | Chassis FlexRay | 7E |

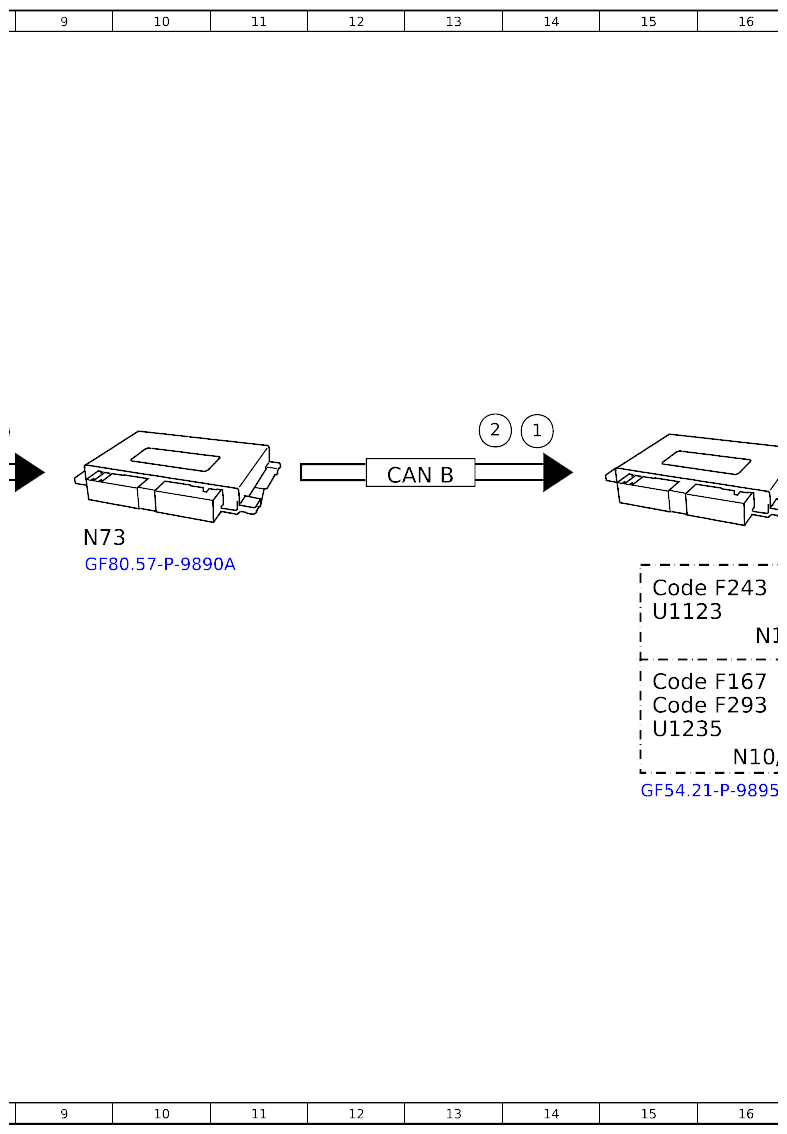

| 1 | Combination switch, status | 8E |
| 1 | Combination switch, status | 14E |
| 2 | Circuit 15, status | 13E |
| 3 | High beams, request | 22H |
| 3 | High beams, request | 24F |
| 4 | High beams, actuation | 19A |
| 4 | High beams, actuation | 23A |
| 5 | Indicator lamp, request | 22H |
| 5 | Indicator lamp, request | 28G |
| 5 | Indicator lamp, request | 28J |
| 6 | Image data, signal | 35H |
