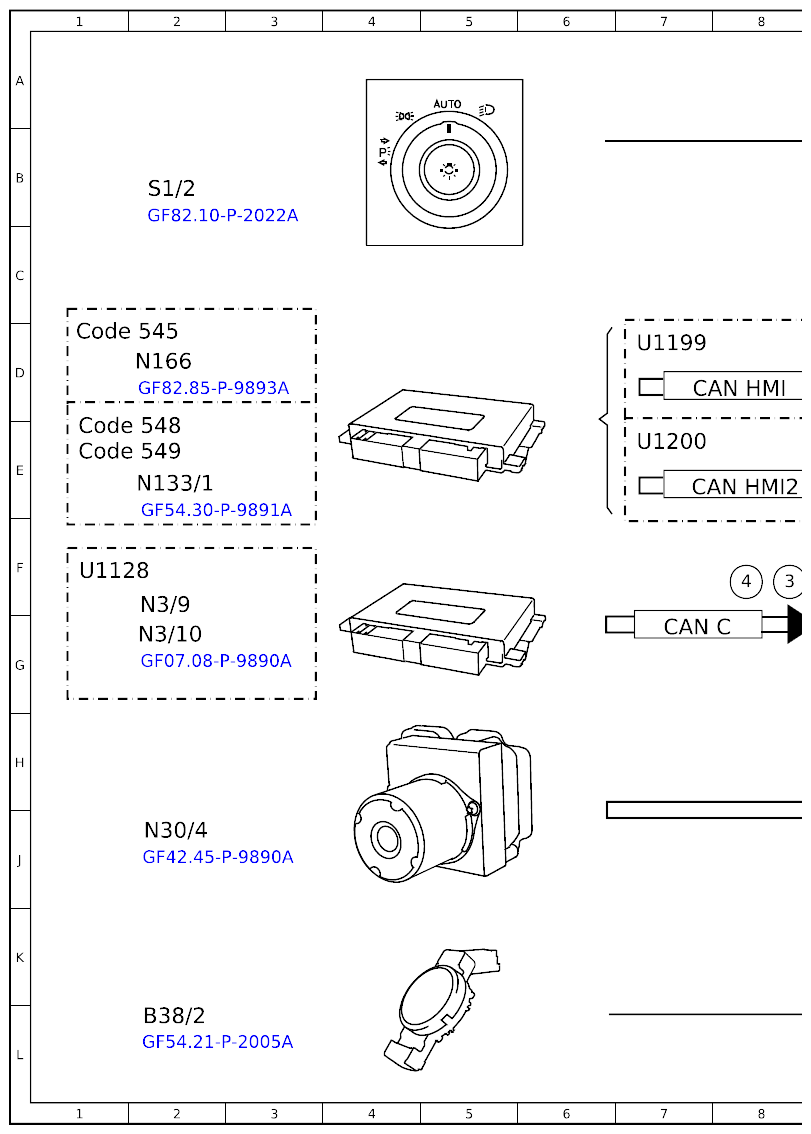

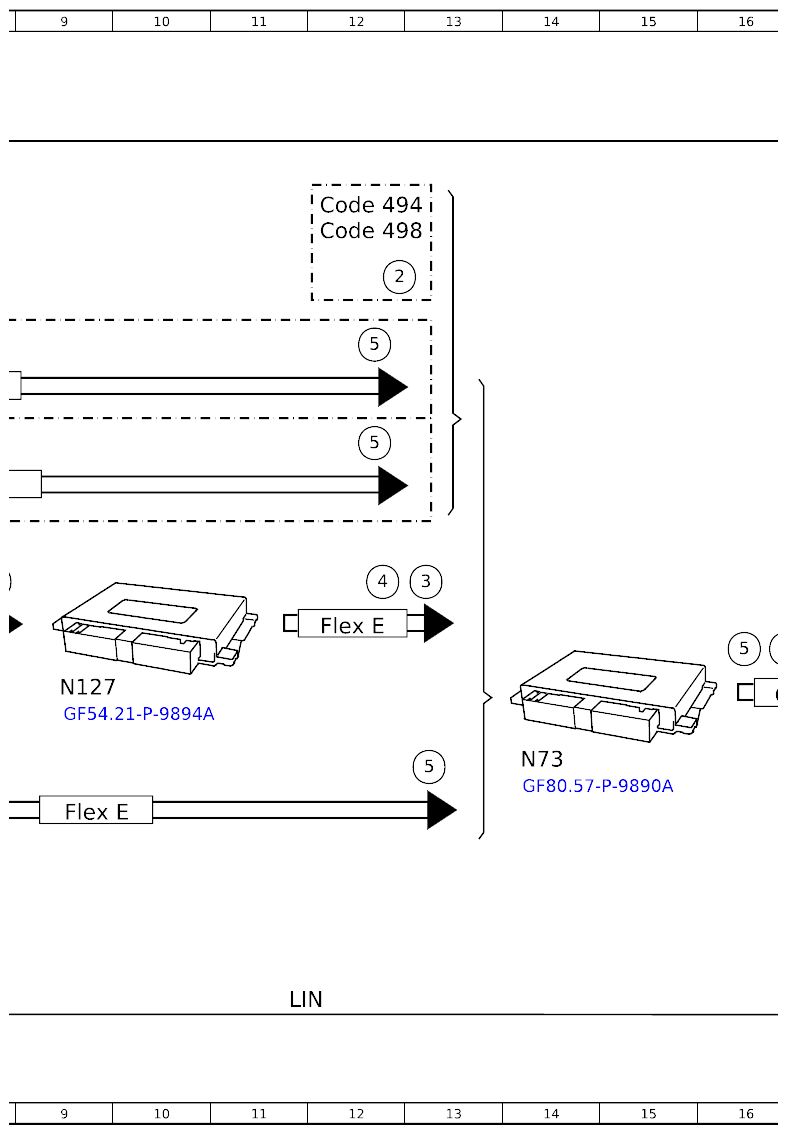

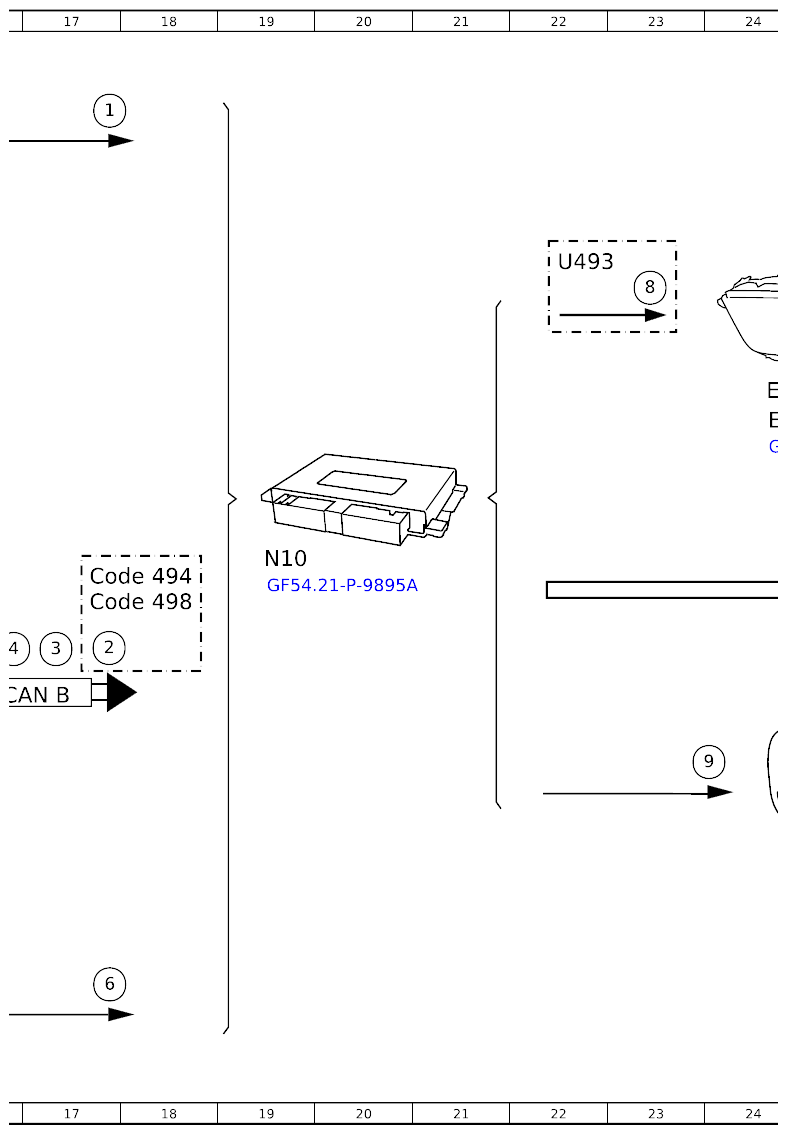

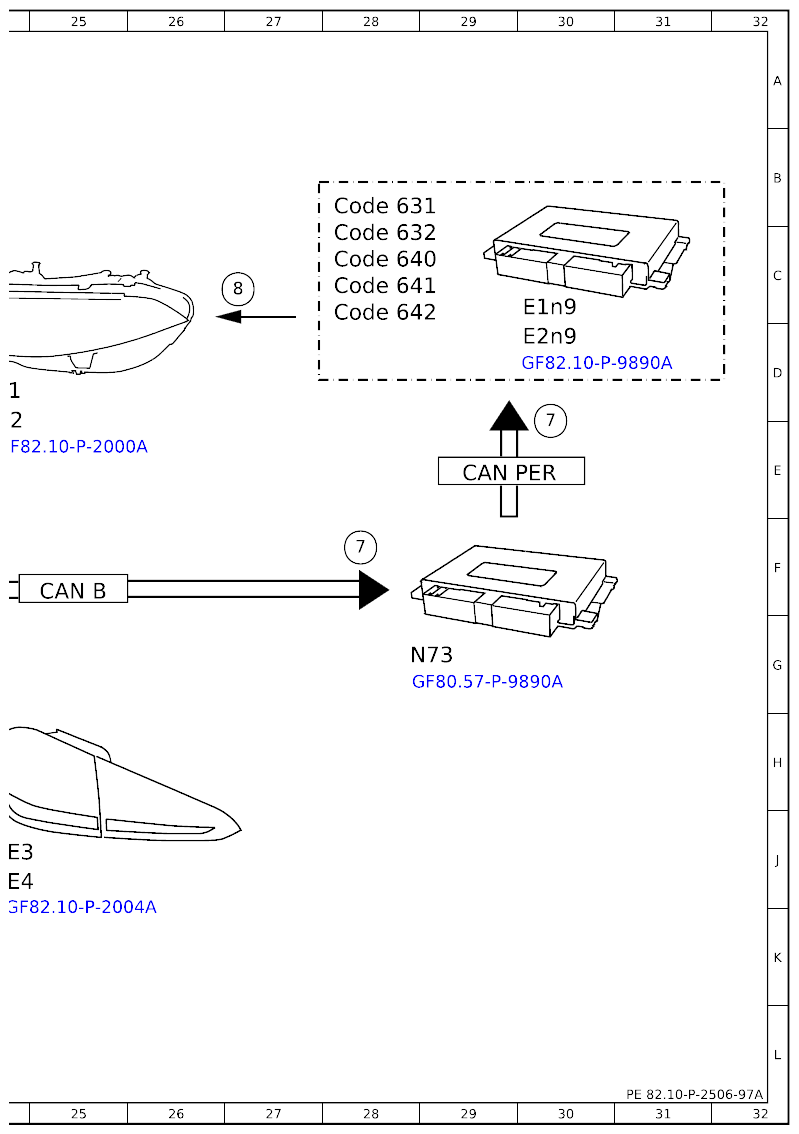

Function Schematic, Actuate Daytime Running Lights - PE82.10-P-2506-97A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 243, 247
| Code: | Designation: | Position: |
|---|---|---|
| B38/2 | Rain/light sensor | 2L |
| Code 494 | USA version | 12B |
| Code 494 | USA version | 17F |
| Code 498 | Japan version | 12C |
| Code 498 | Japan version | 17F |
| Code 545 | Connect 5 (NTG6) | 1D |
| Code 548 | Connect 20 MID (NTG6) | 1E |
| Code 549 | Connect 20 HIGH (NTG6) | 1E |
| Code 631 | Static LED headlamp, left-hand traffic | 28B |
| Code 632 | Static LED headlamp, right-hand traffic | 28C |
| Code 640 | Dynamic LED headlamps, SAE, right-hand traffic | 28C |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 28C |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 28C |
| E1 | Left front lamp unit | 24D |
| E1n9 | Left headlamp control unit | 30C |
| E2 | Right front lamp unit | 24E |
| E2n9 | Right headlamp control unit | 30D |
| E3 | Lefttaillamp | 24J |
| E4 | Right rear lamp unit | 24J |
| N3/9 | CDI control unit | 2F |
| N3/10 | Engine management control unit | 2G |
| N10 | Central control module | 19F |
| N30/4 | Electronic Stability Program (ESP®) control unit | 2J |
| N73 | EIS [EZS] control unit | 14H |
| N73 | EIS [EZS] control unit | 29G |
| N127 | Drivetrain control unit | 9G |
| N133/1 | Instrument cluster control unit | 2E |
| N166 | Head unit/instrument cluster control unit | 2D |
| S1/2 | Exterior lights and electric parking brake switch group | 2B |
| U1128 | Valid for combustion engine | 1F |
| U1199 | Valid for vehicles up to facelift | 7D |
| U1200 | Valid for vehicles as of facelift | 7E |
| U493 | Valid for halogen lamp unit | 22C |
| CAN B | Interior CAN | 25F |
| CAN B | Interior CAN | 17G |
| CAN C | CAN for engine | 7G |
| CAN HMI | User interface CAN | 8D |
| CAN HMI2 | CAN 2 for user interface | 8E |
| CAN PER | CAN for peripherals | 29E |
| Flex E | Chassis FlexRay | 12G |
| Flex E | Chassis FlexRay | 9J |
| LIN | Local Interconnect Network | 11L |
| 1 | Exterior lights switch, status | 17A |
| 2 | Daytime running lights function, status | 12C |
| 2 | Daytime running lights function, status | 17G |
| 3 | Engine running, signal | 13F |
| 3 | Engine running, signal | 17G |
| 3 | Engine running, signal | 8F |
| 4 | Drivetrain operational, signal | 16G |
| 4 | Drivetrain operational, signal | 12F |
| 4 | Drivetrain operational, signal | 8F |
| 5 | Indicator lamp, request | 16G |
| 5 | Indicator lamp, request | 13H |
| 5 | Vehicle speed, signal | 12D |
| 5 | Vehicle speed, signal | 12E |
| 6 | Dusk setting, signal | 17K |
| 7 | Daytime running lights, request | 28F |
| 7 | Daytime running lights, request | 30E |
| 8 | Daytime running lights, actuation | 23C |
| 8 | Daytime running lights, actuation | 27C |
| 9 | Standing and parking lights, actuation | 24H |
