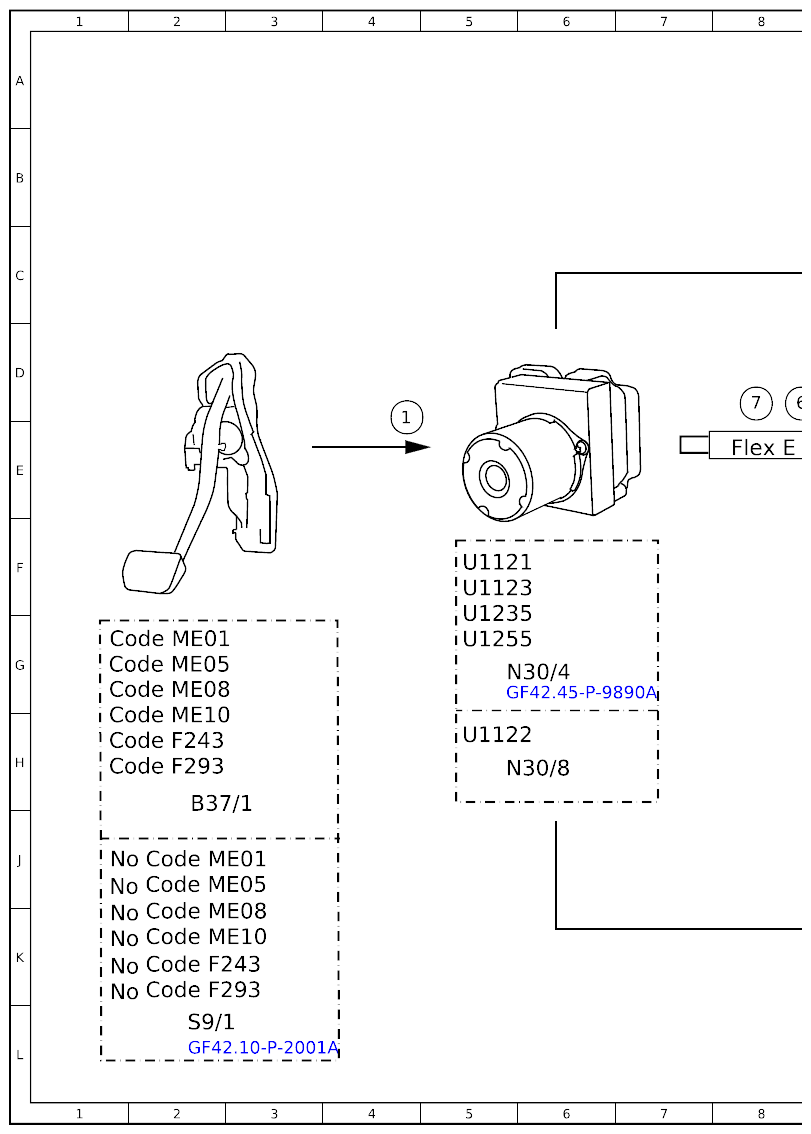

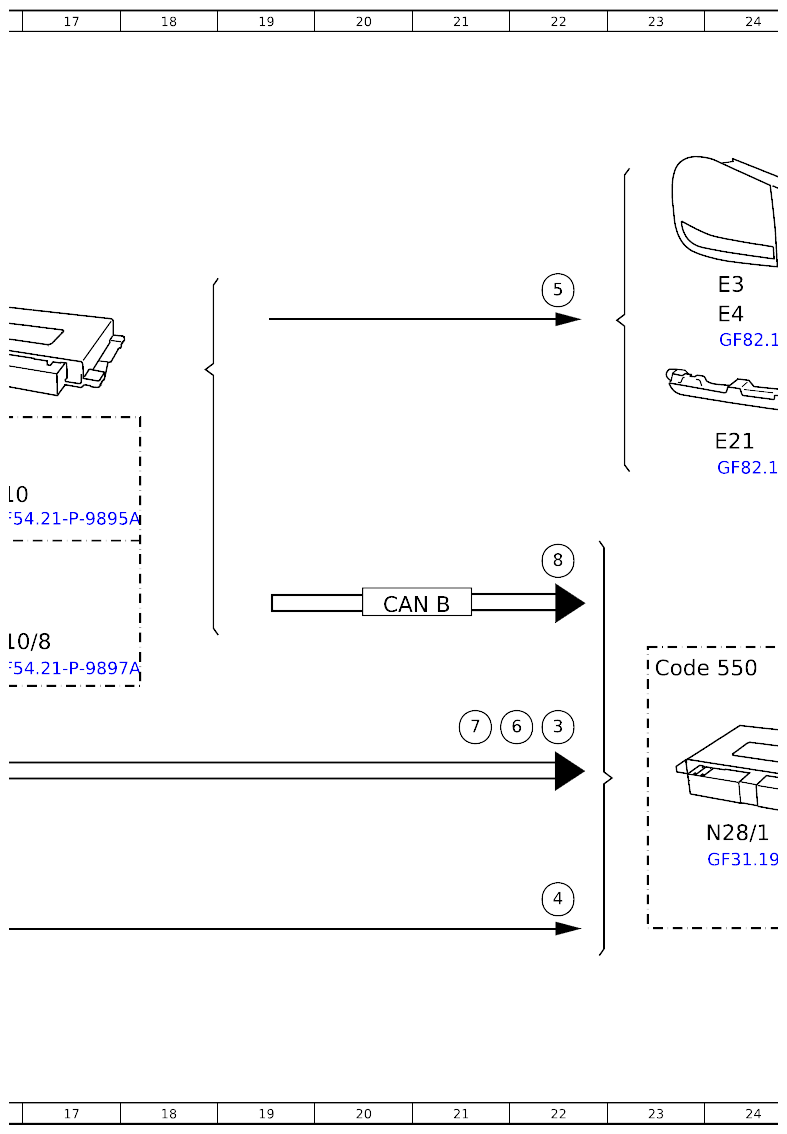

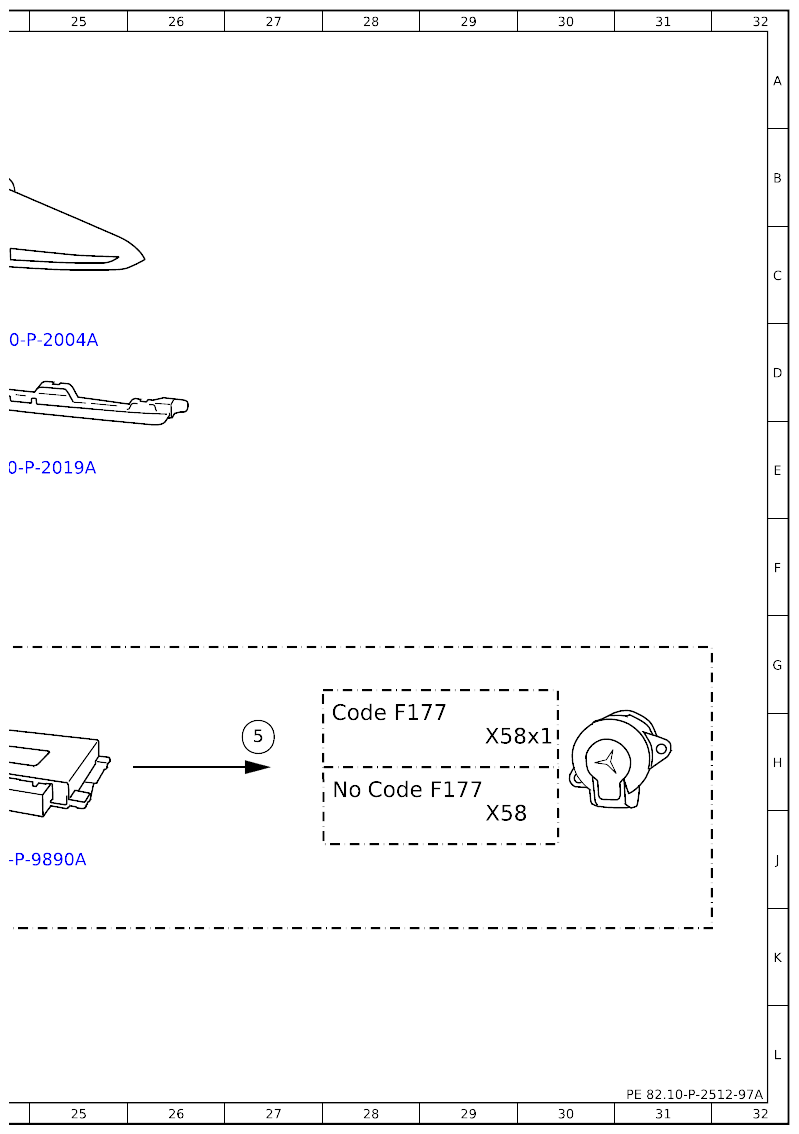

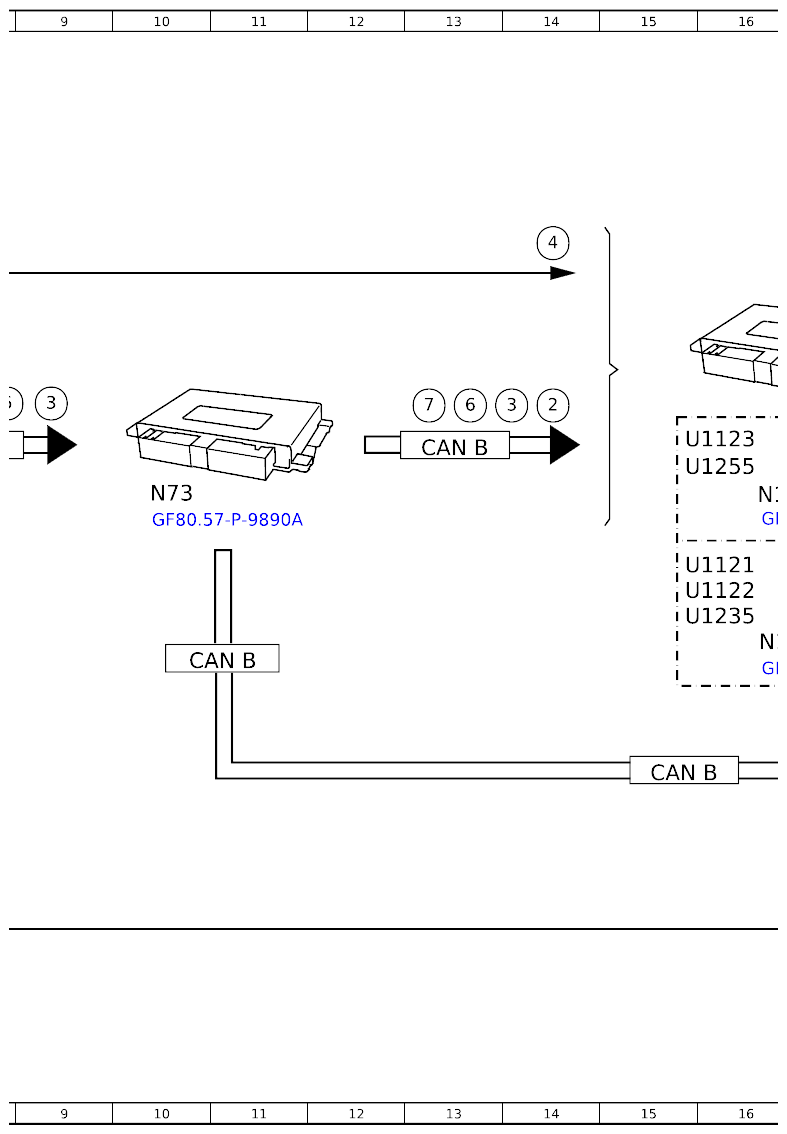

Function Schematic, Actuate Brake Lights - PE82.10-P-2512-97A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 167, 177, 243, 247, 293
Model 213, 238, 257, 290 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| B37/1 | SBC pedal value sensor | 2J |
| Code 550 | Trailer hitch | 23G |
| Code F177 | Model series 177 | 28H |
| Code F177 | Model series 177 | 28H |
| Code F243 | MODEL SERIES 243 | 1H |
| Code F243 | MODEL SERIES 243 | 2K |
| Code F293 | Model series 293 | 1H |
| Code F293 | Model series 293 | 2K |
| Code ME01 | Electric motor | 2J |
| Code ME01 | Electric motor | 1G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 2J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 1G |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 2K |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 1G |
| Code ME10 | Hybrid vehicle | 1H |
| Code ME10 | Hybrid vehicle | 2K |
| E3 | Lefttaillamp | 24C |
| E4 | Right rear lamp unit | 24C |
| E21 | Center high-mounted stop lamp | 24E |
| N10 | Central control module | 16E |
| N10/8 | Rear SAM control unit | 16G |
| N28/1 | Trailer recognition control unit | 24J |
| N30/4 | Electronic Stability Program (ESP®) control unit | 6G |
| N30/8 | Regenerative braking system control unit | 6H |
| N73 | EIS [EZS] control unit | 10E |
| S9/1 | Stop lamp switch | 2L |
| U1121 | Valid for model 167 | 5F |
| U1121 | Valid for model 167 | 15F |
| U1122 | Valid for model 293 | 5H |
| U1122 | Valid for model 293 | 15F |
| U1123 | Valid for model 118, 177, 247 | 5F |
| U1123 | Valid for model 118, 177, 247 | 15E |
| U1235 | Valid for model 213, 238, 257, 290 | 5G |
| U1235 | Valid for model 213, 238, 257, 290 | 15G |
| U1255 | Valid for model 243 | 5G |
| U1255 | Valid for model 243 | 15E |
| X58 | Trailer hitch socket (13-pin) | 29J |
| X58x1 | Trailer socket | 29H |
| CAN B | Interior CAN | 10G |
| CAN B | Interior CAN | 13E |
| CAN B | Interior CAN | 20F |
| CAN B | Interior CAN | 15H |
| Flex E | Chassis FlexRay | 8E |
| 1 | Brake light switch, status | 4E |
| 2 | Circuit 15, status | 14D |
| 3 | Service brake, status | 9D |
| 3 | Service brake, status | 14D |
| 3 | Service brake, status | 22H |
| 4 | Circuit 54, status | 14C |
| 4 | Circuit 54, status | 22J |
| 5 | Brake lights, actuation | 27H |
| 5 | Brake lights, actuation | 22C |
| 6 | Vehicle speed, signal | 8D |
| 6 | Vehicle speed, signal | 22H |
| 6 | Vehicle speed, signal | 13D |
| 7 | Emergency stop, signal | 8D |
| 7 | Emergency stop, signal | 13D |
| 7 | Emergency stop, signal | 21H |
| 8 | Brake light dark phase, signal | 22F |
