Function Schematic, Actuate Automatic High Beams - PE82.10-P-2507-97A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 167, 177, 243, 247 with code 608 (Automatic high beam control (IHC))
Model 118, 167, 177, 247, 293 with code 628 (INTELLIGENT HEADLAMP CONTROL PLUS (IHC+))
Model 213, 238, 257, 290 as of model year 2021 with code 608 (Automatic high beam control (IHC))
Model 213, 238, 257, 290 as of model year 2021 with code 628 (INTELLIGENT HEADLAMP CONTROL PLUS (IHC+))
| Code: | Designation: | Position: |
|---|---|---|
| A26/17 | Head unit | 10E |
| A40/11 | Mono multifunction camera | 6L |
| A40/11 | Mono multifunction camera | 6H |
| A40/13 | Multifunction camera | 6G |
| Code 23P | Driver assistance package | 5J |
| Code 23P | Driver assistance package | 5G |
| Code 51B | EURO-NCAP | 5H |
| Code 51B | EURO-NCAP | 5K |
| Code 243 | Active Lane Keeping Assist | 5K |
| Code 513 | Speed Limit Assist | 5K |
| Code 545 | Connect 5 (NTG6) | 8D |
| Code 547 | Connect 20 Entry (NTG6) | 8D |
| Code 548 | Connect 20 MID (NTG6) | 8E |
| Code 549 | Connect 20 HIGH (NTG6) | 8E |
| Code F167 | Model series 167 | 8B |
| Code F167 | Model series 167 | 1B |
| Code F167 | Model series 167 | 2A |
| Code F213 | Model series 213 | 8K |
| Code F238 | Model series 238 | 8K |
| Code F243 | MODEL SERIES 243 | 43C |
| Code F243 | MODEL SERIES 243 | 8A |
| Code F243 | MODEL SERIES 243 | 51C |
| Code F243 | MODEL SERIES 243 | 1C |
| Code F243 | MODEL SERIES 243 | 2A |
| Code F257 | MODEL SERIES 257 | 8L |
| Code F293 | Model series 293 | 43D |
| Code F293 | Model series 293 | 8C |
| Code F293 | Model series 293 | 8J |
| Code F293 | Model series 293 | 8H |
| Code F293 | Model series 293 | 51D |
| Code F293 | Model series 293 | 9K |
| Code P20 | Driver assistance package PLUS | 5J |
| Code P20 | Driver assistance package PLUS | 5G |

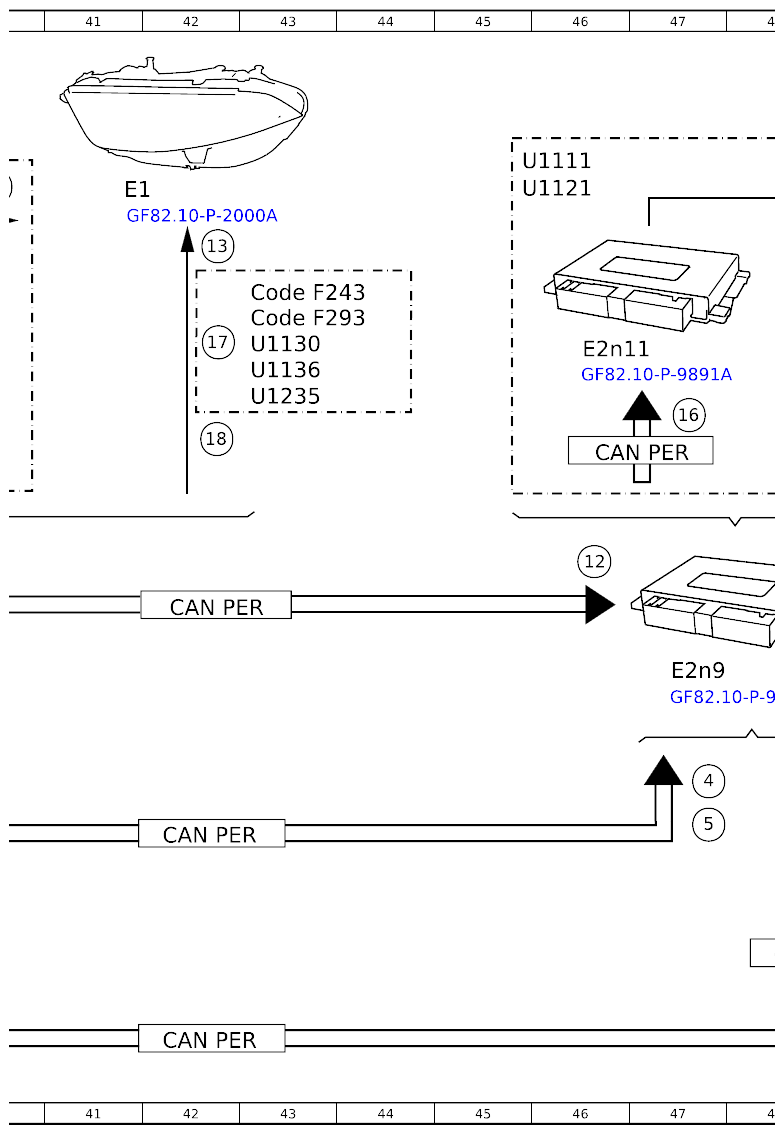

| E1 | Left front lamp unit | 41B |

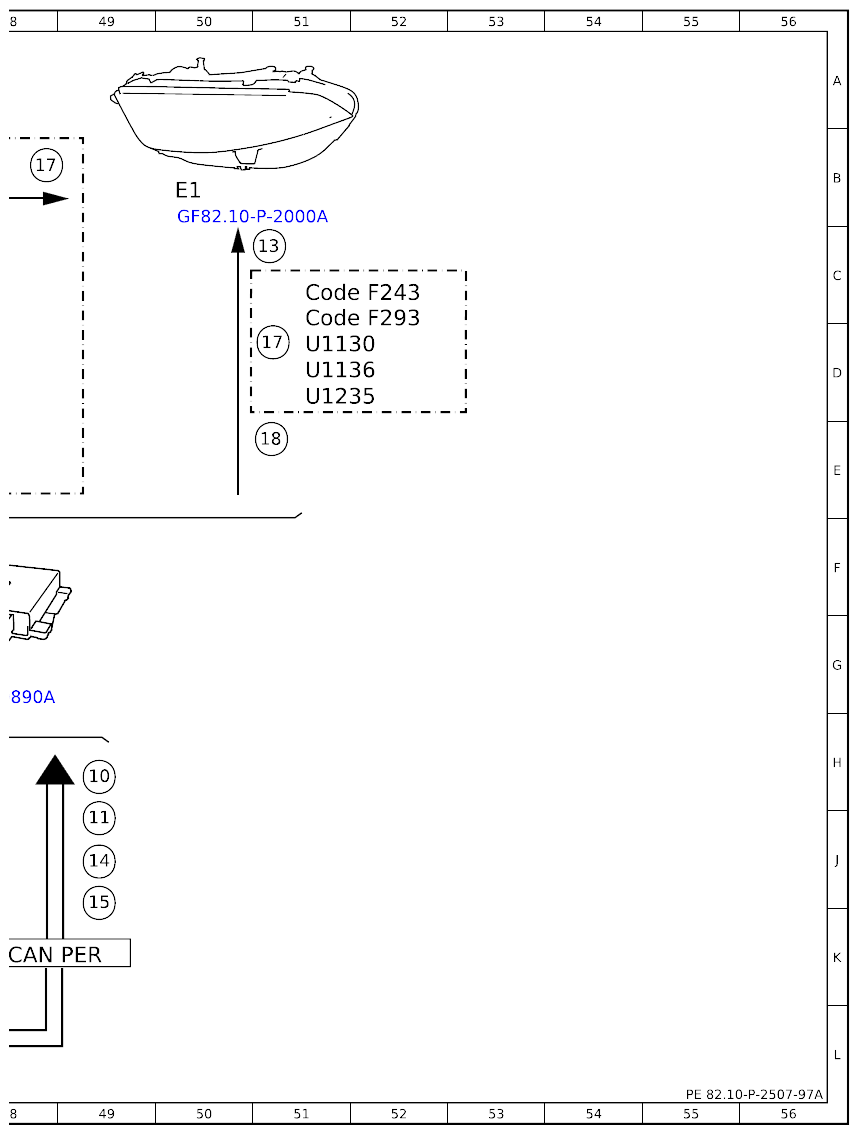

| E1 | Left front lamp unit | 50B |

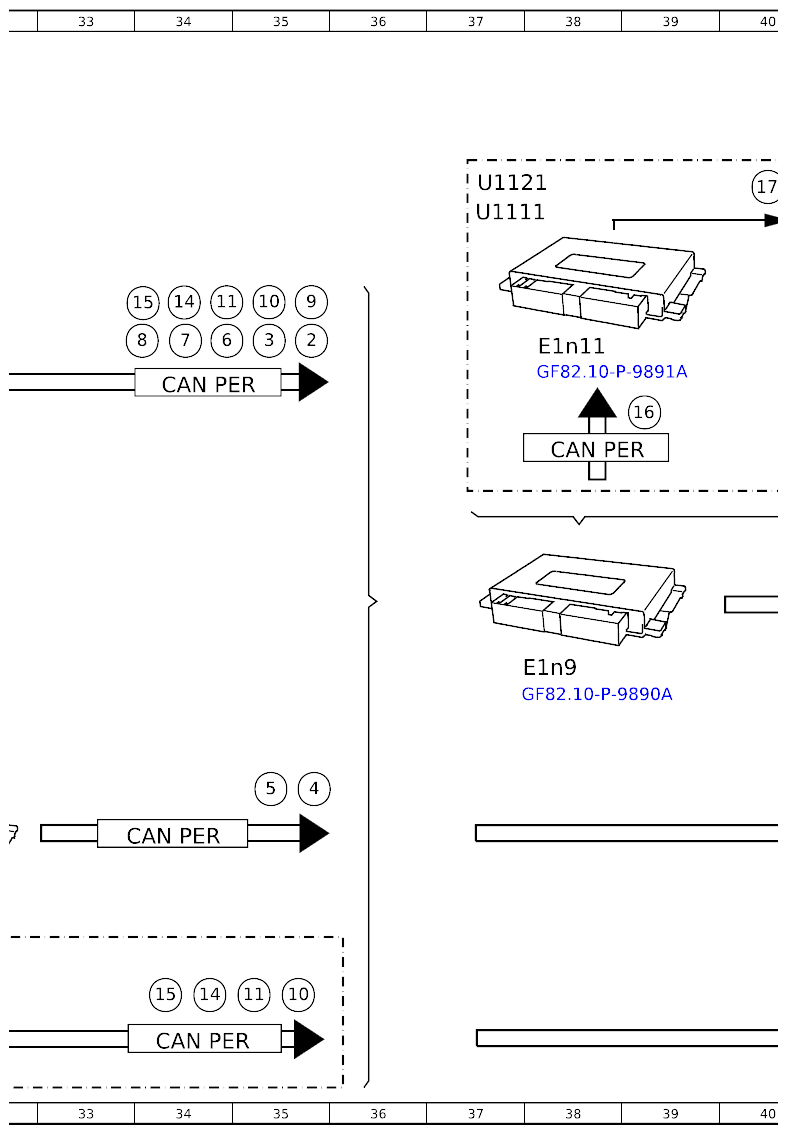

| E1n9 | Left headlamp control unit | 37G |
| E1n11 | Left front LED matrix lamp unit control unit | 38D |
| E2n9 | Right headlamp control unit | 47G |
| E2n11 | Right front LED matrix lamp unit control unit | 46D |
| N3/9 | CDI control unit | 23J |
| N3/10 | Engine management control unit | 23J |

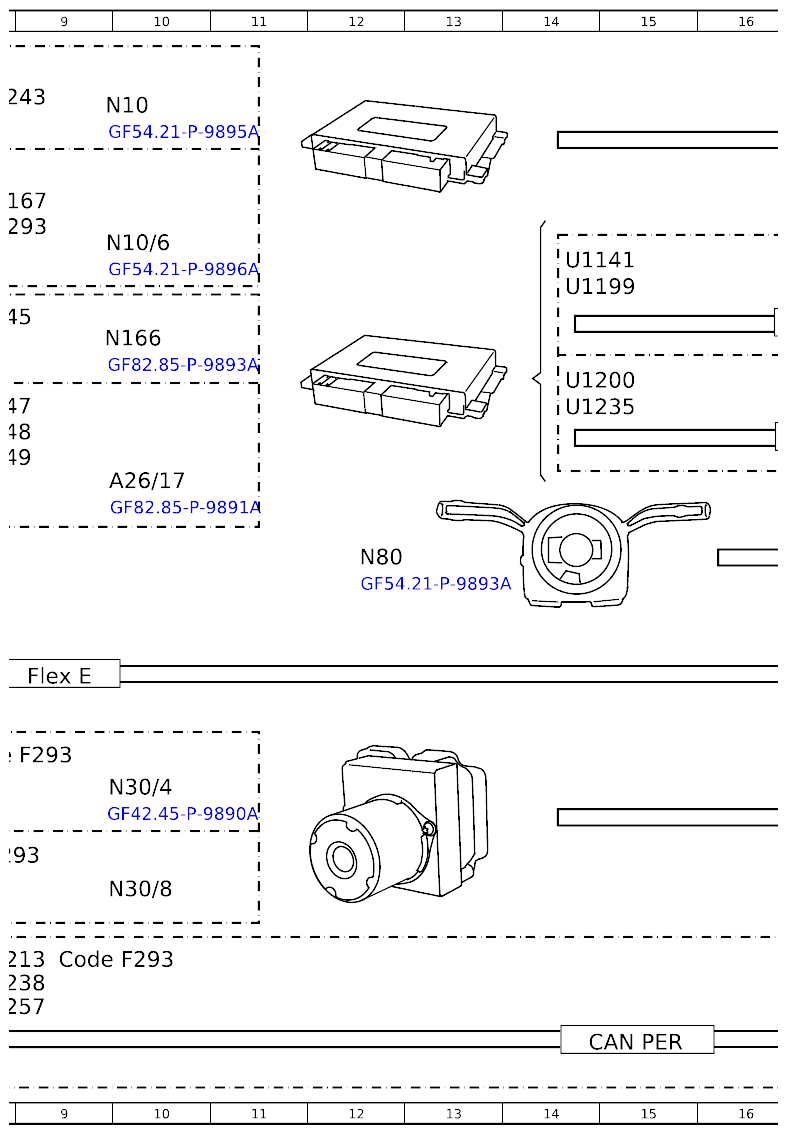

| N10 | Central control module | 10A |
| N10/6 | Front SAM control unit | 10C |
| N30/4 | Electronic Stability Program (ESP®) control unit | 10H |
| N30/8 | Regenerative braking system control unit | 10J |

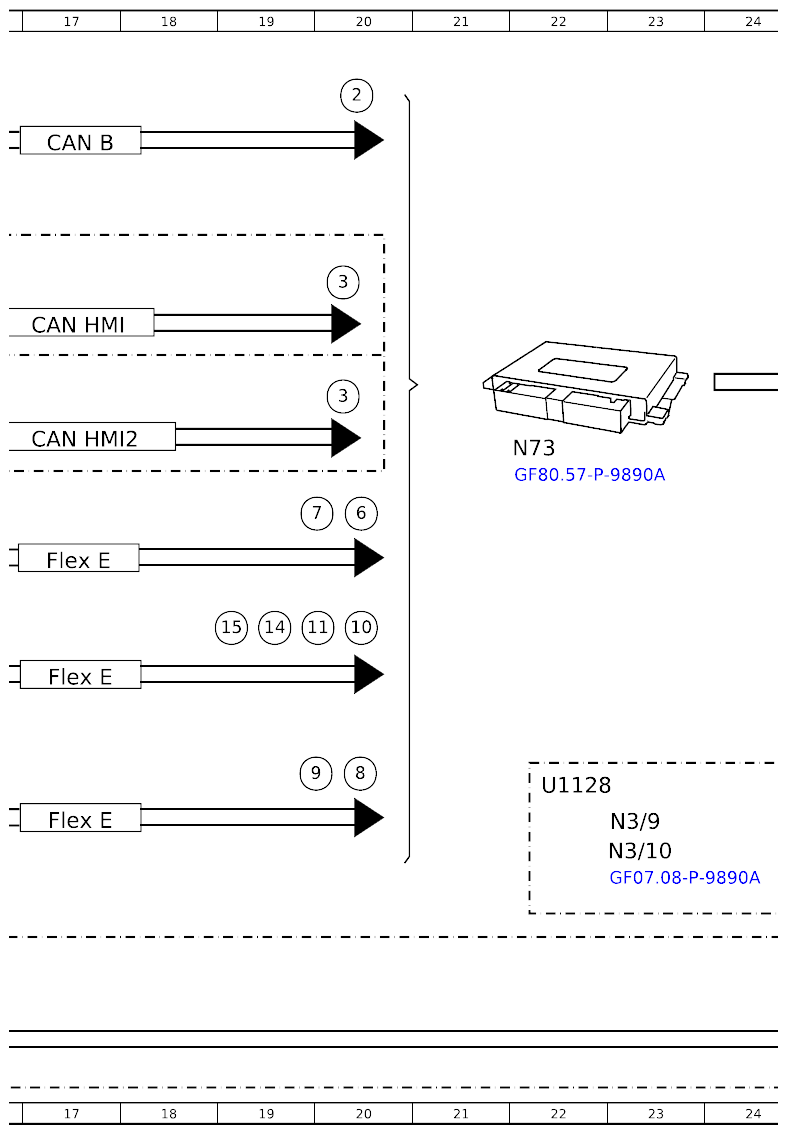

| N73 | EIS [EZS] control unit | 22E |
| N80 | Steering column module | 12F |

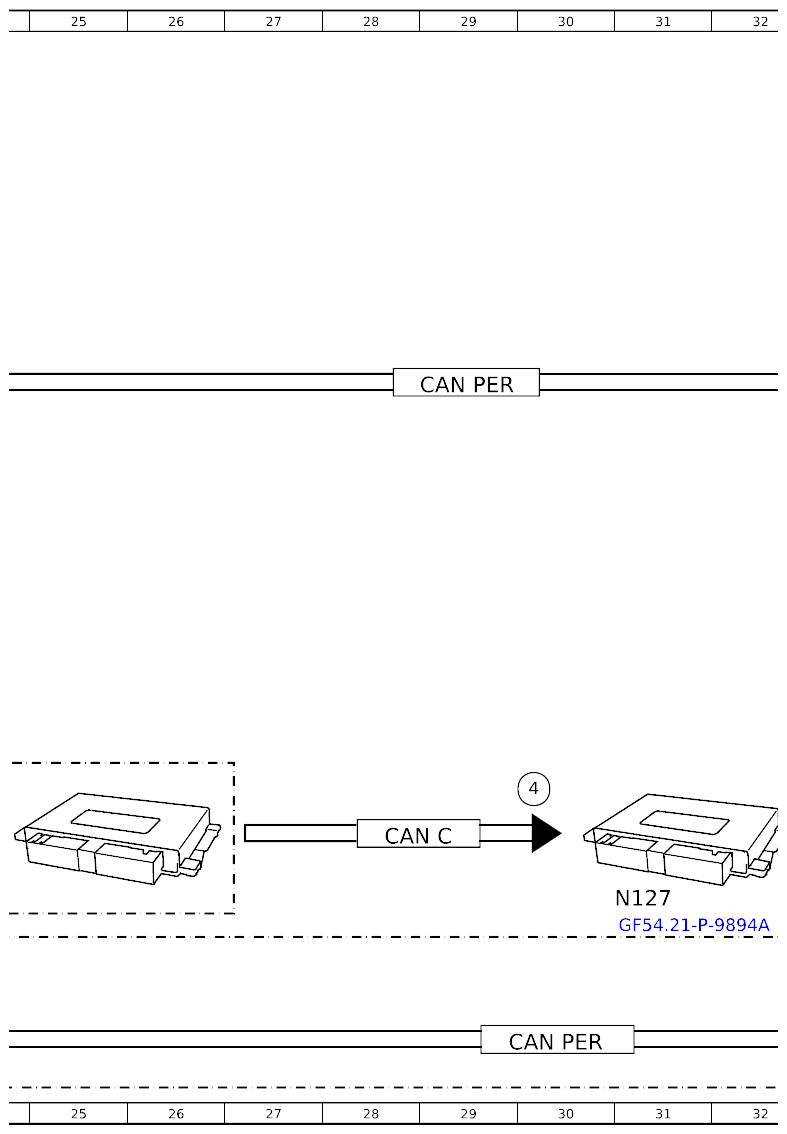

| N127 | Drivetrain control unit | 31J |
| N166 | Head unit/instrument cluster control unit | 10D |

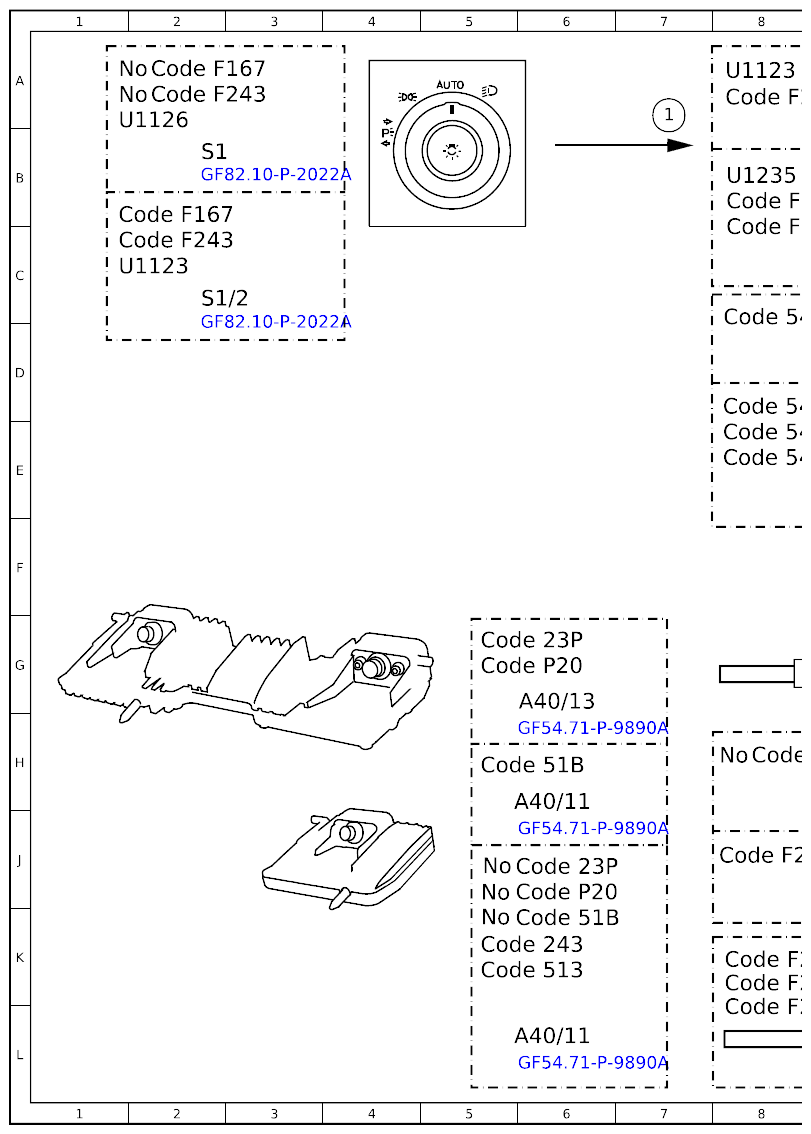

| S1 | Exterior lights switch | 2B |
| S1/2 | Exterior lights and electric parking brake switch group | 2C |
| U1111 | Valid for model 177 | 37B |
| U1111 | Valid for model 177 | 45B |
| U1121 | Valid for model 167 | 37B |
| U1121 | Valid for model 167 | 45B |
| U1123 | Valid for model 118, 177, 247 | 8A |
| U1123 | Valid for model 118, 177, 247 | 1C |
| U1126 | Valid except model 118, 177, 247 | 1A |
| U1128 | Valid for combustion engine | 22H |
| U1130 | Valid for model 247 | 43D |
| U1130 | Valid for model 247 | 51D |
| U1136 | Valid for model 118 | 43D |
| U1136 | Valid for model 118 | 51D |
| U1141 | Valid except model 213, 238, 257, 290 | 14C |
| U1199 | Valid for vehicles up to facelift | 14C |
| U1200 | Valid for vehicles as of facelift | 14D |
| U1235 | Valid for model 213, 238, 257, 290 | 43D |
| U1235 | Valid for model 213, 238, 257, 290 | 8B |
| U1235 | Valid for model 213, 238, 257, 290 | 51D |
| U1235 | Valid for model 213, 238, 257, 290 | 14D |
| CAN B | Interior CAN | 17B |
| CAN C | CAN for engine | 28J |
| CAN HMI | User interface CAN | 17D |
| CAN HMI2 | CAN 2 for user interface | 17E |
| CAN PER | CAN for peripherals | 15L |
| CAN PER | CAN for peripherals | 30L |
| CAN PER | CAN for peripherals | 29D |
| CAN PER | CAN for peripherals | 34L |
| CAN PER | CAN for peripherals | 42L |
| CAN PER | CAN for peripherals | 34J |
| CAN PER | CAN for peripherals | 42J |
| CAN PER | CAN for peripherals | 48K |
| CAN PER | CAN for peripherals | 34D |
| CAN PER | CAN for peripherals | 38E |
| CAN PER | CAN for peripherals | 42F |
| CAN PER | CAN for peripherals | 46E |
| Flex E | Chassis FlexRay | 17F |
| Flex E | Chassis FlexRay | 9G |
| Flex E | Chassis FlexRay | 17J |
| Flex E | Chassis FlexRay | 17G |
| 1 | Exterior lights switch, status | 7A |
| 2 | Low beams, request | 20A |
| 2 | Low beams, request | 35D |
| 3 | Variable light distribution function, status | 35D |
| 3 | Variable light distribution function, status | 20D |
| 3 | Variable light distribution function, status | 20C |
| 4 | Engine running, signal | 30H |
| 4 | Engine running, signal | 35H |
| 4 | Engine running, signal | 47H |
| 5 | Drivetrain operational, signal | 35H |
| 5 | Drivetrain operational, signal | 47J |
| 6 | Combination switch, status | 20F |
| 6 | Combination switch, status | 34D |
| 7 | Steering angle, signal | 19F |
| 7 | Steering angle, signal | 34D |
| 8 | Wheel speed, signal | 20H |
| 8 | Wheel speed, signal | 34D |
| 9 | Speed, turn rate and lateral acceleration, signal | 19H |
| 9 | Speed, turn rate and lateral acceleration, signal | 35C |
| 10 | Ambient information, data | 20G |
| 10 | Ambient information, data | 35K |
| 10 | Ambient information, data | 49H |
| 10 | Ambient information, data | 35C |
| 11 | Optical headlamp range adjustment, request | 19G |
| 11 | Optical headlamp range adjustment, request | 35K |
| 11 | Optical headlamp range adjustment, request | 49J |
| 11 | Optical headlamp range adjustment, request | 34C |
| 12 | Synchronization, signal | 46F |
| 13 | Headlamp range adjustment actuator motor, actuation | 42C |
| 13 | Headlamp range adjustment actuator motor, actuation | 51C |
| 14 | High beams, request | 19G |
| 14 | High beams, request | 34K |
| 14 | High beams, request | 34C |
| 14 | High beams, request | 49J |
| 15 | Object information, data package | 19G |
| 15 | Object information, data package | 34K |
| 15 | Object information, data package | 49J |
| 15 | Object information, data package | 34C |
| 16 | High beams light distribution, request | 39D |
| 16 | High beams light distribution, request | 47D |
| 17 | Adaptive high beam, actuation | 42D |
| 17 | Adaptive high beam, actuation | 40B |
| 17 | Adaptive high beam, actuation | 48B |
| 17 | Adaptive high beam, actuation | 51D |
| 18 | High beams, actuation | 42E |
| 18 | High beams, actuation | 51E |
