Remove/Install Left Rear Seat Belt Buckle - AR91.40-P-1526MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 243.6/7, 247

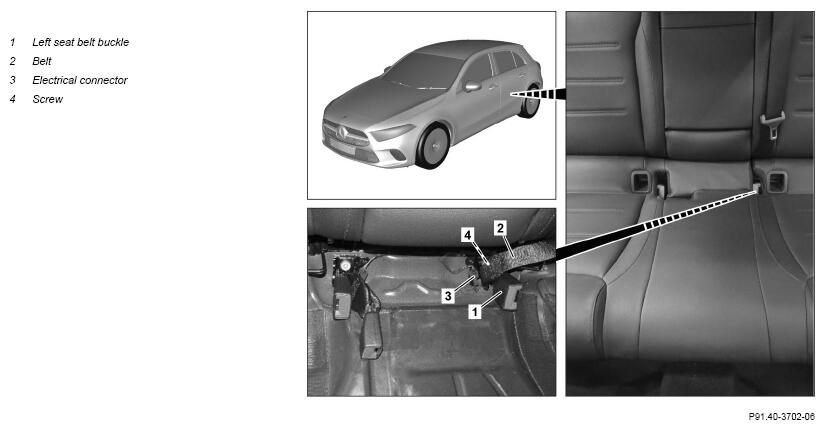

Shown on model 177 with code U01 (Rear seat belt status display in instrument cluster)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove rear seat cushion. | Model 243.6 | AR91.12-P-1021EQB |
| Model 118, 177, 243.7, 247 | AR91.12-P-1021MFA | ||
| 2 | Release and disconnect electrical connector (3). | Model 118, 177, 243.6/7, 247 with code U01 (Rear belt status indicator) |
|
| 3 | Unscrew screw (4). | *BA91.40-P-1006-01X | |
| 4 | Remove left seat belt buckle (1). | ||
| 5 | Install in the reverse order. |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 118 | Model 177 | |
|---|---|---|---|---|
| BA91.40-P-1006-01X | Screw/nut, seat belt end fitting/rear seat belt buckle to body | Nm | 35 | 35 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 243 | Model 247 | |
|---|---|---|---|---|
| BA91.40-P-1006-01X | Screw/nut, seat belt end fitting/rear seat belt buckle to body | Nm | 35 | 35 |
