Remove/Install Cover On Front Seat Cushion - AR91.18-P-1801MFA
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118, 177, 247
except code 555 (AMMG-Performance Seat)
except code U10 (Front passenger seat with weight sensor)
Model 243
except code U10 (Front passenger seat with weight sensor)

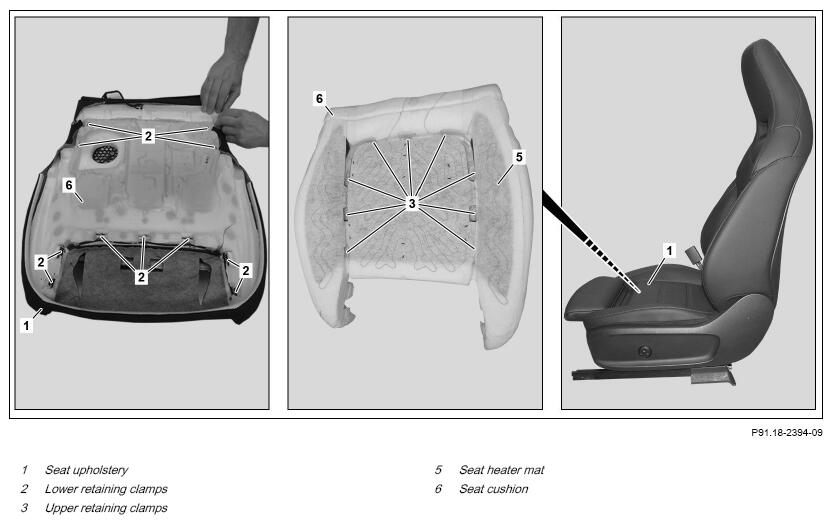

Shown on driver's seat model 7U3 with code 873 (Seat heating for driver and front passenger)
| Remove/install | |||
| 1 | Remove seat cushion (6). | AR91.10-P-3310MFA | |
| 2 | Separate lower retaining clamps (2) and remove remaining pieces from seat cushion | ||
| Fig 1 | |||
| 3 | Detach seat cover (1) at side from seat cushion (6) until upper retaining clamps (3) are accessible. | ||
| 4 | Separate upper retaining clamps (3) and remove remaining pieces from seat cushion (6). | Otherwise the seat cushion (6) and the seat cover (1) will be damaged. |
|
| Fig 1 | |||
| 5.1 | Remove seat cover (1) from seat cushion (6). | Model 118, 177, 247 except code 555 (AMG-Performance Seat) except code 873 (Left and right driver's seat heating) except code U10 (Front passenger seat with weight sensor) Model 243 except code 873 (Left and right driver's seat heating) except code U10 (Front passenger seat with weight sensor) |
|
| 5.2 | Remove seat cover (1) from seat cushion (6) and seat heater mat (5). | Model 118, 177, 247 with code 873 (Left and right driver's seat heating) except code 555 (AMG-Performance Seat) except code U10 (Front passenger seat with weight sensor) Model 243 with code 873 (Left and right driver's seat heating) except code U10 (Front passenger seat with weight sensor) |
|
If the seat cushion (6) or the seat heater mat (5) is damaged, ↓ Replace seat cushion (6) and seat heater mat (5). |
|||
| 6 | Install in the reverse order. |
